8000 SERIES OPERATION MANUAL
TRANSMILLE LTD. Page 57

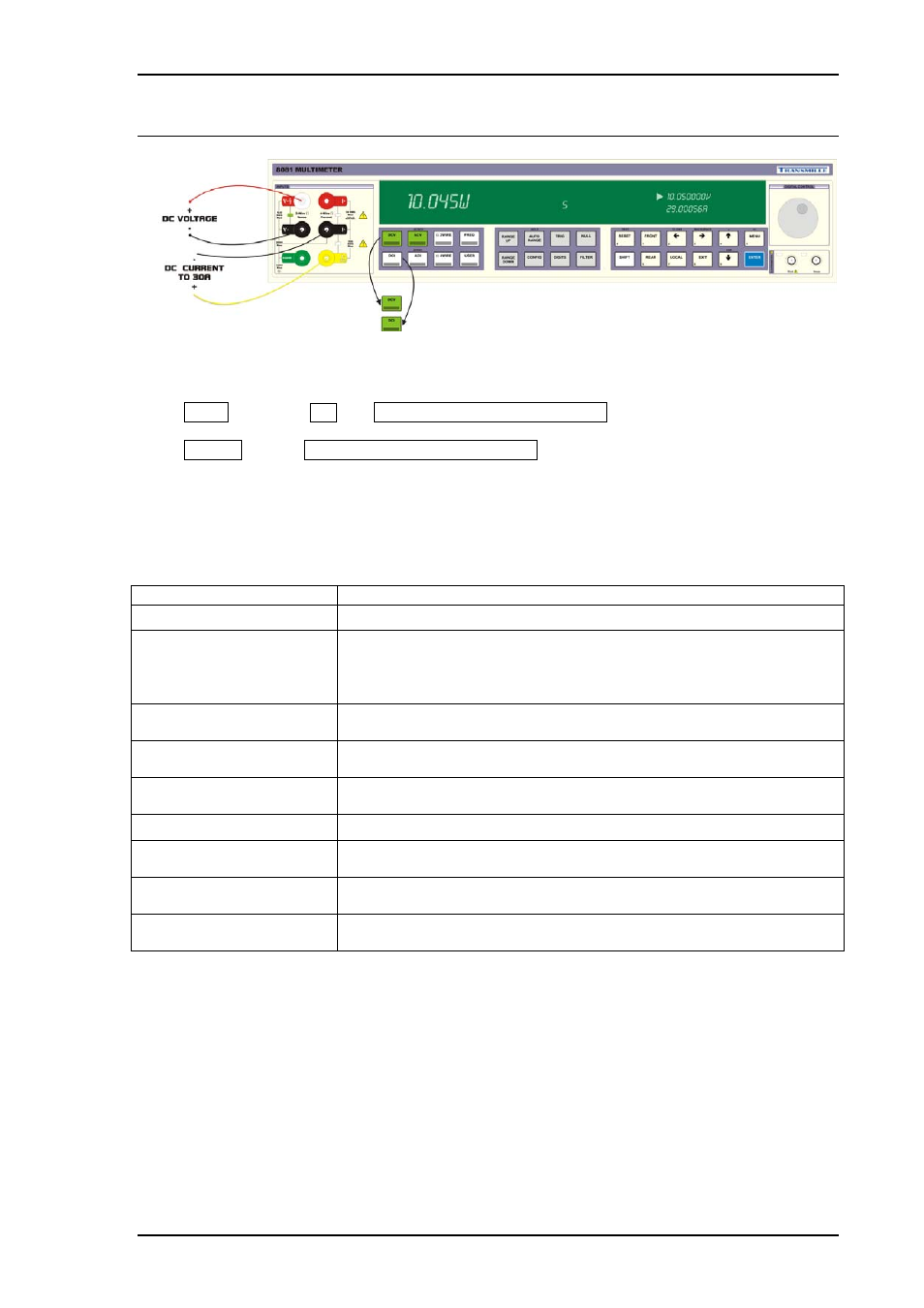

DC Power / Dual Input V/30A (Option)
The DC Power / Dual Input V/30A function allows the 8000 Series to automatically switch between
the voltage and current inputs and display a calculated value in Watts.
Press USER then press
Ä until DC POWER DUAL INPUT V/30A is displayed
Press ENTER to select DC POWER DUAL INPUT V/30A
The 8000 Series will automatically switch between the Voltage and High Current Terminals,
separately measuring both inputs and displaying a calculated value in Watts on the main display.
The secondary display can be used to display the separate Voltage and Current readings by using
the menu dial to scroll to this display.
Additional Settings Description
DIGITS Set measurement resolution
FILTER TIME
Set FILTER TIME :
250ms to 64s
Dynamic Mode for Automatic filter setting
based on measurement stability
ANALOGUE FILTER
Set ANALOGUE FILTER mode :
ON / OFF
INPUT TERMINALS
Set INPUT TERMINALS to use :
FRONT / REAR
READING MIN / MAX
Display READING MIN / MAX measurement data
for the selected function / range
TRIGGER AUTO / MANUAL
GUARD TO LOW
Set GUARD TO LOW mode :
FLOATING / SIGNAL LOW
VOLTAGE / CURRENT
DISPLAY
Displays the measured Voltage and Current separately as well as
the calculated Watts on the main display
INTERNAL
TEMPERATURE
Displays the internal temperature
