8000 SERIES OPERATION MANUAL
TRANSMILLE LTD. Page 42
DC Current (Electrometer Mode) (Option)

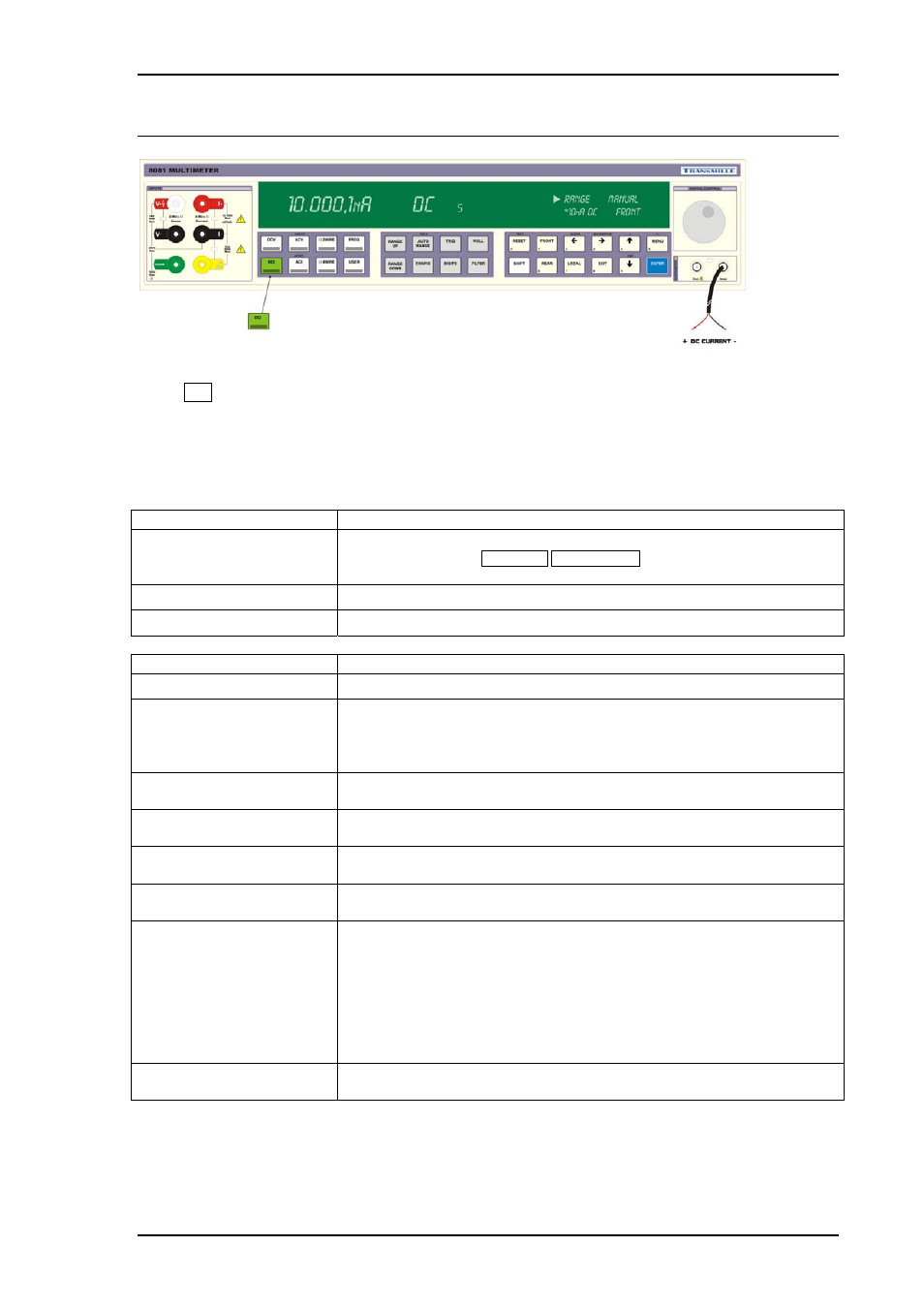

Press DCI to enter the DCI measurement mode – the status display will indicate the settings and
range information.
Selecting ranges 10nA , 100nA, 1uA, 10uA will activate the electrometer mode. Inputs are measured
from the IMeas BNC terminal on the right hand side of the multimeter. An LED indicates the BNC
terminal set is active.
Status Display Section Description
X RANGE
eg. *10mA DC
Display / Selection of DC Current range –
Use menu dial or RANGE UP RANGE DOWN buttons to change range.
Selected range indicated by a *
MANUAL Ranging mode : AUTO or MANUAL
FRONT FRONT or REAR terminals in use (Rear to 1A Max.)
Additional Settings Description
DIGITS Set measurement resolution
FILTER TIME
Set FILTER TIME :
250ms to 64s
Dynamic Mode for Automatic filter setting
based on measurement stability
ANALOGUE FILTER
Set ANALOGUE FILTER mode :
ON / OFF
READING MIN / MAX
Display READING MIN / MAX measurement data
for the selected function / range
TRIGGER
TRIGGER mode :
AUTO / MANUAL
GUARD TO LOW
Set GUARD TO LOW mode :
FLOATING / SIGNAL LOW
MATHS, NULL, dB
Set NULL : Store zero offset value
Clear NULL : Clear zero offset value
Set OFFSET : Add a user entered value to the measurement
Set SCALE : Multiply measurement by a user entered value
Clear FORMULA : Clear the formula entered (SCALE & OFFSET)
See dB function for use of Set dB, dB SET ZERO & dBm REF 600 Ohms
INTERNAL
TEMPERATURE
Displays the internal temperature
