8000 SERIES OPERATION MANUAL
TRANSMILLE LTD. Page 11

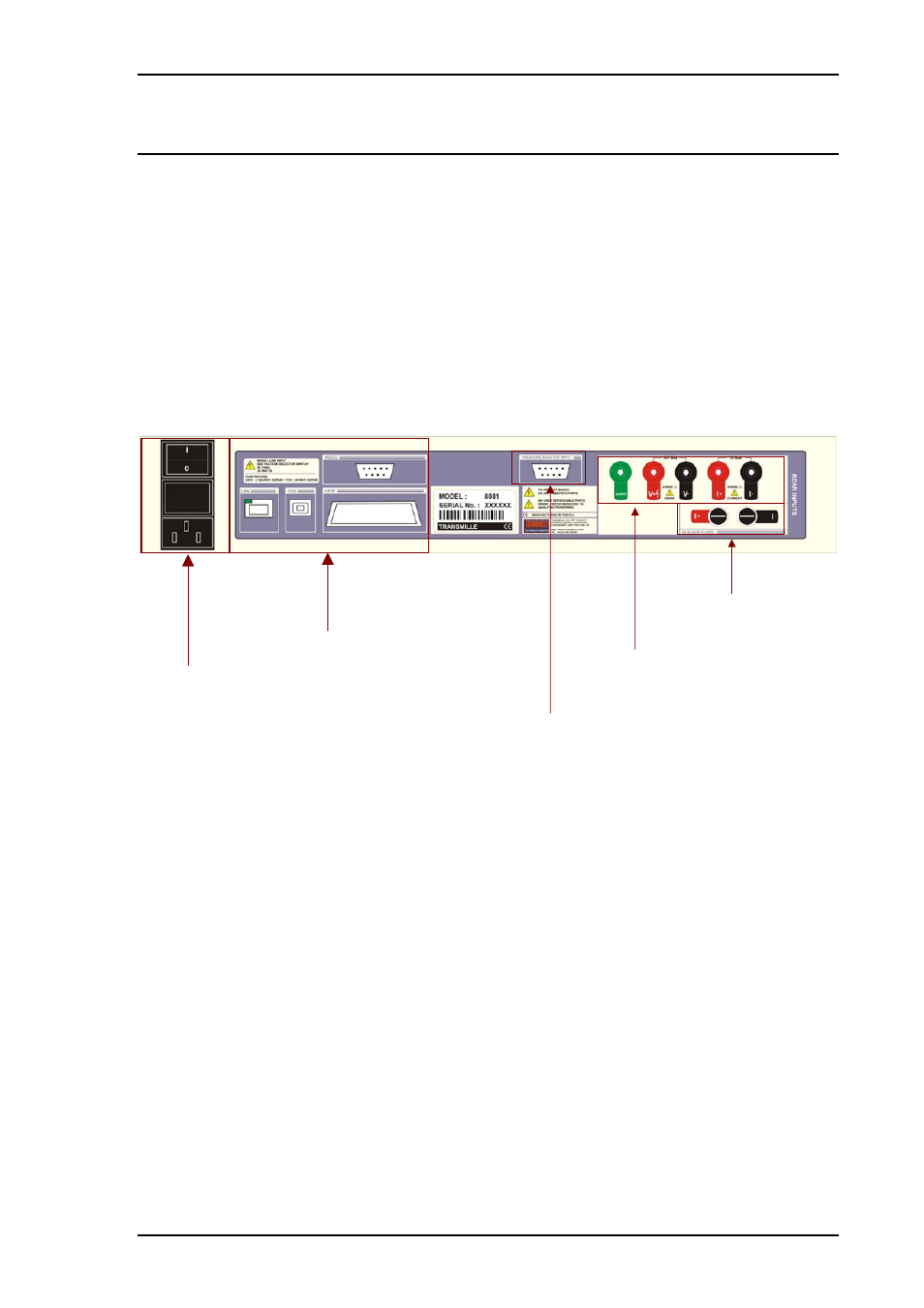

Rear Panel Connections and controls
Connections on the rear panel are for Line Power via a 3 Pin IEC connector incorporating the Line
fuse and on-off switch -note the mains inlet is filtered.
The multiple interface connections are available including RS232, USB, GPIB and Ethernet (LAN)
These interfaces are optically isolated from the multimeter intput.
On 8081 units a set of rear panel terminals are fitted as standard, including voltage, current (to 1A)
and a guard terminal. The 1 A range + and – fuses are located below the current terminals (1A Q.B.).
This set of rear terminals is an option on other models
Power Switch /
Input Fuse / Inlet
Interface Connections
RS232 / Ethernet / GPIB
Rear Panel Input
Terminals (Optional)
1A Range Fuses
Pressure Adapter
Input (Optional)
