6.2 Detailed description of modes
① Reset mode
- This mode will stop control. (The system becomes this mode when the power is turned on.)
② Operation mode
- This mode will conduct programmed run control. (The RUN lamp lights.)
- The SV display will blink while a wait operation is in process in the wait zone or wait time.
- After a patterned operation is complete, the SV display will display "" and stop the control. The PV
display will display the current temperature.
- Holding the ▽ key down for 3 seconds during operation will enable step feed.
③ Pause mode
- This mode will pause programmed run control. (The RUN lamp blinks.) It will stop the time and maintain
the control temperature measured at that point in time.
④ Pattern number setting mode
- This mode will set the pattern number of the program to be executed.
- Use the
△ and ▽ keys to set a pattern number.
- When the system shifted from "operation mode," holding the ▽ key down for 3 seconds will enable step
feed.
- When the system shifted from "operation mode," pressing the PATT./STEP key will display the time elapsed
and time setting.
PV screen: time elapsed, SV screen: time setting
- Pressing the △ and ▽ simultaneously while holding down the PATT./STEP will turn on all the indicators.

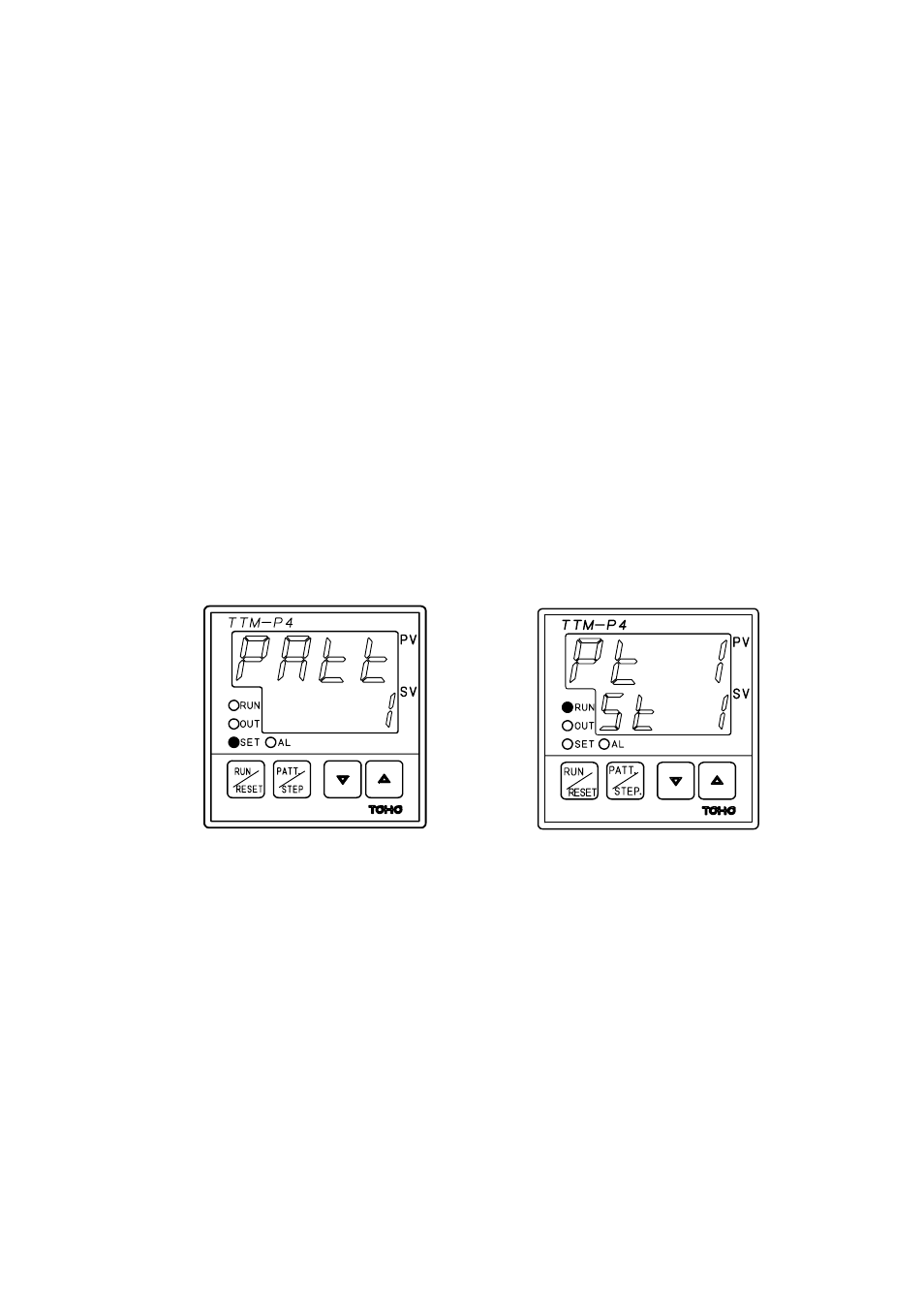

PV:
Displays the pattern number selection
character.
SV: Displays the pattern number setting.
Lamp: Turns on the SET lamp.
PV: Displays the pattern number being executed
or the time elapsed.
SV: Displays the step number being executed or
the time setting.
