Installation

29

Page



‐Dual‐purpose hot water heating‐

(Domestic and Space Heating):













































Priority Control Devices such as a flow switch, an Aquastat or other electronic

controller can be used to prioritize the domestic water system over the heating
system.

 Follow all local codes, or in the absence of local codes, follow the most recent

edition of the National Standard Code, ANSI Z21.10.3.

 This illustration is a concept design only.  The reference to the 1/8

th

 hole in check

is only for the State of Massachusetts. There are a wide variety of variations to
the application of controls and equipment presented. Designers must add all
necessary safety and auxiliary equipment to conform to code requirements and
design practice. For more details, contact the manufacturer.



NOTICE

The circulation pump is to provide no less than 2 GPM and no more than 4 GPM through each activated
unit in the system.




All water piping should be insulated
in accordance with 780 CMR
(Massachusetts energy code)



Hot water

supply and
return to
heating coil

Takagi

P

T

An approved Pressure Only

Relief Valve, Tie to Location
approved by Local Codes and
Must Meet BTU Rating of Takagi
Model Used

Unions

4" Gas Exhaust Vent (Discharge

Must Comply with Local and
State Codes). Can Not Be
Common Vented with Other

Appliances

Atmospheric
Vacuum Breaker

Pump (Must Be Sized Properly

With Each Application). Pump
Shall Run 60 Seconds Every 6

Hours

Pressure

Gauge

Apply Correct
Thermal

Expansion

Tank-Size Per
Application

Tempered
Water To

House

Cold Inlet

Shut-Off
Valve

Check Valve Will
Have 1/8" Hole in
Check, As Per
Mass. Code

Thermometer

Thermostatic Mixing Valve

Shut-Off
Valves

Check Valve

Hot

Water
Outlet

Cold
Water
Inlet

T-Handle Gas
Shut-Off Valve

**Maximum allowable distance of
50-Ft. from water heater and
heating panel

Heating Coil

(used with air-handler)

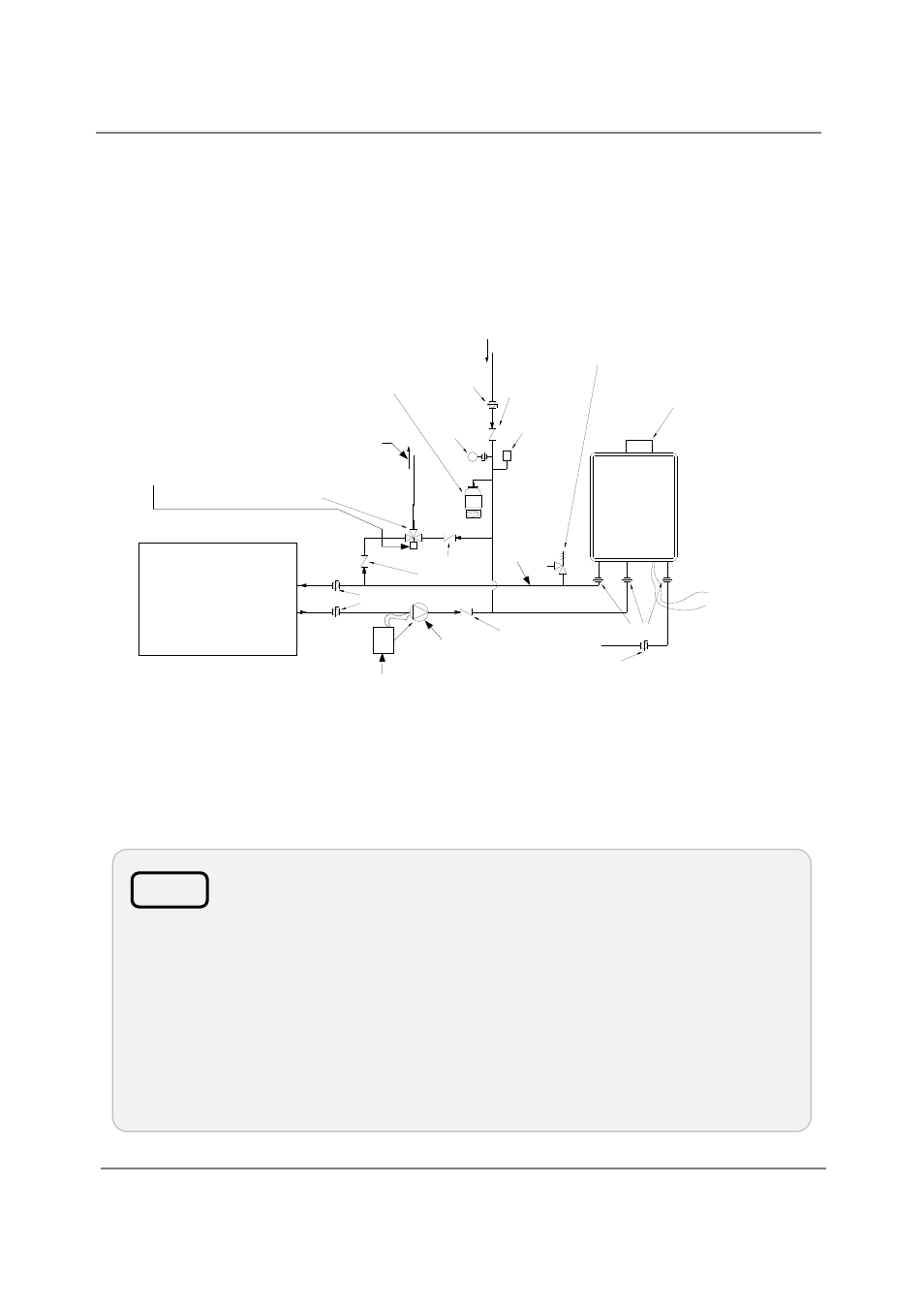

Diagramatic Layout of Radiant Heating and

Domestic Water Heater Per Mass. Code

Thermometer

Check

Valves

Gas
Inlet

Drain
Plug

Water

Filter

120 VAC Switch or Outlet



An approved Temperature and Pressure
Relied Valve, Tie to Location approved By
Local Codes and Must Meet BTU Rating
of water heater Model Used

Cold water supply

Tempered water to plumbing
fixtures. Must meet temperature
requirements of 248 CMR

Automatic
tempering device
must be installed

below the top of
the water heater as
per manufacturer’s

recommendations

System installed with reverse acting

aquastat to shut off fan. Suggested
but not required by 248 CMR

NSF‐61 product
approved pump

Electronically controlled pump timer.
Activates every 6 hours for 60 seconds.

Wire to product approved pump



Check valve
with 1/8” hole

drilling in
clapper optional

50’‐0” maximum distance from water
heater to fan coil and black. (Develoed
length) Not including coil in heating unit

Piping loop
between water
heater and fan

coil shall be in
compliance
with 248 CMR
