 DO NOT adjust any dipswitches on the right bank for the 510 (T‐D2) models.
 The dark squares indicate the direction the dipswitches should be set to.
Dipswitches

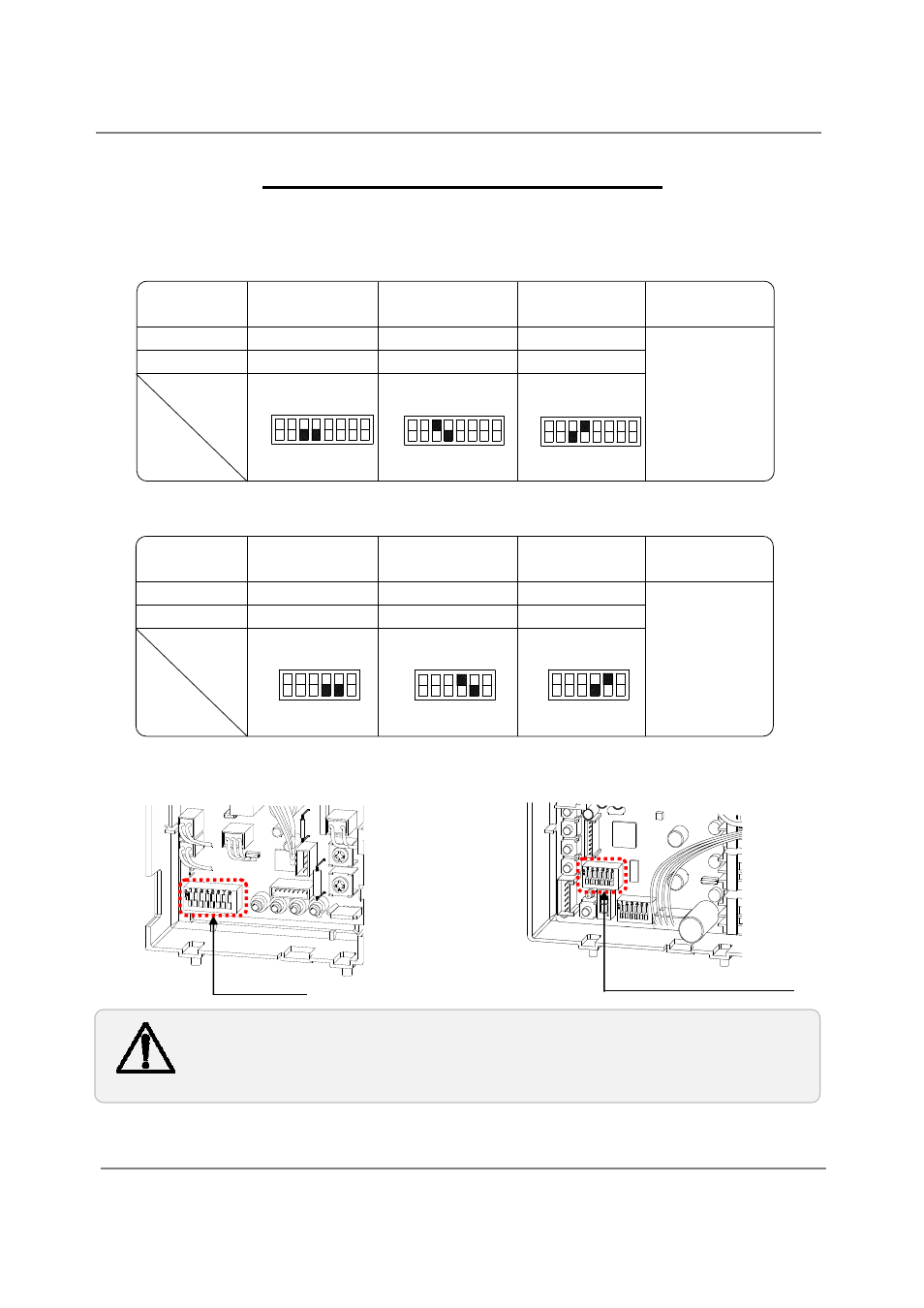

HIGH‐ALTITUDE INSTALLATIONS
Check the elevation where your water heater is installed. Set dipswitches shown in the table below
depending on the altitude.
Altitude
0 to 2,000 ft
(DEFAULT)
2,000 to 4,000 ft 4,000 to 6,000 ft Over 6,000 ft
Switch No.3 OFF ON OFF
Consult
our Technical
Services
Department
at 1‐877‐
737‐2840
Switch No.4 OFF OFF ON
Altitude
0 to 2,000 ft
(DEFAULT)
2,000 to 4,000 ft 4,000 to 6,000 ft Over 6,000 ft
Switch No.4 OFF ON OFF
Consult
our Technical
Services
Department
at 1‐877‐
737‐2840
Switch No.5 OFF OFF ON
110 (T‐KJr2) and 310 (T‐K4) models
510 (T‐D2) models (Left bank of dipswitches)
110 (T‐KJr2) and 310 (T‐K4) models
Computer board
WARNING
510 (T‐D2) models Computer board
Left bank of dipswitches
OFF
ON
1 2 3 4 5 6 7 8
OFF
ON
1 2 3 4 5 6 7 8
OFF
ON
1 2 3 4 5 6 7 8
OFF
ON
1 2 3 4 5 6
OFF
ON
1 2 3 4 5 6
OFF
ON
1 2 3 4 5 6
