Installation
10 │
Page

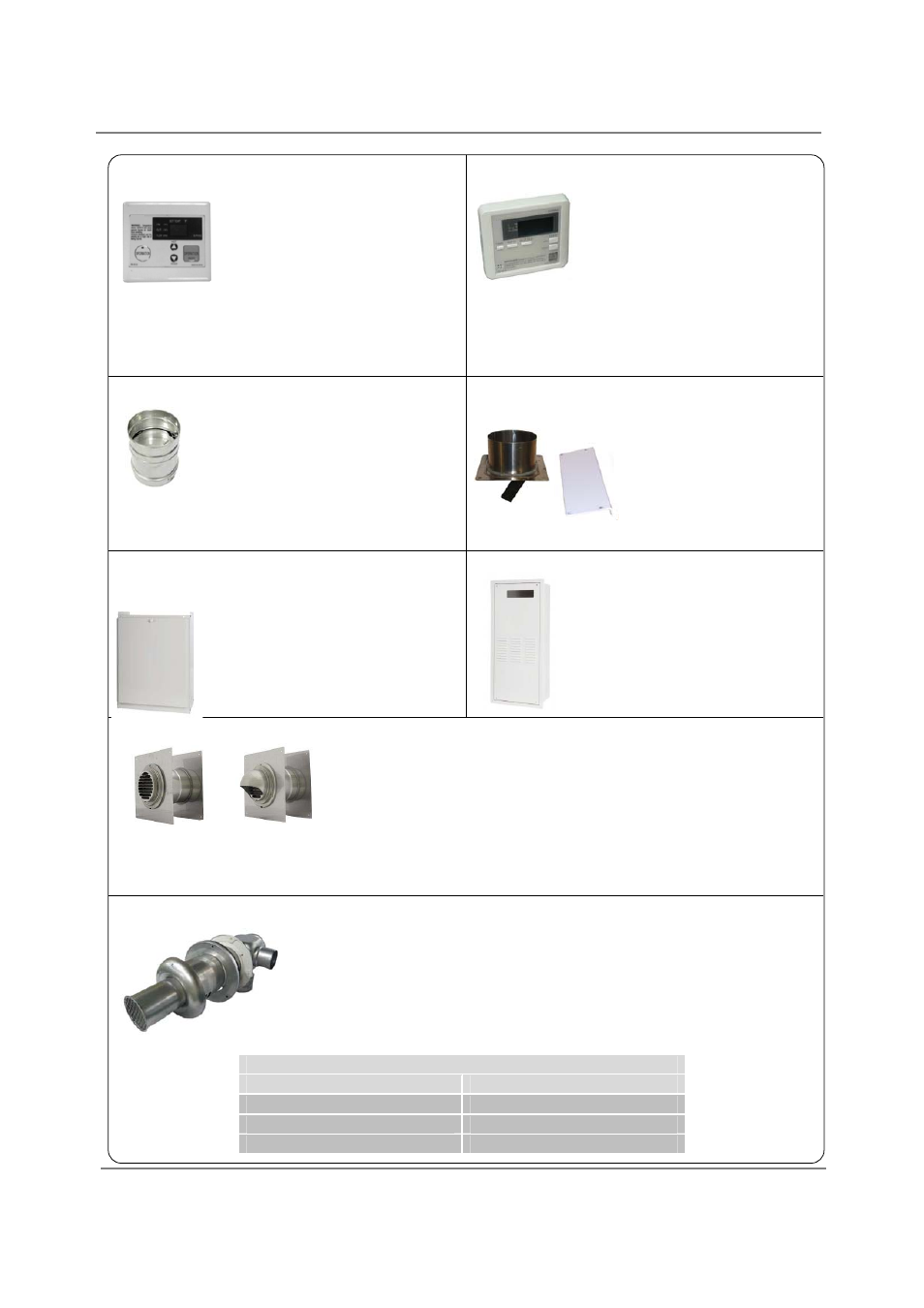

1. Temperature Remote Controller: 9007666005
(TK‐RE02)
The Temperature Remote Controller
has two functions. It allows the
output temperature from the water
heater to be adjusted within the
range of 99 °F to 167 °F, and it also
works as a diagnostic tool that will
give a concise error code whenever
there is a problem with the unit. The temperature
options are 99°F, 100°F, 102°F, 104°F, 106°F, 108°F,
109°F, 111°F, 113°F, 115°F, 117°F, 122°F, 131°F, 140°F,
158°F, and 167°F. See the trouble shooting section for
information on possible error codes.
2. Temperature Remote Controller: 9007603005
(TM‐RE30)
The Temperature Remote Controller
has two functions. It allows the
output temperature from the water
heater to be adjusted within the
range of 99 °F to 185 °F, and it also
works as a diagnostic tool that will
give a concise error code whenever there is a problem
with the unit. The temperature options are 99°F, 100°F,
102°F, 104°F, 106°F, 108°F, 110°F, 111°F, 113°F, 115°F,
117°F, 122°F, 131°F, 140°F, 149°F, 158°F, 167°F, 176°F
and 185°F. See the trouble shooting section for
information on possible error codes.
3. Backflow Preventer: 9007678005 (TK‐BF01)
The Backflow preventer prevents the
backflow of air through the exhaust
vent. This helps prevent harmful exhaust
gases from entering the home, as well as
helping to prevent the unit from freezing
in areas where cold air can be blown or
drawn into the exhaust system. Install this vent damper
in accordance with the installation instructions and any
applicable codes.
4. Direct‐Vent Conversion Kit: 9007667005
(TK‐TV10)
This kit can be used to convert
the water heater from a
standard vent system to a
direct‐vent (or sealed
combustion) system. Install
this conversion kit in
accordance with the
installation instructions and
any applicable codes.
5. Pipe Covers: 9007670005 (TK‐PC01) and
9007671005 (TK‐PCJr2)
The pipe cover protects the plumbing
pipes to the water heater from
unexpected adjustments. This pipe
cover is fixed to the bottom of the
water heater, which hides the
plumbing and improves the visual
aspects of the whole installation for
the water heater.
6. Recess box: 9007674005 (TK‐RB02)
The Recess box will allow for “clean”
installations. The water heater fits inside
the recess box, which hides and protects
the whole water heater and plumbing.
The Recess box will fit in‐between most
wall studs.
7. T‐Vent Wall Thimble with Termination: 9007608005 (TK‐KPWL4) and 9007609005 (TK‐KPWH4)
These terminations are used when venting out through the wall and are
compatible with the T‐Vent pipe system.
These terminations are special stainless steel vents for gas appliances and are
UL listed as Category II, III and IV. There are two types of terminations: the
Louver termination and the Hood termination. For different wall thicknesses,
there are two ranges of lengths available (refer to the venting brochure for
details).
Install these vent terminations in accordance with their installation
instructions and any applicable local codes.
8. Direct‐Vent Concentric Termination: 9007680005 (TK‐KPCT43)
Used when terminating direct‐vent (sealed‐combustion) systems, with direct‐
vent models that require a 3” intake and a 4” exhaust. This concentric
termination provides the convenience of only having to make one penetration
through a sidewall instead of two separate penetrations for the intake and
exhaust piping. The termination includes a bird screen, restricting small animals,
pests, and foreign objects from entering into the vent system. This sidewall
termination is available in three different sizes, to cover all ranges of wall
thicknesses.
Direct‐vent Concentric Termination
Part# Covering wall thickness
9007680005 (TK‐KPCT43‐1) 3.9” – 7.1”
9007772005 (TK‐KPCT43‐2) 6.9” – 10.1”
9007773005 (TK‐KPCT43‐3) 9.8” – 13.0”
Louver
Termination
9007608005
(TK‐KPWL4)
Hood
Termination
9007609005
(TK‐KPWH4)
