Milestone XProtect Central 3.7; User’s Manual

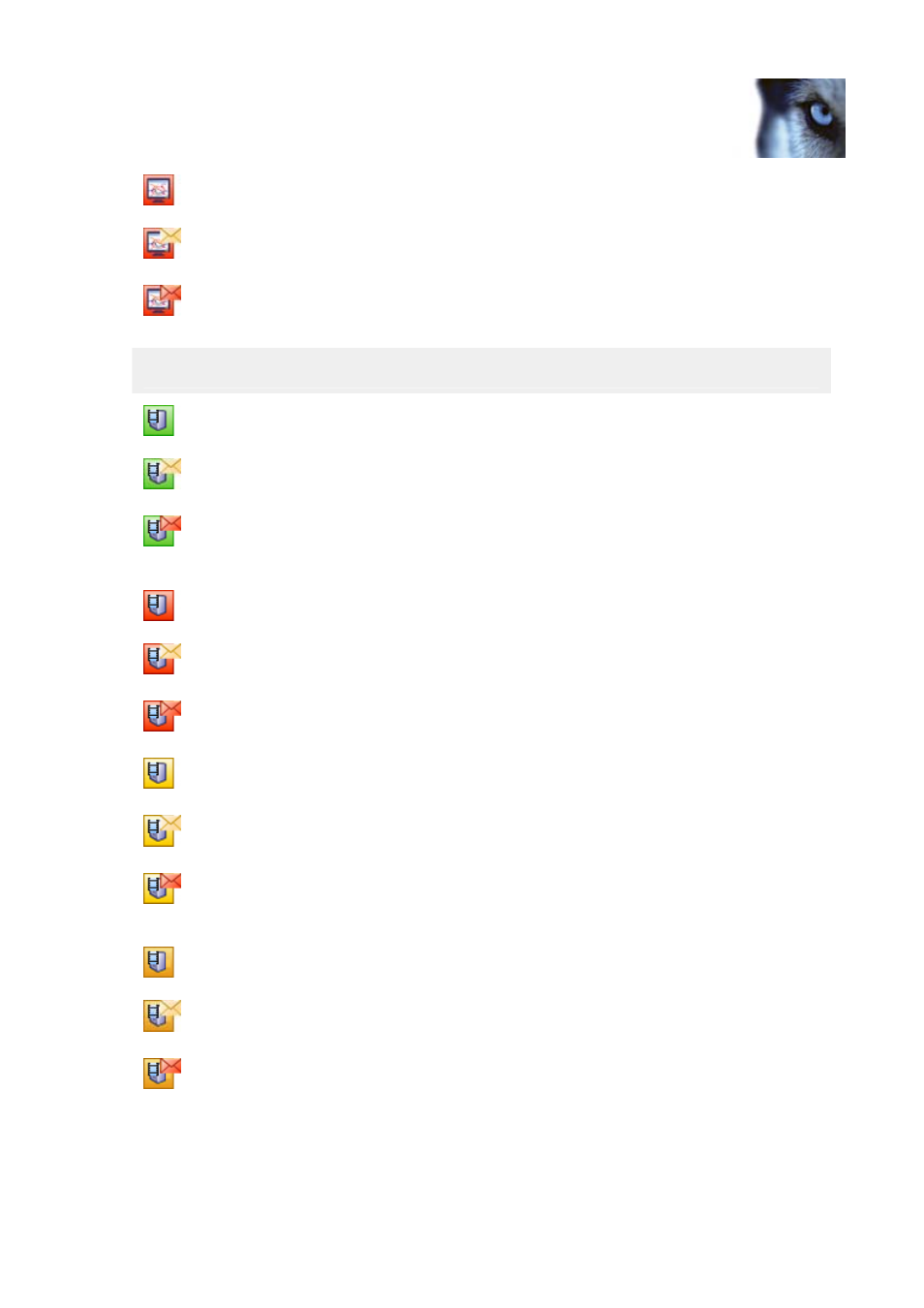

Operational errors, but no alarms, on underlying map
(map icon on red square)
Operational errors and in-progress alarms on underlying map
(map icon on red square
with yellow envelope icon)
Operational errors and new alarms on underlying map
(map icon on red square with
red envelope icon; if animated indicators are used, envelope will be blinking
red/yellow)
Server Indicators
Server has no operational errors and no alarms
(server icon on green square)
Server has no operational errors, but has in-progress alarms
(server icon on green
square with yellow envelope icon)
Server has no operational errors, but has new alarms
(server icon on green square
with red envelope icon; if animated indicators are used, envelope will be blinking
red/yellow)
Server has operational errors, but no alarms
(server icon on red square)
Server has operational errors and in-progress alarms
(server icon on red square with
yellow envelope icon)
Server has operational errors and new alarms
(server icon on red square with red
envelope icon; if animated indicators are used, envelope will be blinking red/yellow)
Server has operational status indication acknowledged or snoozed, and no alarms
(server icon on yellow square)
Server has operational status indication acknowledged or snoozed, and in-progress
alarms
(server icon on yellow square with yellow envelope icon)
Server has operational status indication acknowledged or snoozed, and new alarms
(server icon on yellow square with red envelope icon; if animated indicators are used,
envelope will be blinking red/yellow)
Server has new alarms disabled and no alarms
(server icon on orange square)
Server has new alarms disabled and in-progress alarms
(server icon on orange square
with yellow envelope icon)
Server has new alarms disabled and new alarms (registered before new alarms were
disabled)
(server icon on orange square with red envelope icon; if animated indicators
are used, envelope will be blinking red/yellow)
What does Acknowledged and Snoozed mean? By right-clicking a server indicator
users get access to a menu from which they can acknowledge that they are aware of
the operational status of the server. The menu also lets users snooze (i.e. put on hold)
