45
Appendix B -- Function Card Configuration
Any series 8000 enclosure can be configured with optional function cards. Function cards
available include Voltage to Current conversion (for 4-20mA outputs), dual set points,
summation/comparator (for thickness applications), dynamic measurement (RMS->DC
conversion or Peak measurements), and a prototyping card. Each function card will have its
own manual describing pinouts and usage. Please refer to the appropriate function card
manual for specific questions.
Caution: Be careful when connecting power, incorrect connections may damage your system.
The following pages briefly describe some of the function cards available along with the pinout
for reference.

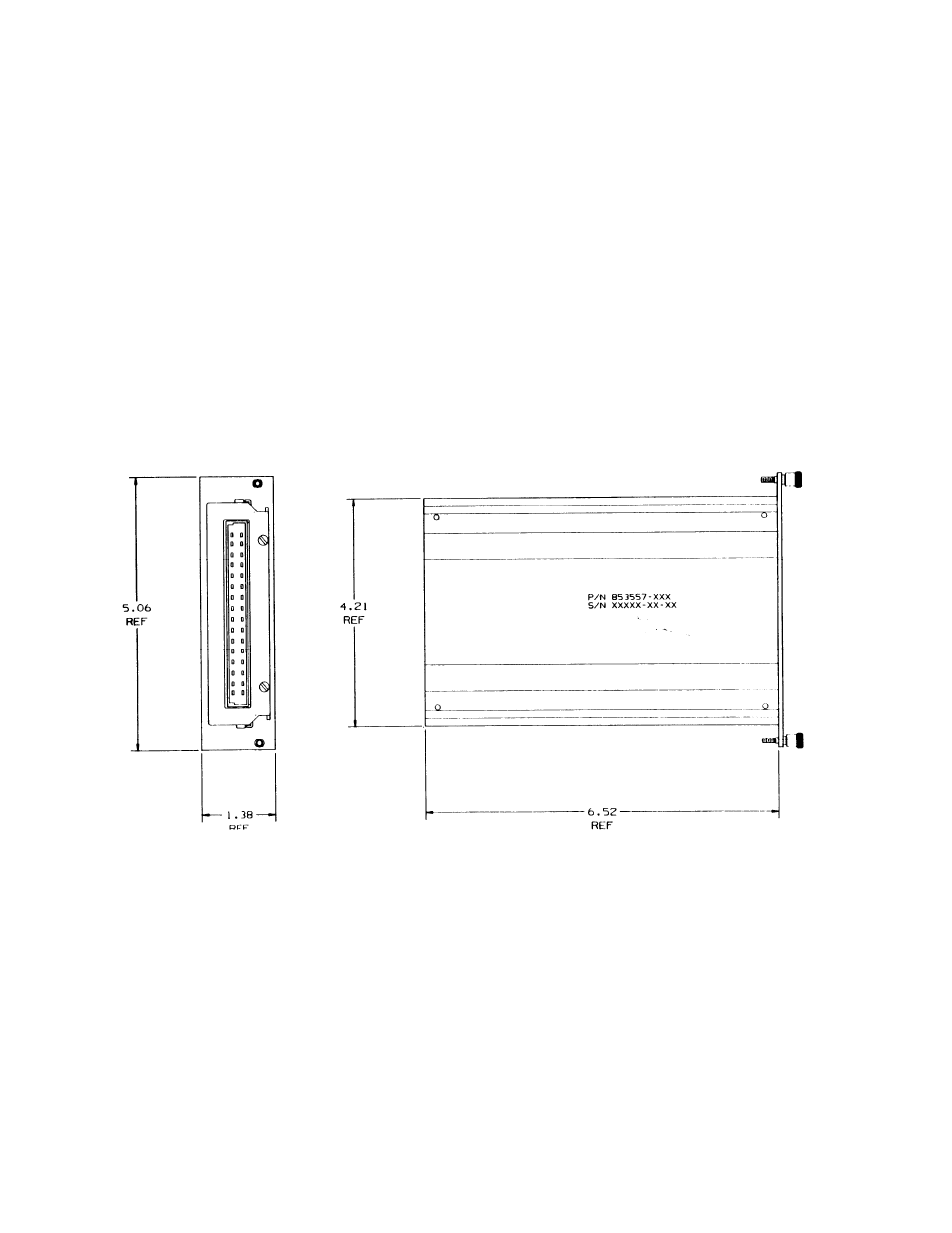

fig. 30 -- Module Reference Dimensions;
Note: All dimensions are
in inches
