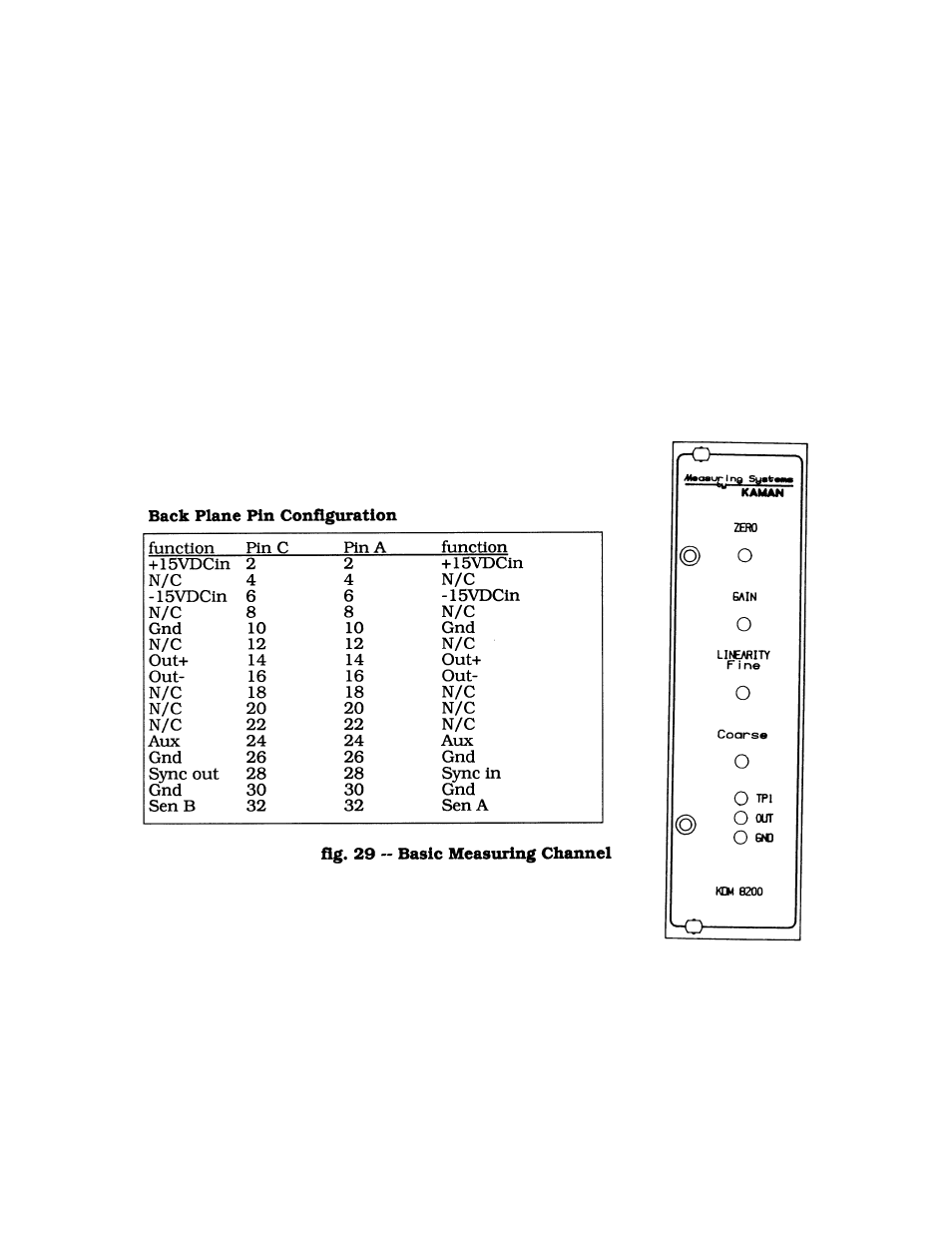

Basic Measuring Channel Configuration
Most of the displacement measuring channels offered by Kaman have the same pinout and
front panel configuration. They utilize inductive bridge technology which has a high sensitivity
and is generally insensitive to contaminants such as dust, dirt, and oil. If adding additional
measuring channels to an existing unit you will need to be careful to wire the `Sync out' pin
from a master modules to the `Sync in' pin on all other module which must be configured as
slaves to avoid beat note interference problems. Please see a Kaman 8200 user manual (PN
860059), 8200 differential supplement (PN 860067), or 8200 High Temp manual (PN 860064)
for more specific information on the particular sensor system that you have.
