MCD-8000 and 1/8 DIN Panel Mounted Displays
The MCD 8000 is a scalable 4 digit display module designed for accurate, reliable ,
measurement of voltage or milliamps from up to 6 inputs. The panel cutout for the MCD-8000
is a standard 1/8 DIN size. This allows flexibility in choosing an appropriate meter for a
particular application. For most applications the MCD-8000 with its multi-channel scalable
input is adequate. Information on the MCD-8000 is included in this manual. If another meter
is used please refer to the specific manual on it for usage information. See Appendix C for
specifications on the MCD-8000. 1/8 DIN panel cutouts are available in either single or dual
configurations. For the single configuration use PN 814873-001 and for the dual configuration
use PN 814873-002.

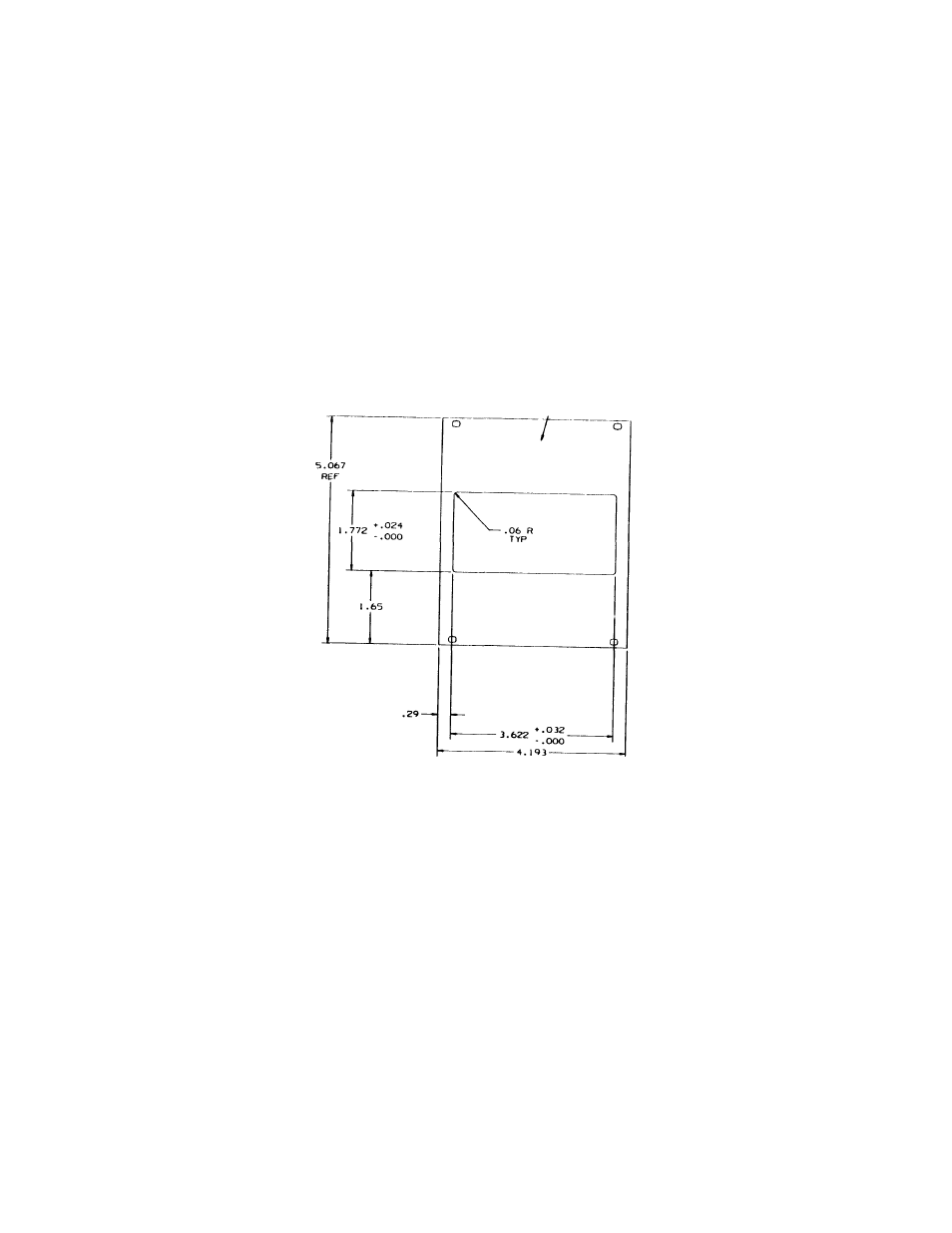

fig. 19 -- Single 1/8 DIN Mounting Panel 814873-001;
