Input wiring to the Display
The display can come in several configurations depending on the rack requirements. The basic
connectors to the back of the module are from the measuring channels to the terminal block as
shown in fig. 22 with the measuring channel output wired to the (+) terminal and the GND
wired to the (-) terminal for a particular channel. If you have a bipolar meter please request
drawing 853727 for information on special wiring.

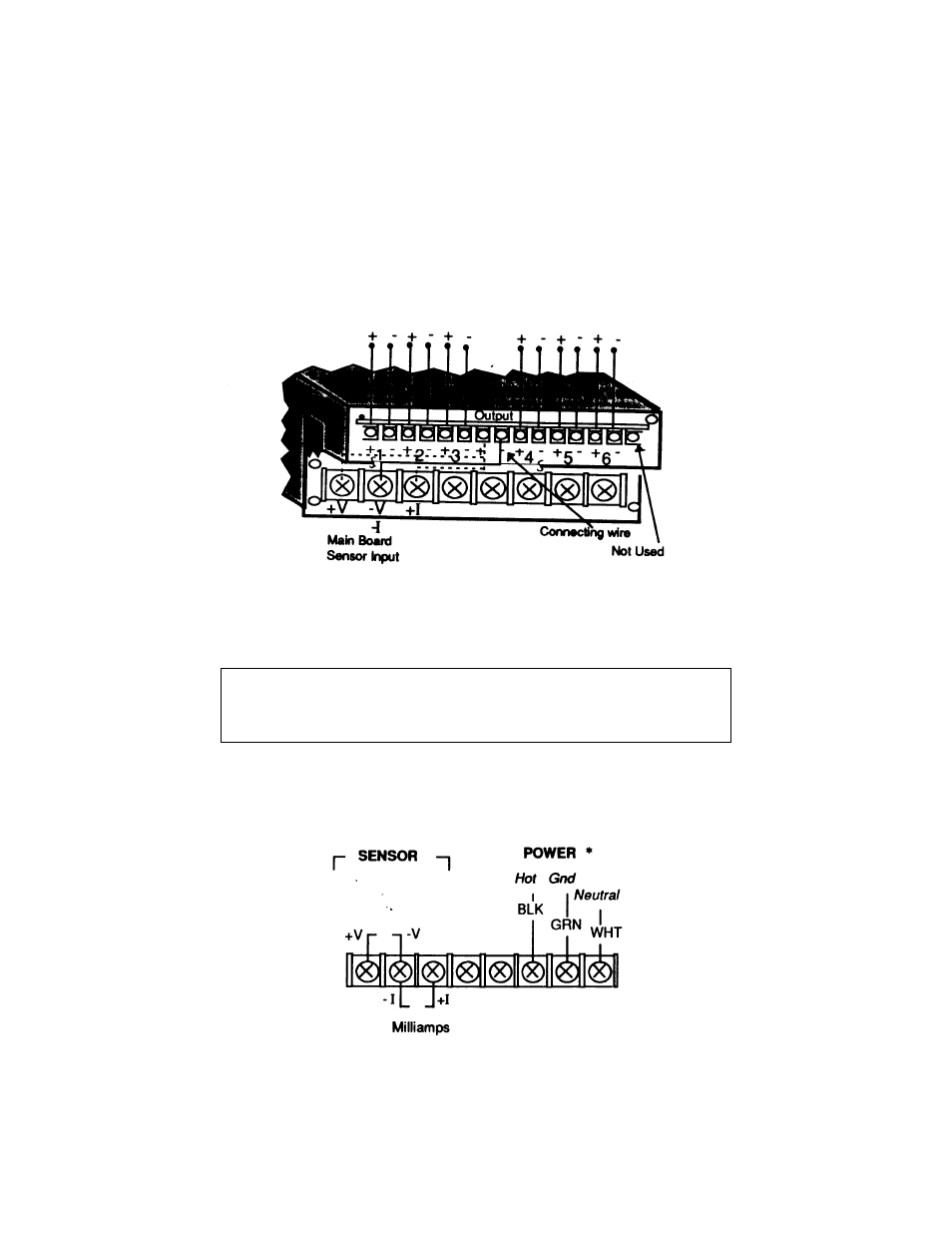

fig. 22 -- MCD 8000 Input Wiring;
Warning: Insure that the voltage label on the meter matches
the power source input. Failure to have the
display configured the same as the power input
can result in destruction of the unit.
Connect the input sensor and power wires to the screw terminals at the back of the meter as
shown below:
fig. 23 -- MCD 8000 Power Wiring;
