5. Mechanical Application
5.1. TRD/TRH 600/605 models
Torque sensor series TRD600/605 have square connections for plug-in tools according to DIN
3121.
Torque sensor series TRH600/605 have hexagon connections according to DIN 3126, form E/F.
The torque sensor is attached to a drive spindle as shown below
Application examples:
TRD600/605 TRH600/605

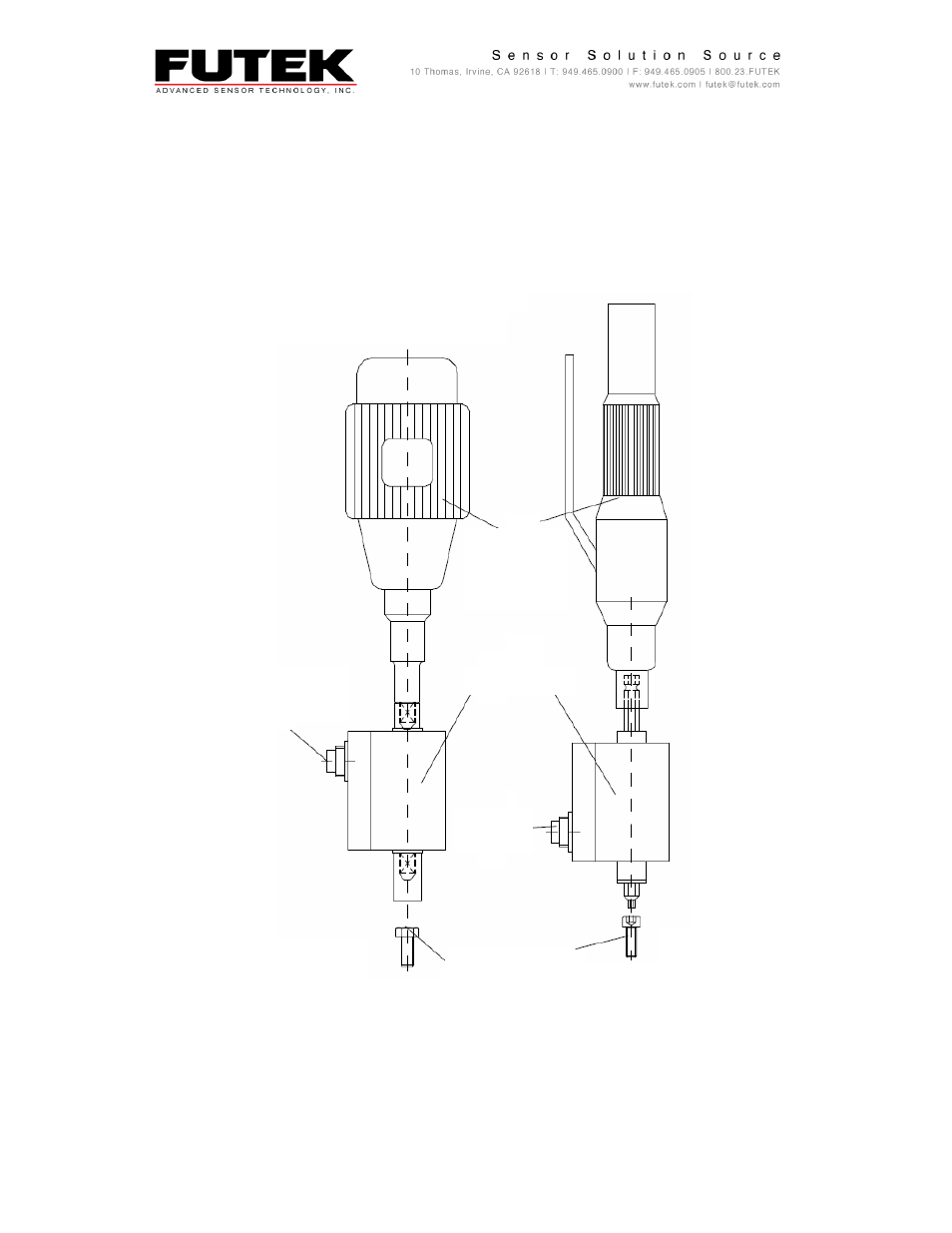

Fig. 12: Application examples models TRD600/605 & TRH600/605
Motor/
Electric or
Pneumatic
Wrench
Lead
Connector
Torque Sensor
Lead
Connector
Socket Spanner/bit
