FUTEK TRS-Series - Manual (Page 13)

13 EM1005
4.3. Connecting Cable

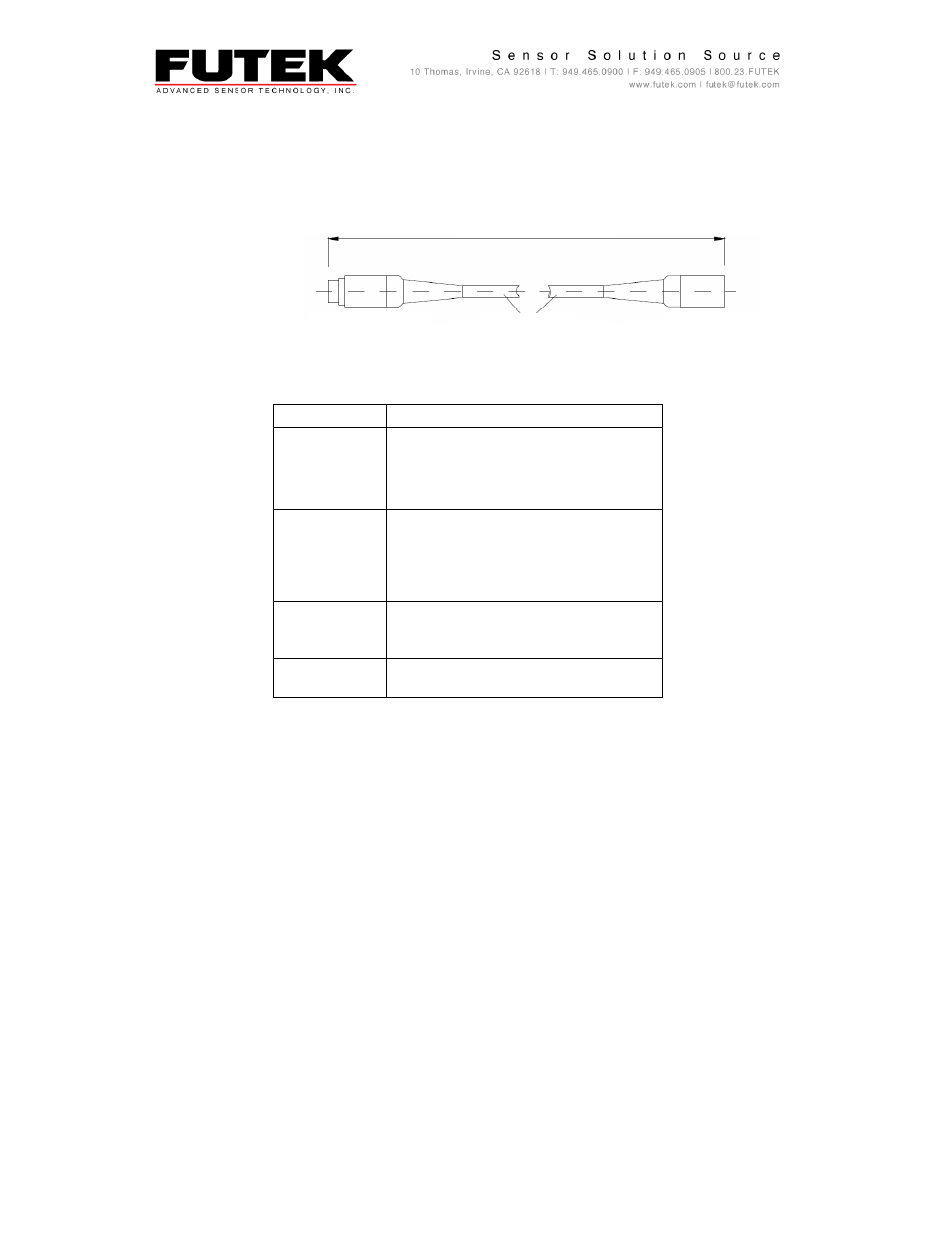

Cable Diagram with Plugs on Both Sides, Model ZCC914
Fig. 10: Cable diagram with plugs on both sides
* Torque and Angle share the same pin for Ground.
Binder Pin Out Function
F Torque, Power Supply
*E Torque, Power Supply, Ground
C Torque, Signal Output
D Torque, Signal Output, Ground
H Angle, Power Supply
*E Angle, Power Supply, Ground
B Angle 1/ Speed, Signal Output
G
Angle 2 (90° shifted to Angle 2), Signal
Output
K Shunt Calibration, Power Supply
A Shunt Calibration, Power Supply, Ground
M Shield, Inside the sensor to housing
J Not Connected
L Not Connected
Cable Length
12 Pin Plug 12 Pin Binder
Plug
Flexible Cable
