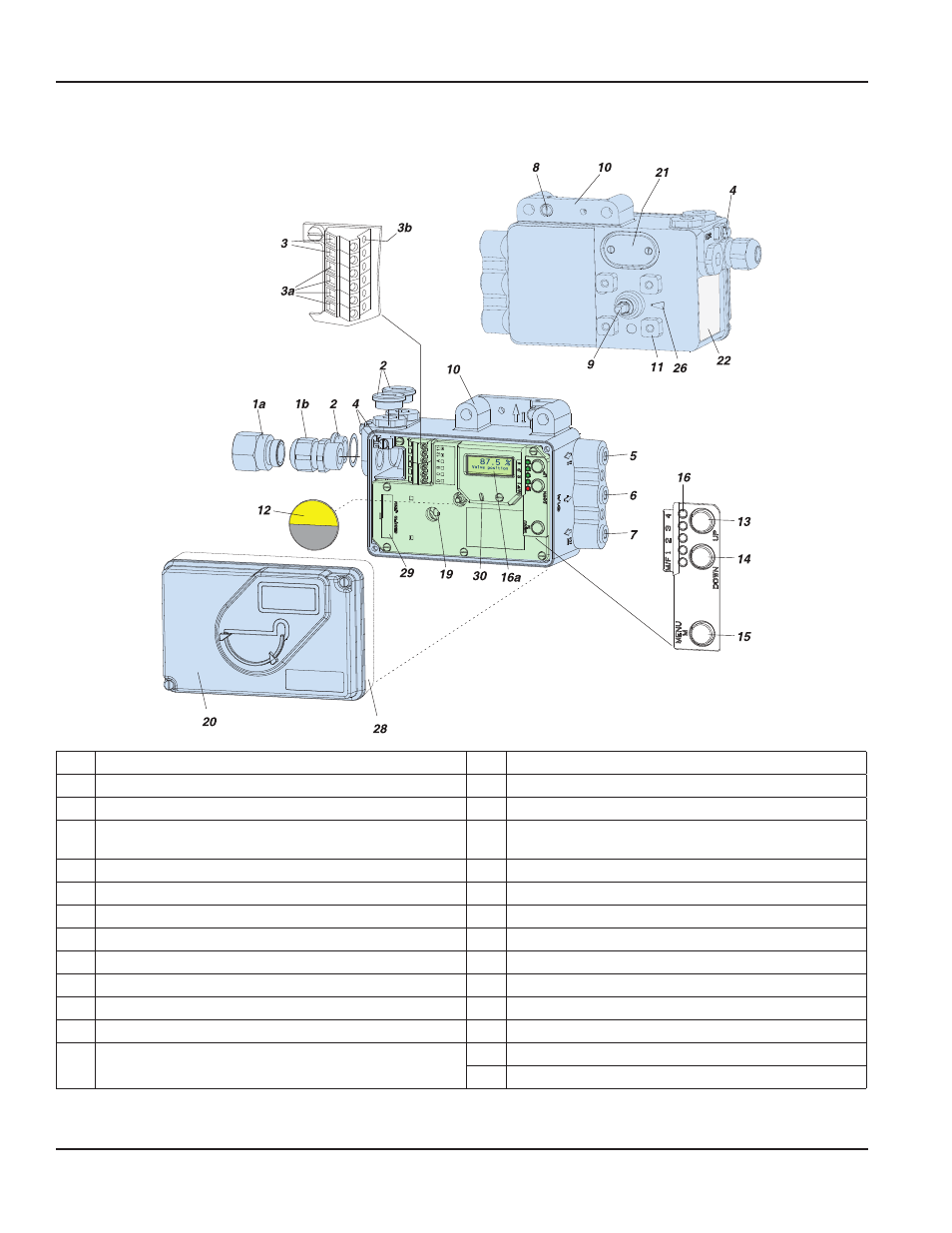

FUNCTIONAL DESIGNATIONS
1a Adapter, eg 1/2"-14 NPT 11 Connection base for attachment to rotary actuators
1b Cable gland 12 Travel indicator
2 Plug, interchangeable with Pos 1 13 Key UP
3 Screw terminals 1) (11 / 12) for input (w) or for bus connection
IEC 1158-2
14 Key DOWN
3a Screw terminals 1) for additional inputs / outputs 15 Key M (Menu)
3b Test sockets Ø 2 mm, integrated in terminal block 16a LCD with true text in 3 different languages
4 Ground connection 19 Fixing shaft for limit switch
5 Female thread G 1/4 for output I (y1) 20 Cover with window to 1
6 Female thread G 1/4 for air supply (s) 21 Air vent, dust and water protected
7 Female thread G 1/4 for output II (y2) 22 Data label
8 Direct attachment hole for output I (y1) 26 Arrow is perpendicular to shaft 9 at angle 0 degree
9 Feedback shaft 28 High cover with built-in limit switch
10 Connection manifold for attachment to stroke actuators (not
with VDI/VDE 3847 version)
28 Plug for service connector
30 IrCom interface
1) Alternatively WAGO terminals instead of screw terminals
2) Depending on the version, the device is equipped with or without LEDs
