ADDITIONAL EQUIPMENT
This equipment can be added to any basic device

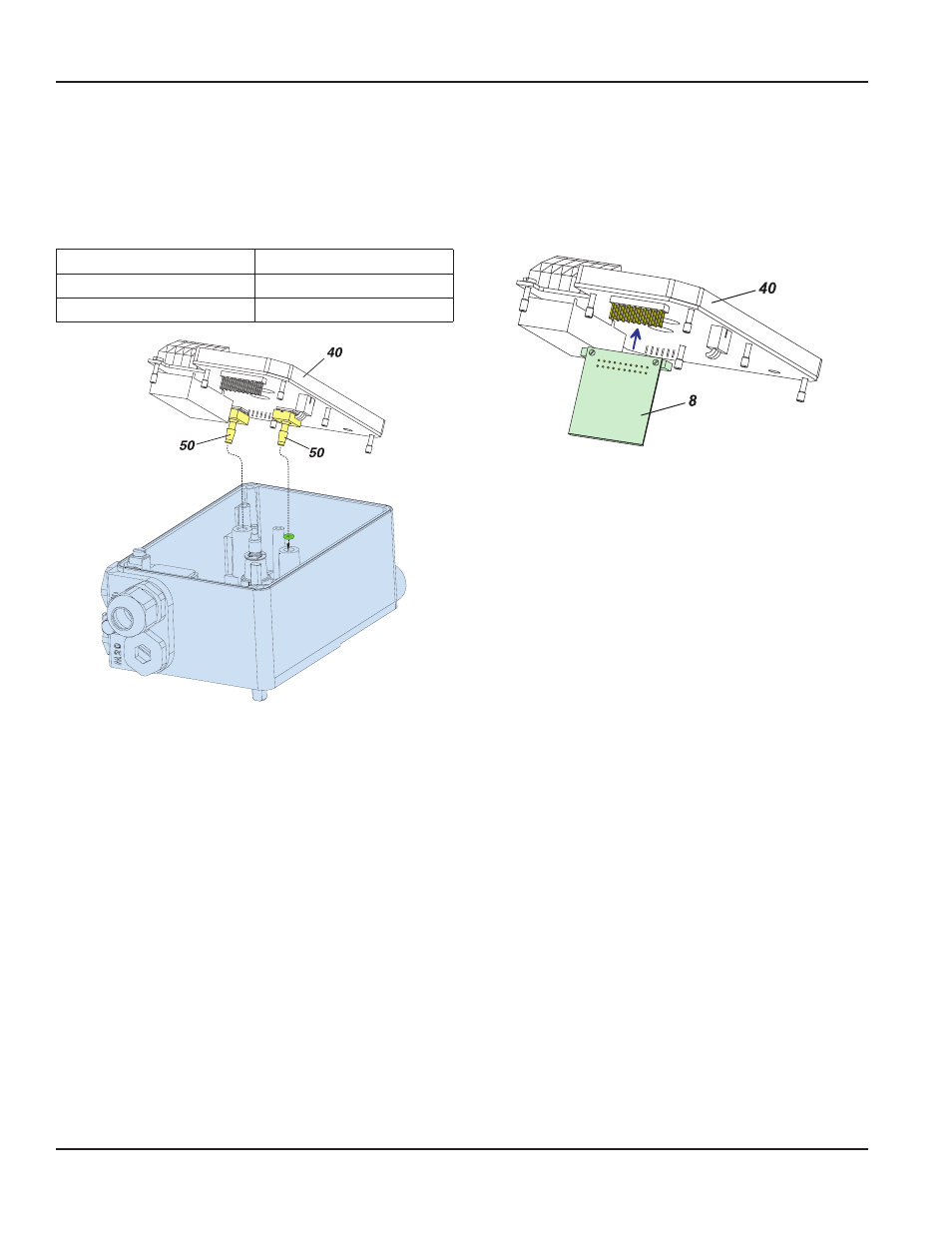

Built-in Pressure Sensors for Premium Diagnostic, Code
Option –B
For supply air and output y1 to actuator:
Measuring Range 0…8 bar (0…120 psig)
Accuracy 2%
Temperature Influence 0 5% / 10 K (– 40…80° C)
Pressure sensors 50
Additional Inputs / Outputs
One module “Additional inputs / outputs” 8 can be plugged
onto main electronics 40:
• 2 binary inputs or
• 2 binary outputs or
• 2 binary in/outputs or
• Position feedback and alarm
Details on the following pages
