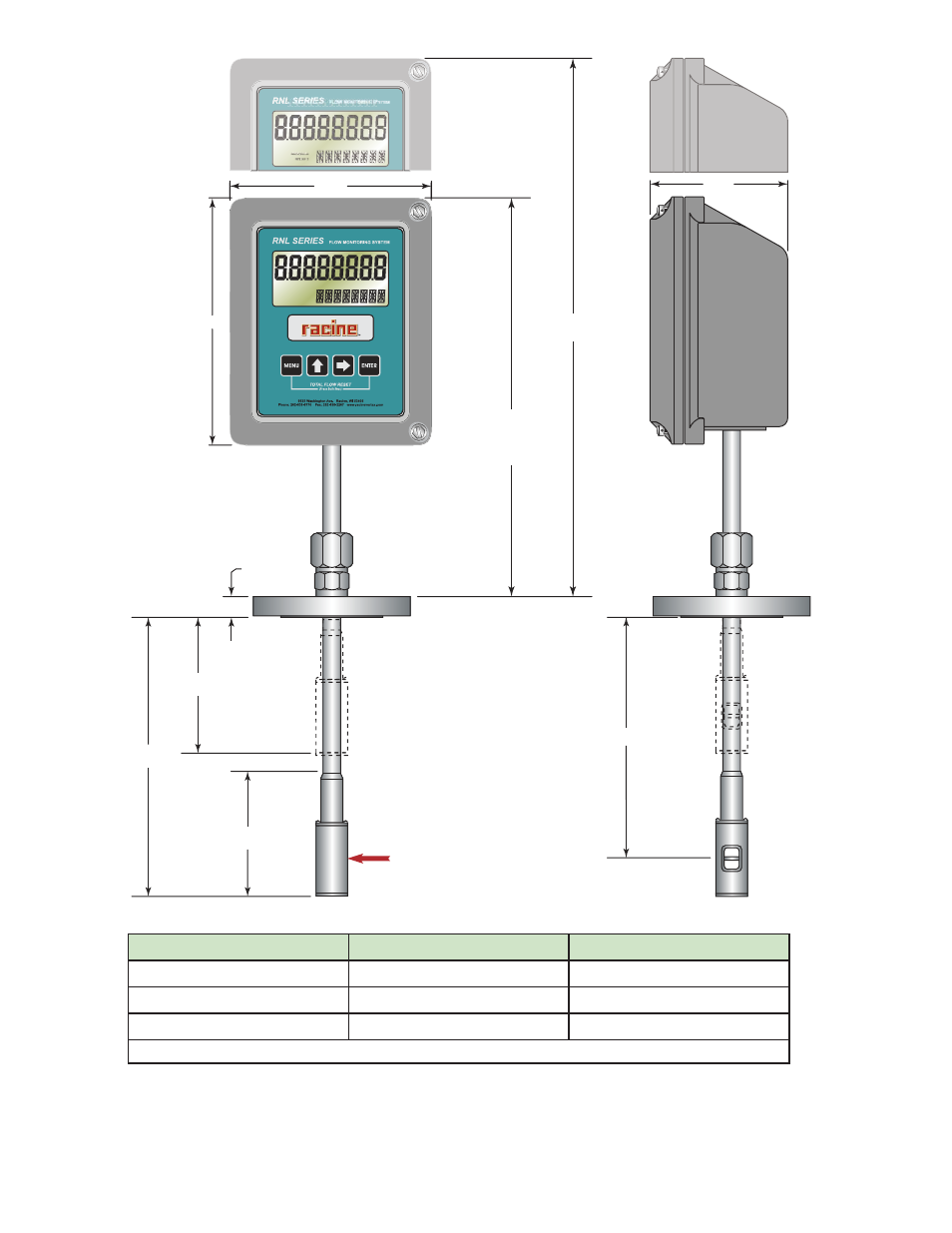

Figure 3 - outline dimensions for rnl series – Badger Meter Vortex Meters User Manual

Page 8

background image

8

09-VRX-UM-00408 07/12

9.75" Maximum

at Maximum

Insertion

C Maximum

Retracted

4.50"

Maximum

B Maximum

Insertion

4.00" Maximum

Retracted

.75"

A

Flow

RUN

PROGRAM

RELAY 1

RELAY 2

5.75"

7.00"

RUN
RELAY 1

3.93"

A

B

C

12.00 (305)

13.125 (333)

18.83 (478)

24.00 (610)

25.125 (638)

30.83 (783)

36.00 (914)

37.125 (943)

42.83 (1088)

All dimensions are in inches (mm)

FIGURE 3 - OUTLINE DIMENSIONS FOR RNL SERIES
