Badger Meter ReadCenter - Manual (Page 38)

Badger
®
READCENTER
®
May 2010
Installation and Operation Manual
38 — CONFIDENTIAL AND PROPRIETARY — Badger Meter, Inc.

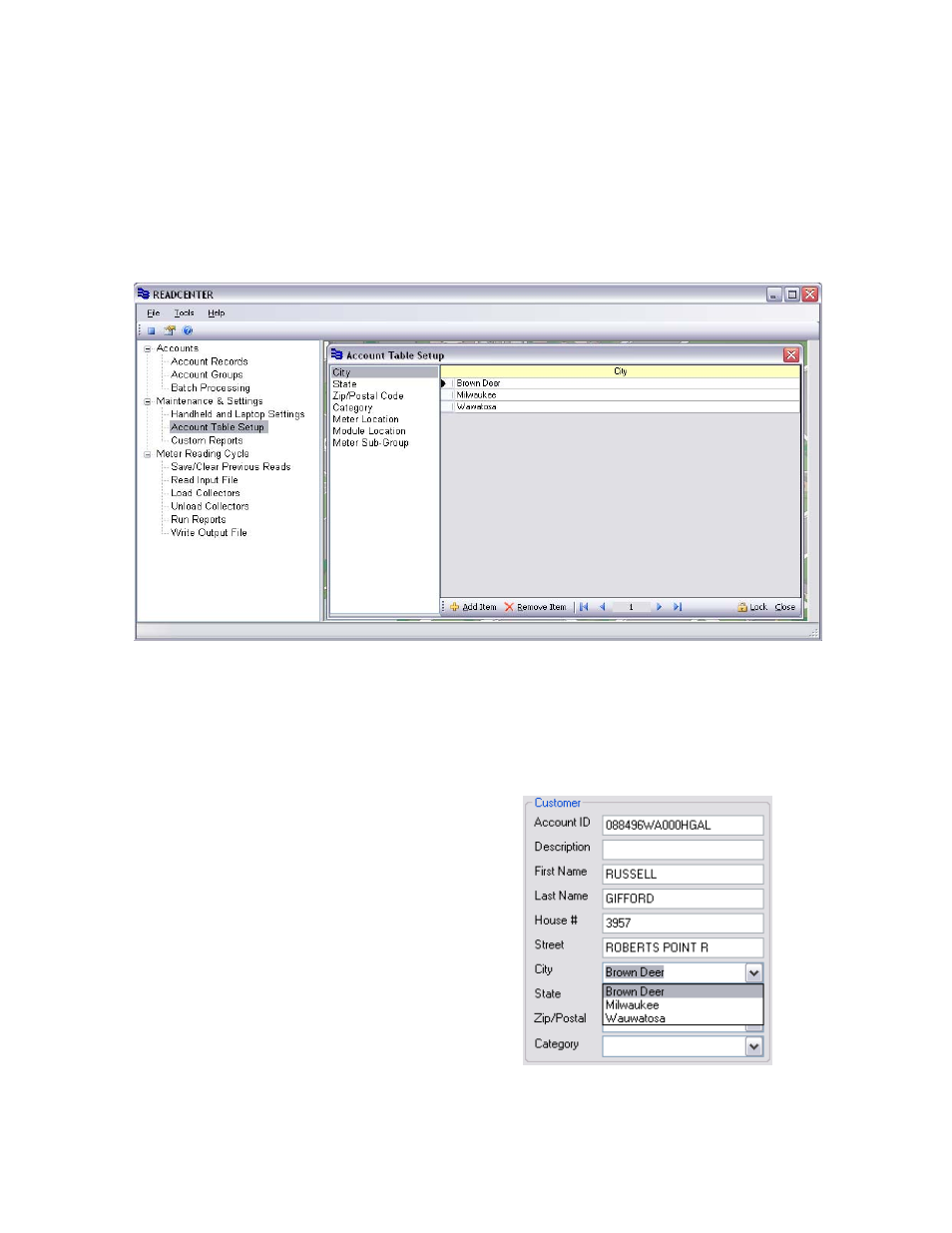

Account Table Setup
The Account Table Setup function allows you to define lists of information to associate with
individual account records. The left side of the form holds table names; the right side displays
entries for a selected table. When you select a table name from the list on the left, the right side
of the form shows the name in the heading line with associated table entries below it. Form size
is adjustable.
 To add a table entry, click Add Item in the bottom tool bar. A new blank line will appear.
Type the text for the entry on this line.
 To delete a table entry, move the cursor to the line you wish to delete, click on it, and then
click Remove Item in the bottom tool bar.
 To edit an entry, insert the cursor and type directly on the line.
 The navigation arrow buttons in the bottom tool bar provide another way to move from one
table entry to another.
When entries are added in the Account
Tables as described above, they become
part of the account information visible in the
Account Records section. Each table has an
associated drop-down field. An example using
the City table is shown on the right.
Note: The selections must currently be
entered manually by the READCENTER
operator. Automatic entry as part of default
settings or when reading an input file will be
available in a future release of
READCENTER.
