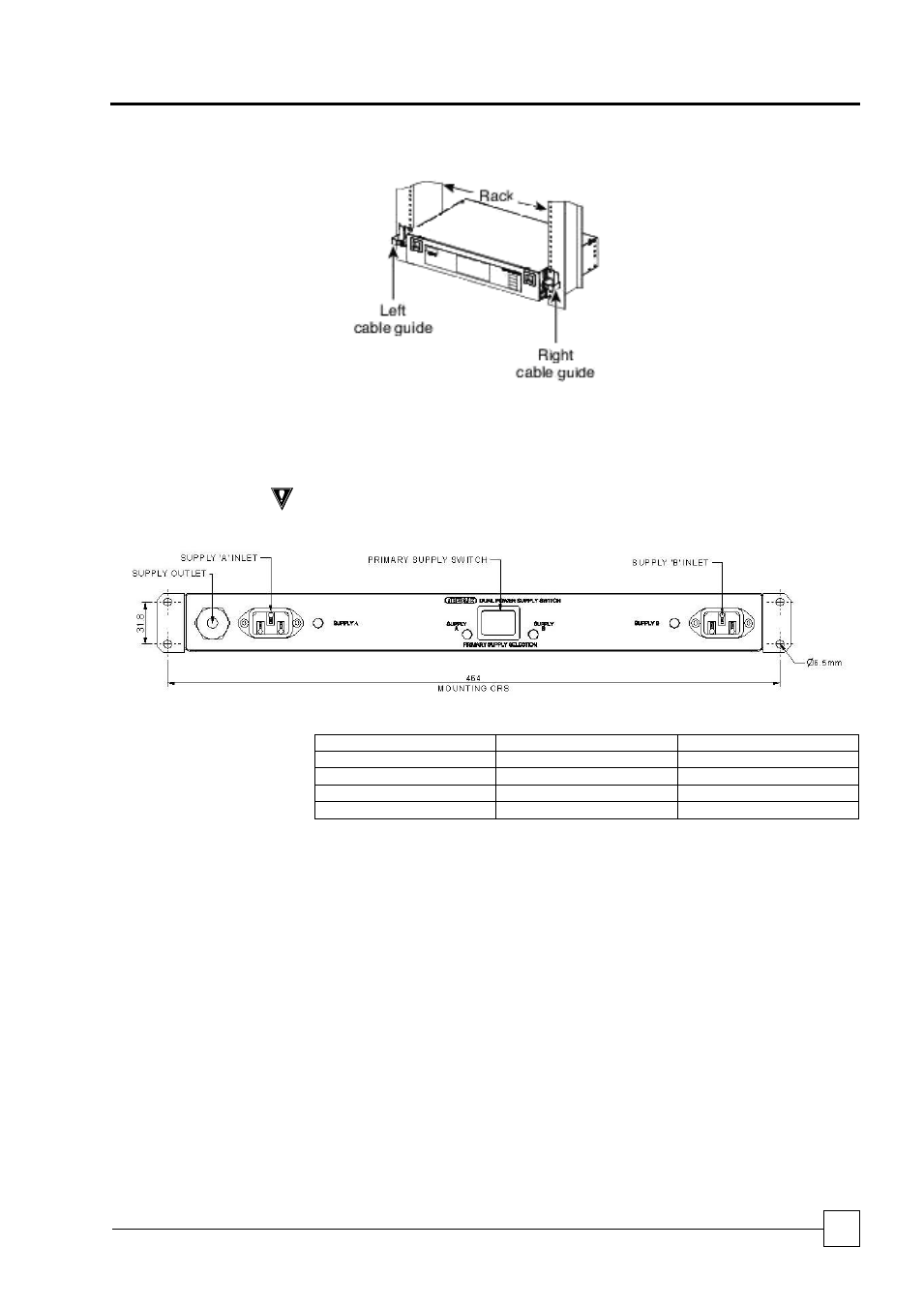

Attach the earth strap to the rear of the power supply unit.
Locate the Dual power supply between the cable support guides of the server
rack.
Secure the unit with screws supplied by your rack manufacturer.
Attach the incoming fused power supplies.
Fit power supply retaining clips.
Attach the outgoing power supply to the customer terminal box.
IMPORTANT
Do not route the outgoing cable through the area occupied by the pipework. The
recommended location is through the PDU trunking to the customer terminals.
LED Indicators
The LED’s fitted to the rack indicate the following
ON
OFF
Green A
Supply Live A
No Power
Green B
Supply Live B
No Power
Blue A
Primary supply selected A
Supply not selected
Blue B
Primary supply selected B
Supply not selected
