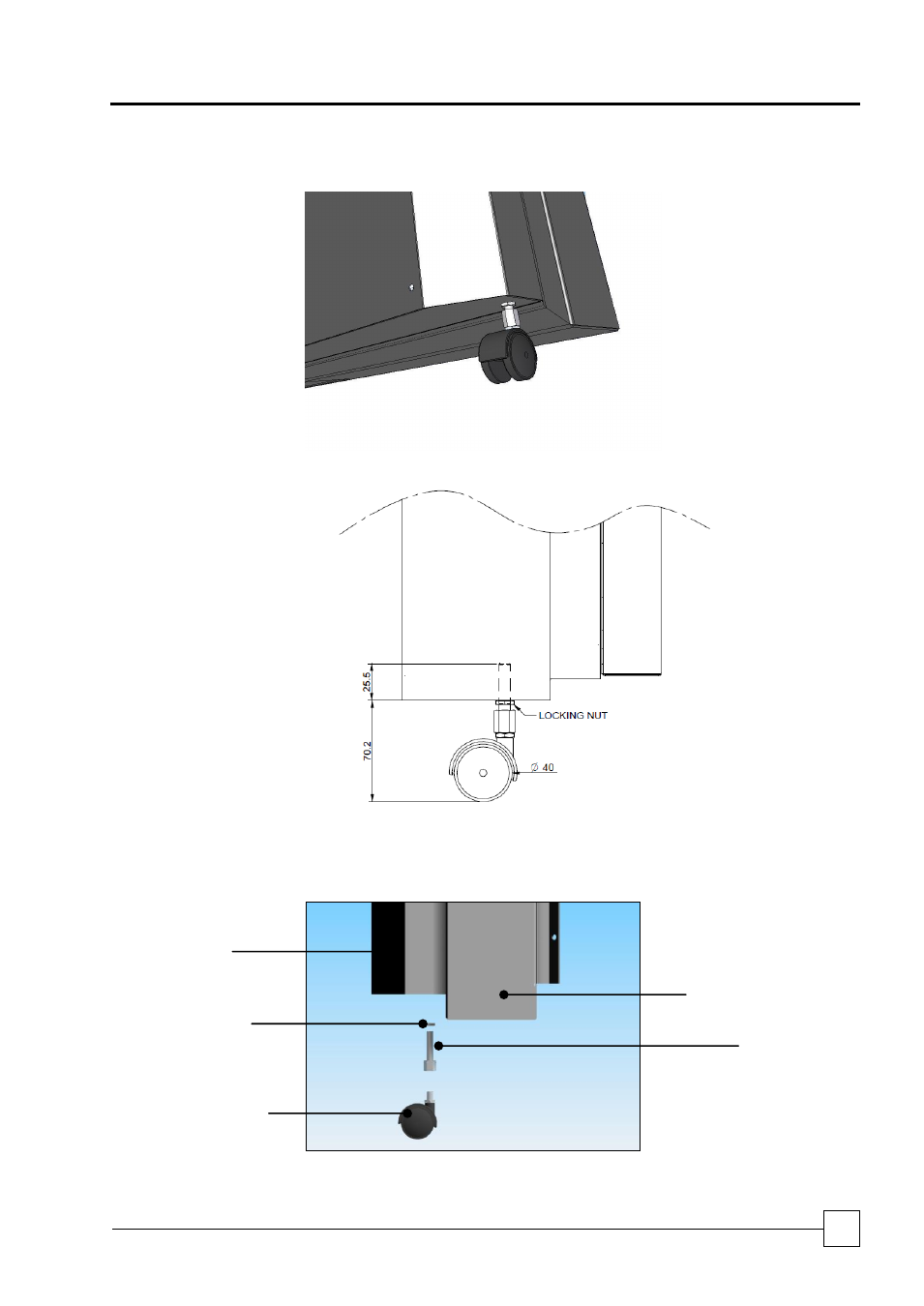

Rack Support Wheel
A support wheel is provided for fitment under the Onrak door. This is to be at the same
level as the door rack feet. The wheel is to be fitted ensuring that it has free movement.
Wheel Adjustment
The castor can be adjusted by the following procedure
Slacken locking nut
Rotate castor to desired height Min 70mm, Max 90mm
Tighten Locking Nut
Mating Frame
Locking Nut
OnRak
Pillar
Jockey Wheel
