Flexible Water Connection
Pipework Sweep The stainless steel braided must be installed so that the hose has unobtrusive movement
in either fully opened or closed positions

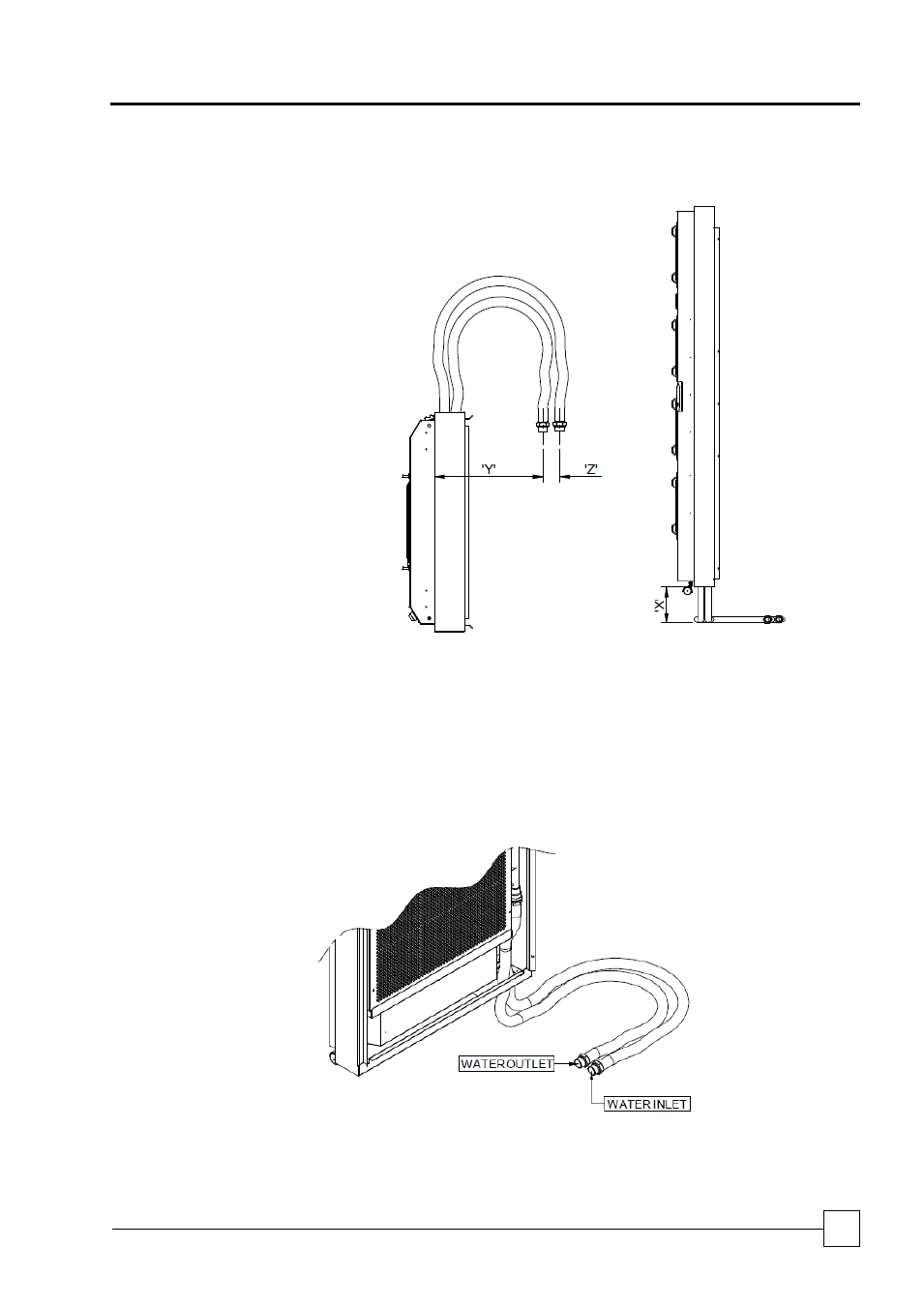

Plan View Side View
Recommended Dimensions
X = Floor Void Depth
Y = 500mm
Z = 110mm
Minimum recommended hose length X + 1m
(Hoses available as standard in 1.5m and 3m lengths)
