LogiCool
™ OnRak
Active Cabinet Exhaust
IT Cooling
34
IT Cooling
Technical, Installation and Maintenance Manual :6912497 V1.5.0 02_2013
Customer Terminal Box
The customer terminal box is attached to the coil guard during shipment. Carefully
remove this and feed the box through the hole in the mating frame. This must be done
after the door is fitted to the mating frame.
Dual Power Supply
The dual power supply can be either fitted into a rack or fitted in the floor void under the
server rack. The following procedures apply.
CAUTION
The dual power supplies must be electrically earth bonded. (Earth stud fitted to back of
power supply)

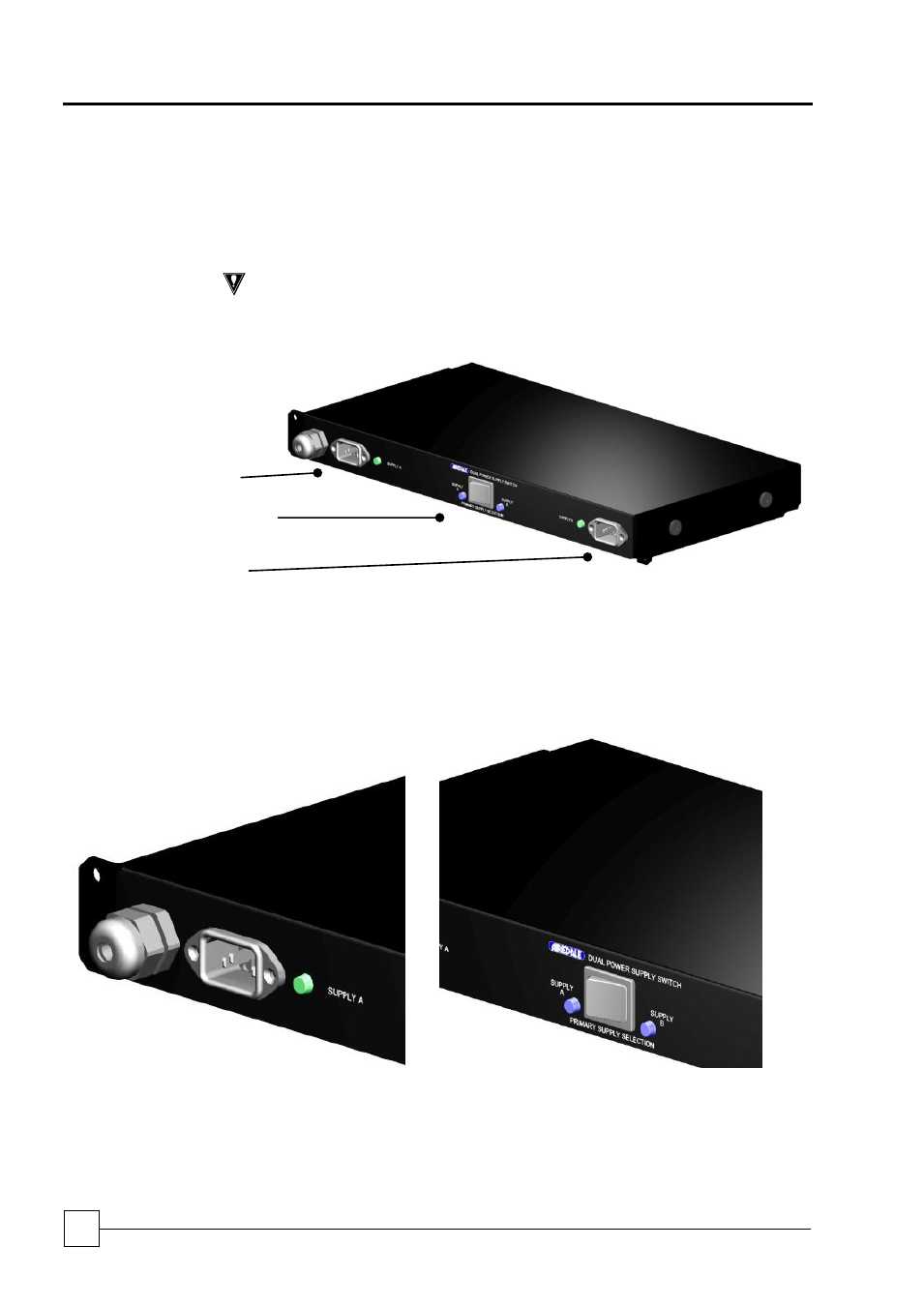

Rack Mounted
Selection can be made to determine primary power supply by using the centre selection
switch..
Supply B
Supply A
Supply B
Primary Supply
Selection Switch
