4.2 Function Groups
The main function and sub-function groups are organised in a matrix format for
configuration and selection of parameters. The main function groups are:
ƒ Offset adjustment (OFS). See Section 7.1.
ƒ Temperature Measurement / compensation settings (SEt °C). See Section 7.4.
ƒ Control relay 1 configuration (SP1). See Section 7.5.
ƒ Control relay 2 configuration (SP2). See Section 7.5.
ƒ Control type (Cntr). See Section 7.6.
ƒ Current output (rng). See Sections 7.7.
ƒ Configuration (ConF). See Section 7.8.
ƒ Calibration (CAL dO). See Sections 6 & 7.9.

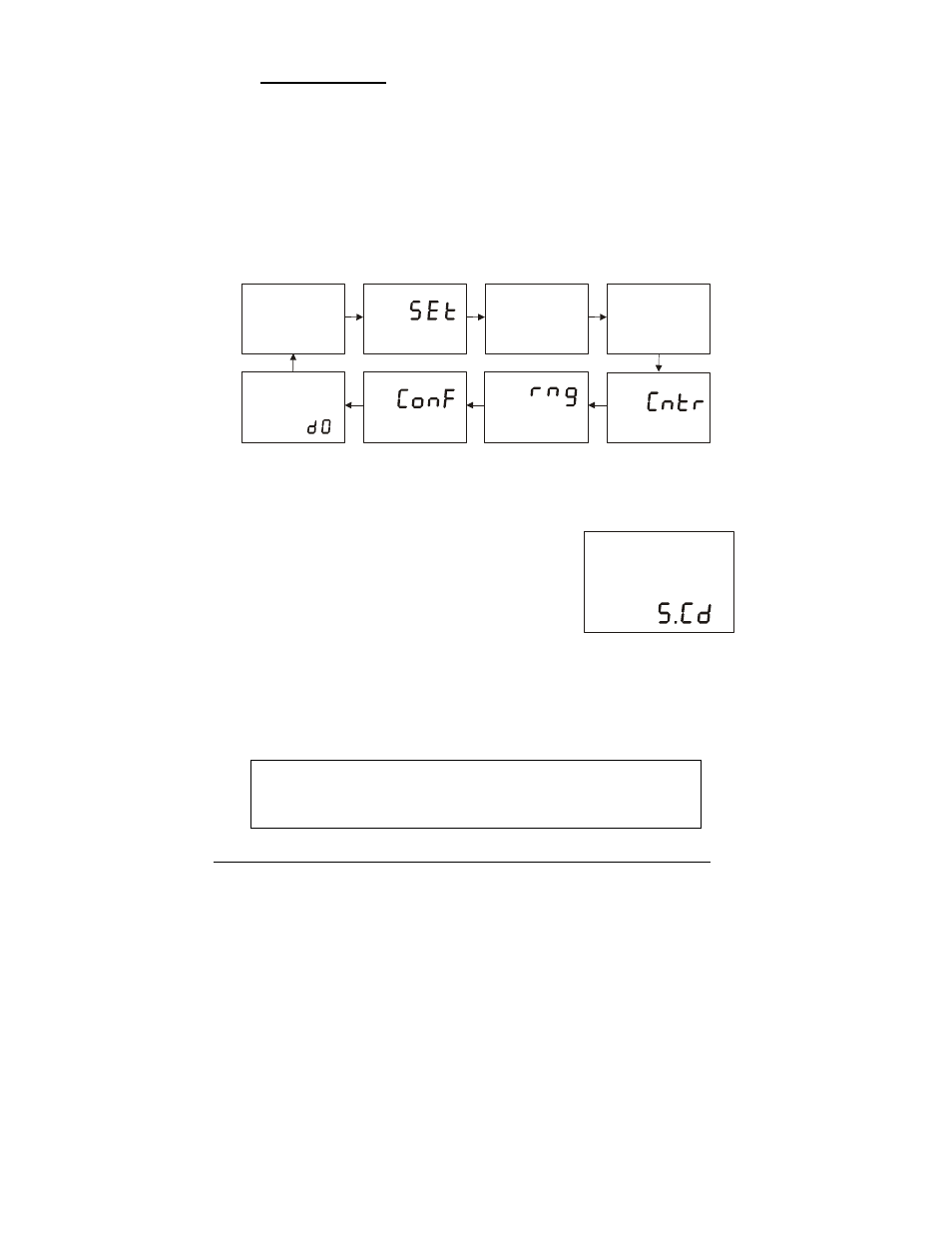

HOLD SETUP HOLD SETUP HOLD HOLD SETUP SETUP
Sp1 ofs Sp2
HOLD SETUP
° C
HOLD SETUP
Cal
HOLD SETUP HOLD SETUP
The set-up parameters can be viewed or changed by entering a security code. See
Section 5.2 for security code information.
4.2.1
How to view operating parameters without access to change them:
1. Press the ENTER key. The display will prompt
the user to enter a security code (S.Cd). Leave
the security code at “000” (do not enter a
security code).
2. Press ENTER key again. This allows you only
to view (not change) any sub-functions’ settings.
3. Press the ▲ or ▼ keys to scroll through the sub-functions.
4. Press the ENTER key at a particular sub-function to view in detail.
5. Press the ENTER key to return to the sub-function menu.
6. Press the ▲ or ▼ keys simultaneously (as an Escape key) at any time to
return to the Measurement mode.
Note: To simplify operations, the controller will not display parameters
that are not relevant to a particular sub-function. For example: If
the user set the controller for Limit control, it will not display pulse
length/frequency settings.
000
