2
2 ASSEMBLY AND INSTALLATION

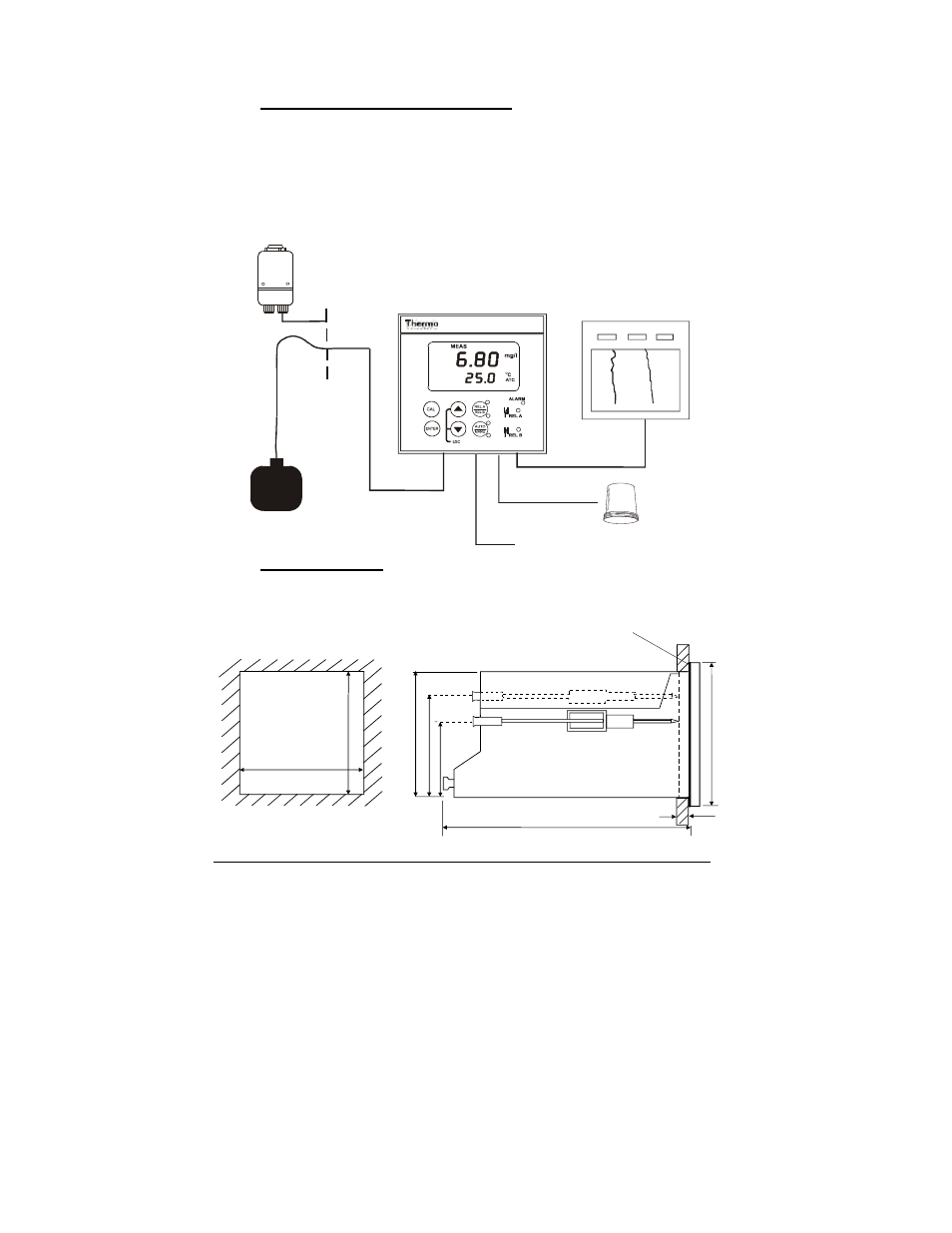

2.1 Measurement and Control System
A typical measurement system consists of:
•
an Alpha DO 1000 process controller
•
a Dissolved Oxygen probe with integrated temperature sensor Pt100
•
an immersion, flow or process assembly
•
a final control element such as pump or valve, and
•
a chart recorder
Power Mains
(220/110 VAC)
Alpha DO 1000 Controller
Flow Assembly
Measurement Cable
DO Electrode
Chart Recorder
Alpha DO 1000
Alarm / Siren
System
2.2 Unit Dimensions
The field-tested control panel housing is 96 x 96 mm; with protection class IP 54
(front).
max. 175
max. 45
Mounting Cut-Out
Flat Gasket (1mm)
(To be Inserted By Customer)
Note: The Taped Corners Have to Be On Top
92
32
56
96
92 + 0.5
92 + 0.5
