6.5 Speed Setting
The Movement Mode becomes either 1Cycle Mode (SIg) or Continuous Mode (CON) and during the Stop
Movement, while pressing the MAX Key, it enters/turns into the Speed Setting.
Setting the PUSH Direction Movement Speed by UP/DOWN Key, if the MAX is pressed, it turns into the PULL
Direction Movement Speed Setting.
PUS
PUL

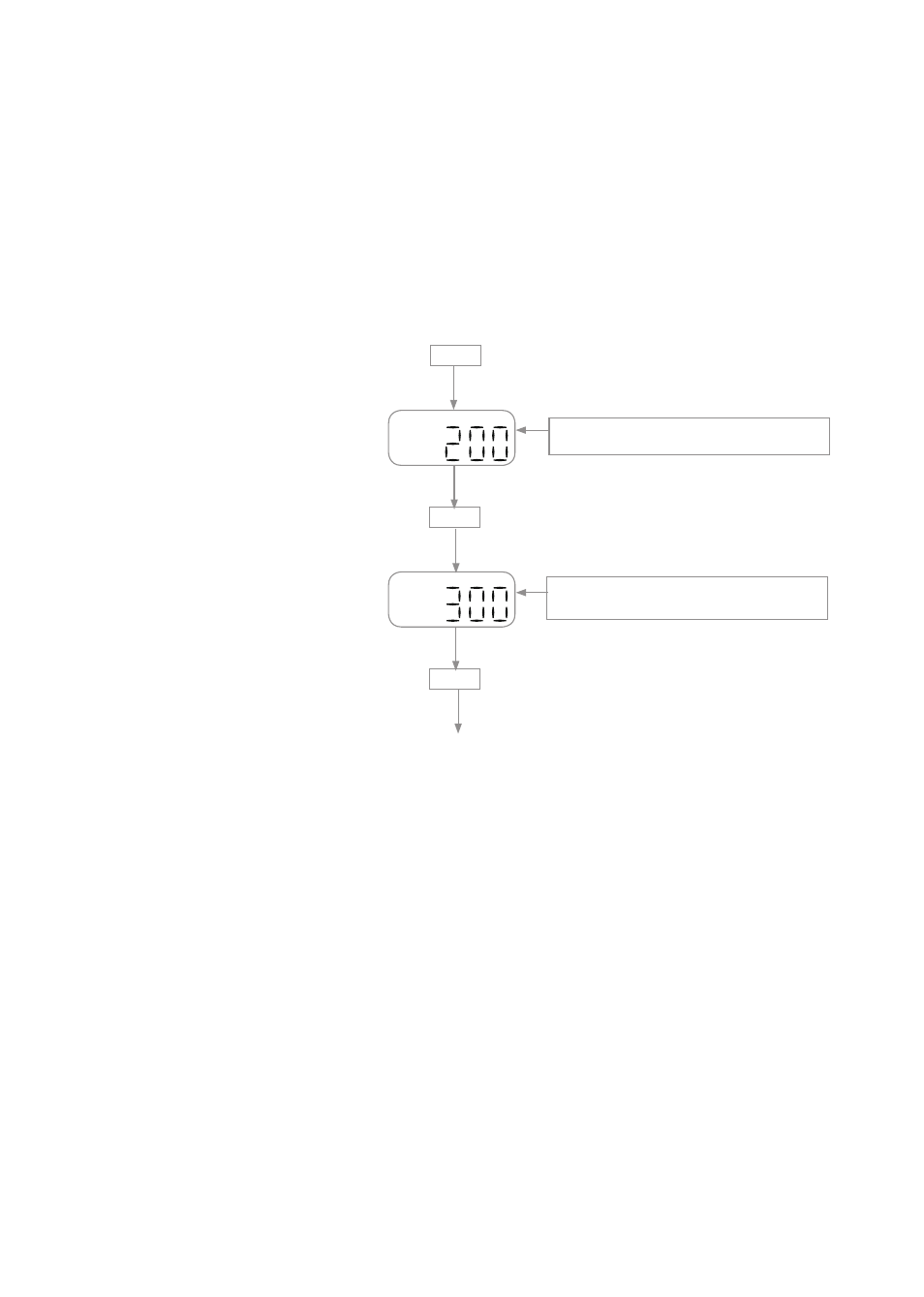

Setting of PUSH Movement Speed
Speed of the PUSH Direction movement could be
set by UP/DOWN Key.
After memory input, the display returns to normal.
Setting with the UP/DOWN Key, if the MAX is pressed, then the two-way movement speed is memorized.
In case the setting is to be cancelled during adjustments, press the STOP Key and it will be cancelled.
MAX
Setting of PULL Movement Speed
MAX
MAX
Speed of the PULL Direction movement could be
set by UP/DOWN Key.
