6.4.4 Continuous Mode (CON)

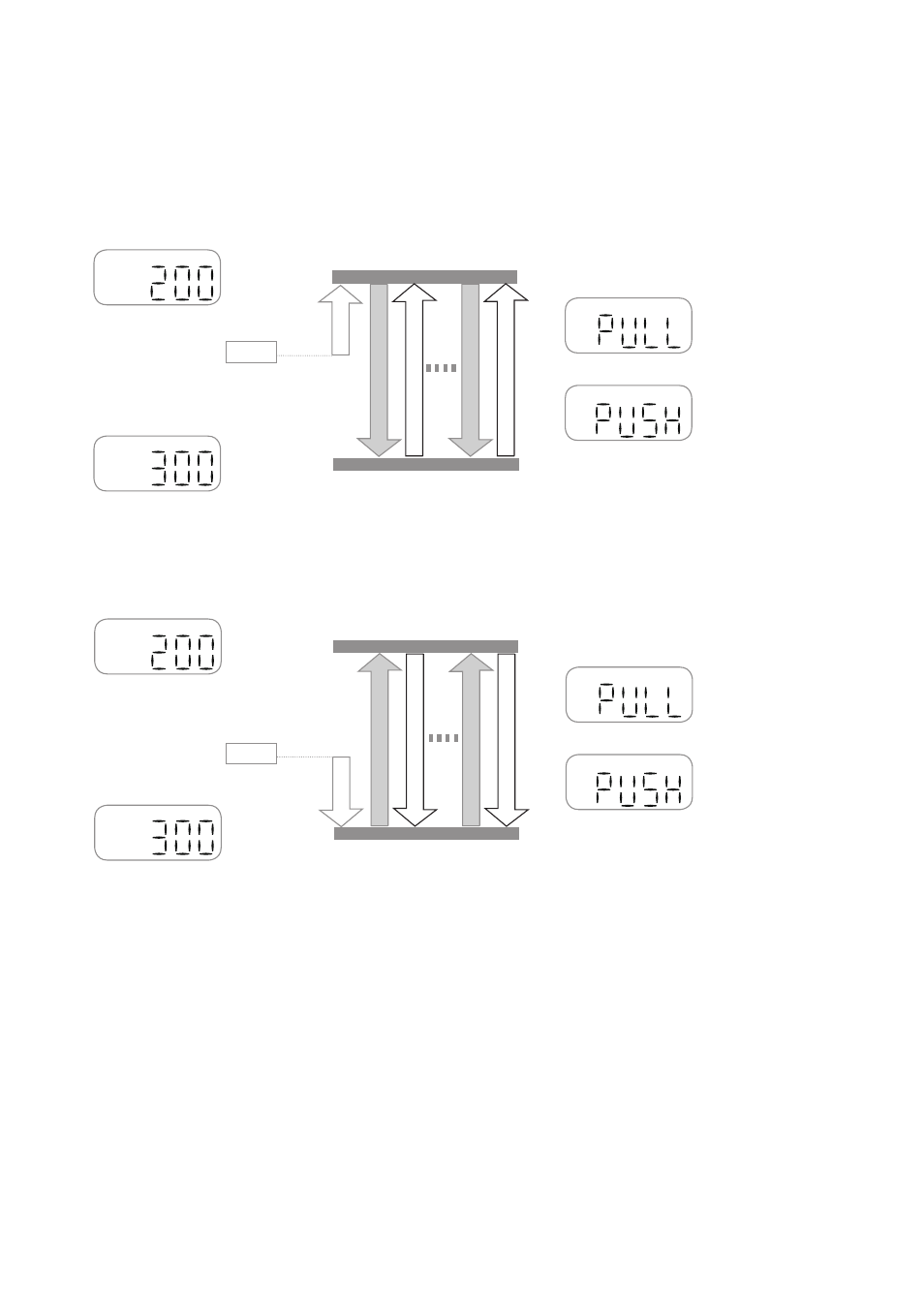

Stand performs the continuous repeated movement in between the Adjustable Limit Knobs.
When the PUSH Key or PULL Key is pressed, the stand moves towards that respective direction, hits the knob,
then continues on in the opposite direction. This process will continue and cycle until the STOP Key is pressed.
CON
CON
Upper Limit Knob.
Lower Limit Knob.
Stops at Limit Knob position.
After stopping for 1 second, it turns back and moves
towards PUSH Direction.
PULL
LMT
LMT
PULL Speed
PUSH Speed
Stops at Limit Knob position.
After stopping for 1 second, it turns back and moves
towards PULL Direction.
CON
CON
Upper Limit Knob.
Lower Limit Knob.
Stops at Limit Knob position.
After stopping for 1 second, it turns back and moves
towards PUSH Direction.
PUSH
LMT
LMT
PULL Speed
PUSH Speed
Stops at Limit Knob position.
After stopping for 1 second, it turns back and moves
towards PULL Direction.
Change speed by UP, DOWN Key. SIg Mode and CON Mode Speed Setting are commonly used.
During movement, speed variation is not possible. When no movement is occurring (at idle), the display shows
movement Mode and the latest operated speed. When the movement starts, the respective memorized
movement . Speed is displayed.
