SHIMPO DT-900 User Manual

Page 17

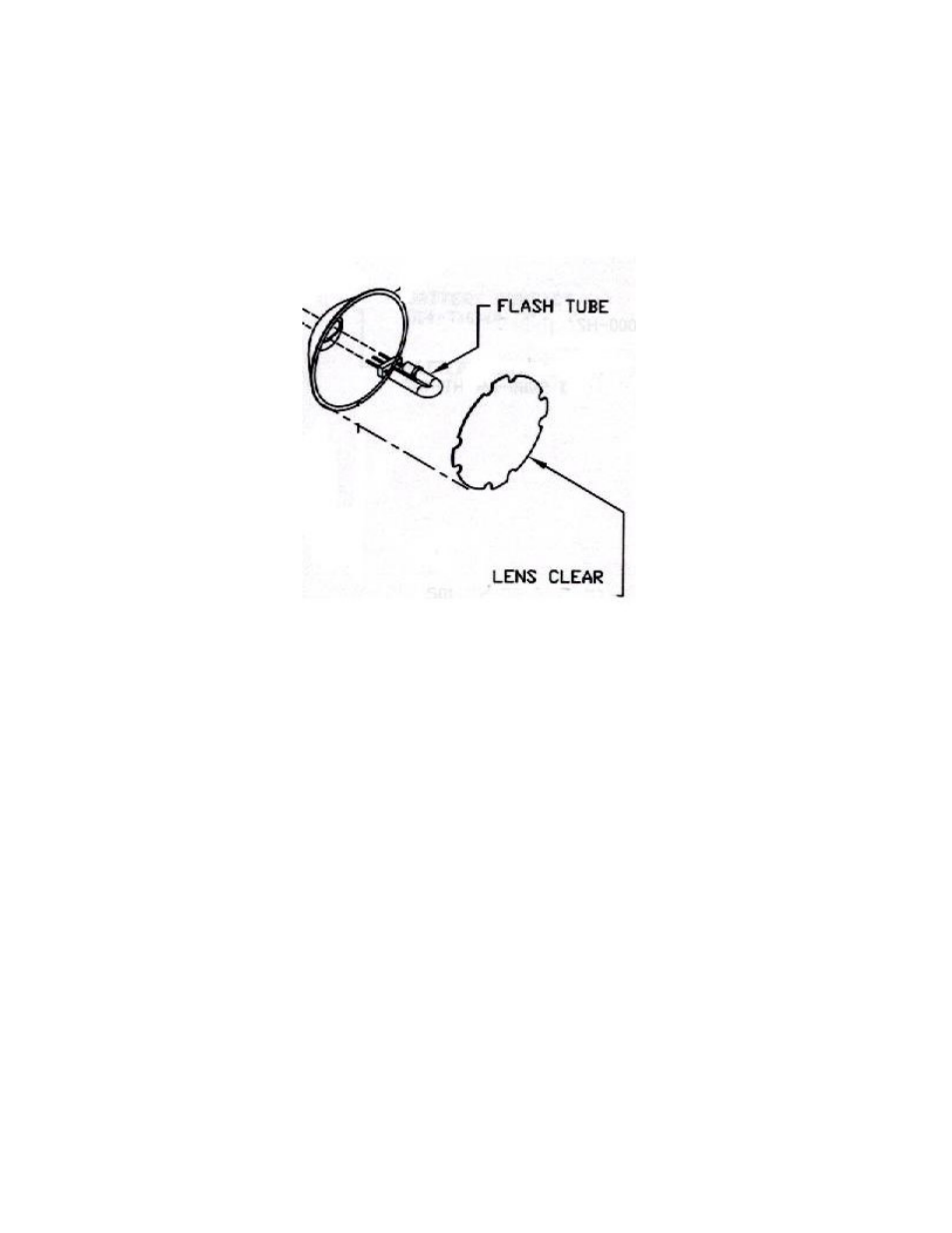

1. Remove the front lens from the strobe by inserting the tip of a pen, screwdriver or similar device into

one of the vent holes. Gently pry the lens out (Be careful not to damage the edge of the lens.). Pry

each side out, one by one until the lens can be removed.

2. NOTE: The reflector does not need to be removed to replace the bulb. It should remain in place.

3. Protect the bulb from any oil or residue by using a piece of cloth between your fingers and the bulb.

Grasp and pull the bulb to remove it

4. Handle the new bulb with a piece of cloth. Insert the new bulb in the connector by pressing it in place.

Be sure to orient the red dot on the bulb connector with the red dot on the strobe connector. If the bulb

is inserted backwards, it will fail to operate as specified.

5. Ensure the bulb is centered in the reflector.

6. Re-install the protective lens. Line up the four tabs of the lens with the four slots of the strobe. Insert

one tab in place, and then press the lens back into the strobe so that the remaining tabs snap into place.
