4 Function Instructions
4.1 Power on/off

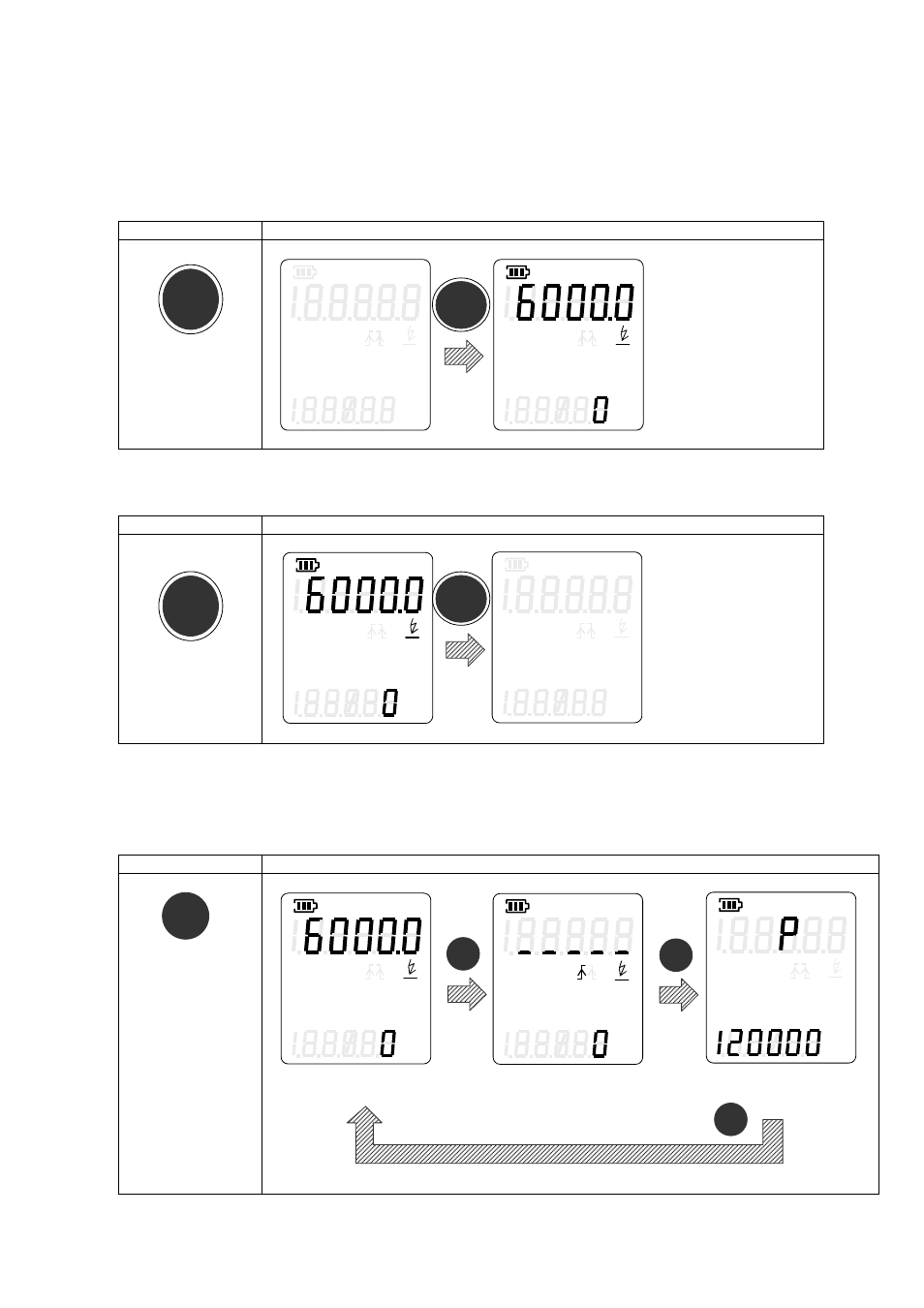

Press “POWER” key to turn on unit. The unit will begin to flash in internal mode and the display will indicate
the flash rate (FPM = flashes per minute).
Operation Indication
Power off
Press and release
Press “POWER” key again to turn off unit. The display will turn off, and the device will stop flashing.
Operation Indication
Power on
Press and release
4.2 Mode Selection
Press and release “MODE” key to toggle between INTERNAL, EXTERNAL and PARAMETER mode.
*Refer to 4.5 “Parameter setting mode” for details.
Operation Indication
Press and release
to switch modes
Display will indicate the
flash rate in internal
mode, and the LED light
source will begin
flashing.
Internal flashing mode
External trigger mode
Parameter setting mode
Display will turn off and
unit will stop flashing.
Auto Range
Trigger
Edge Deley Deg
Flash Time
Ave Last Min Max
min
sec
h Hz
○ ○ ○ ○
Auto Range
Trigger
Edge Deley Deg
Flash Time
Ave Last Min Max
min
sec
h Hz
○ ○ ○ ○
