Setting camera termination – Revo RESPTZ37-1/HSC/HSW User Manual User Manual
Page 9
REVO America
www.revoamerica.com
RESPTZ37-SERIES
7

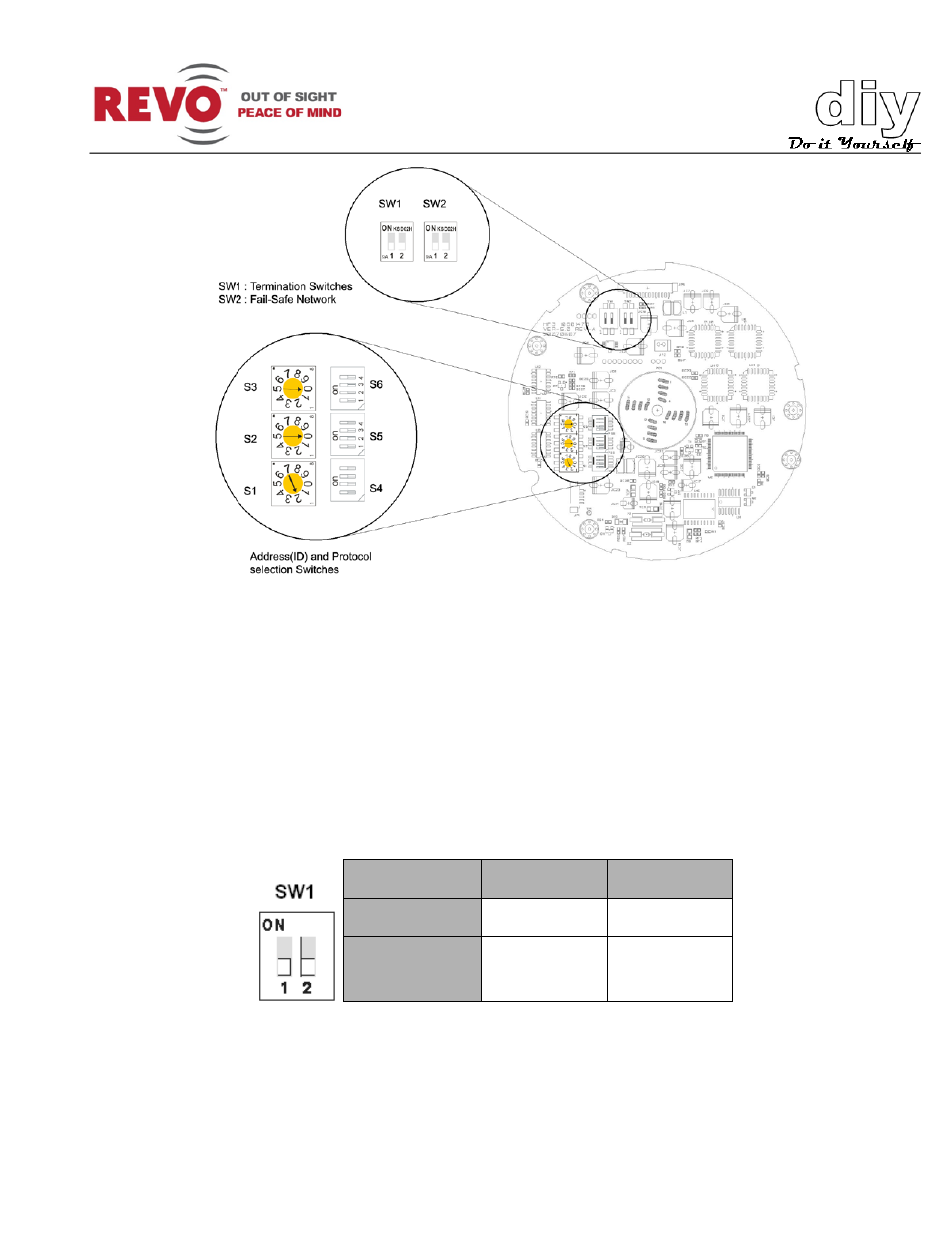

Figure 2. Switch Layout
Setting Camera Termination
When you set up your video system, you will be connecting the cameras, keyboard controller and
any other devices in a daisy-chain arrangement (as shown in Figure 3). All of the devices are set
up in a line. The last device in the line must be set so that the control device knows it is the last
device. Set this using DIP switch SW1 (Figure 2). If this camera is to be the last device, set SW1
DIP switches 1 and 2 to ON as shown below. If it is not the last device, set the switches to OFF.
SW1
1
2
Terminated
ON
ON
Not
terminated
OFF
OFF
