Metex Shark Multi-Parameter Controllers & Analyzers - Manual (Page 50)

S H A R K
MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

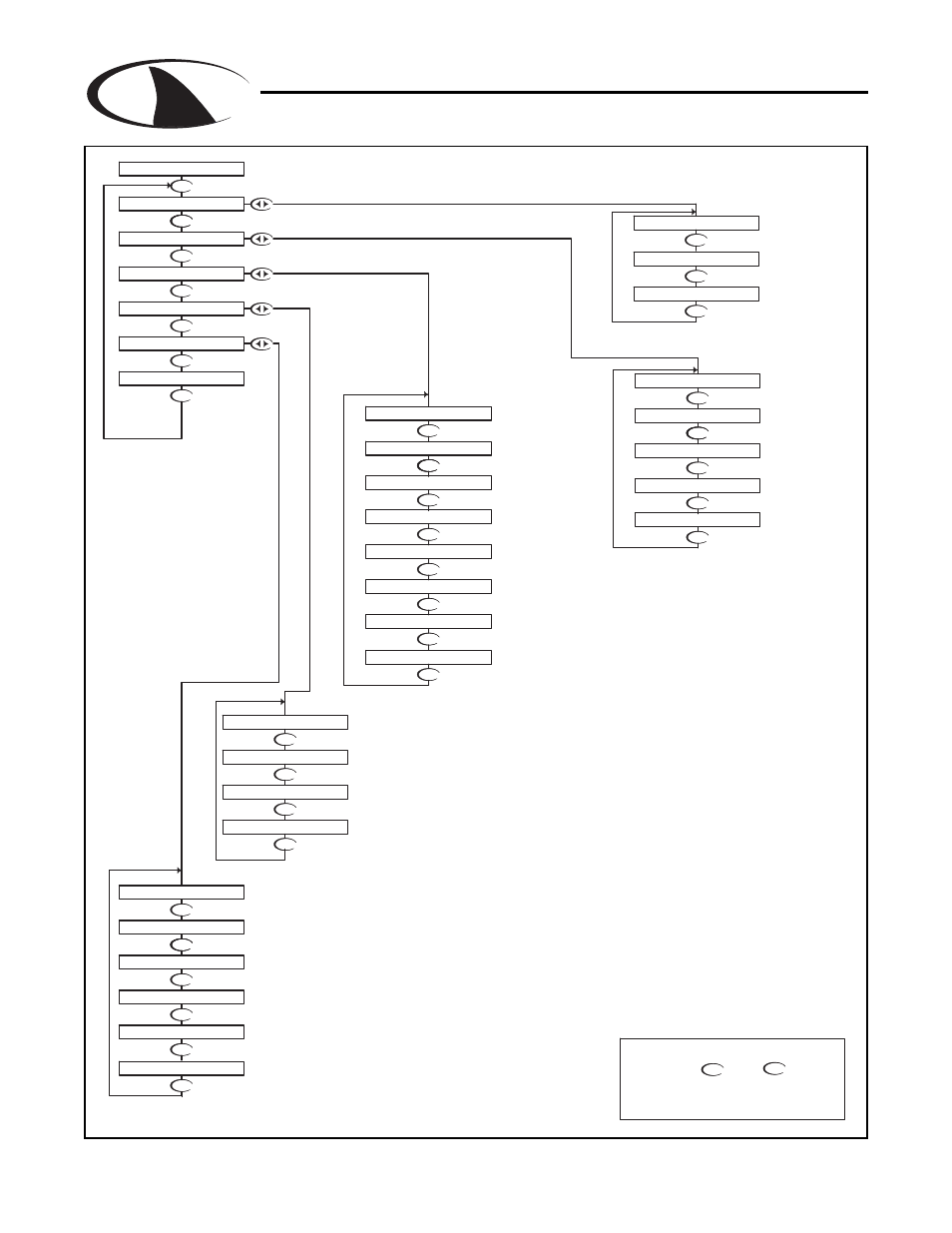

ORP - Menu Overview 5.0
ORP - Menu Overview 5.0 Page 48
DOWN
DOWN DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN DOWN
DOWN
DOWN
DOWN DOWN
DOWN
DOWN
DOWN
DOWN
DOWN DOWN
DOWN
DOWN
DOWN
SELECT DEG C OR DEG F
ENABLE TIME OUT
ON LCD AND LED DISPLAYS
DISABLE TEMP. DISPLAY
SETUP DISPLAY AND
OUTPUT RESPONSE TIME
SELECT TYPE OF
4-20 mA CH 1 OUTPUT
4-20 mA CH. 2 OUTPUT
SETUP
ALARM RELAY
SEC 5.19
SETUP
SEC 5.20
SETUP
SEC 5.21
SETUP
RELAY A
SEC 5.17
SETUP
RELAY B
SEC 5.18
FROM MENU
DISPLAY
FIRMWAVE REVISION
SEC. 5.14
DISPLAY PREVIOUS
CALIBRATION DATA
SEC 5.15
DISPLAY UNCALIBRATED
PROBE DATA
SEC 5.16
SEC. 5.10
SELECT TYPE OF
TEMP SENSOR
SEC. 5.9
SEC 5.11
SEC 5.12
SETUP RESOLUTION
OF FRONT PANEL BAR GRAPH
SEC 5.13
SEC. 5.7
SEC 5.8
ORP PROBE
RUN MODE
SEC. 5.2
UP
NOTE
PRESS THE AND KEYS
TOGETHER TO GO IMMEDIATELY BACK TO
RUN MODE
DOWN
RELAYS
SELECT TYPE
OF METER
SEC. 5.4
SEC. 5.5
VERIFY OUTPUTS
SIMULATE PROCESS
MANUALLY OVERRIDE
SEC. 5.3
MANUAL CALIBRATE
SENSOR IN ORP PROBE
CALIBRATE TEMP.
ORP PROBE
SEC. 5.1
DIAGNOSTICS
EXIT
EXIT
ALARM RELAY
4-20mA CH1
4-20mA CH2
RELAY A
RELAY B
SENSOR INPUT
CALIBRATION DATA
FIRMWARE REV
EXIT
OUTPUTS
DISPLAY DAMPING
BAR GRAPH O/R
T. DISP OVERRIDE
EXIT
AUTO RETURN
TEMP SENSOR
TEMP UNIT
PROBE SELECT
500mV 25.0C
UTILITIES
SETUP
CALIBRATION
MANUAL TEST MODE
METER SELECTION
RELAY OVERRIDE
EXIT
EXIT
TEMP CALIBRATION
MANUAL CAL ORP
DOWN
RESETS RELAY
OVERFEED TIMER
SEC. 5.6 RESET OVERFD TMR
