BetaLOG TI
User Manual
Revision 1.00, October 22, 2010
Page 11 of 16
shown for selecting the file name and the folder where the file is to be
placed. Click the Cancel button of either screen to skip the export. The
Export Options screen is described further under Export Options in section
4.6.
To export all runs, click the Save All button. The Export Options screen is
shown to allow the options to be customized for exporting these runs; the
same options are used for all runs. For each run, a standard Save As
screen is shown for selecting the file name and the folder where the file is
to be placed. Click the Cancel button of the Save As screen for an
individual run to skip the export of that run. Click the Cancel button of the
Export Options screen to skip the export of all runs. The Export Options
screen is described further under Export Options in section 4.6.
Export to an Excel file requires Excel 2002 or later to be installed on your
computer.
The default location for files is the folder “Martel BetaLOG TI” in “My
Documents”.
4.5

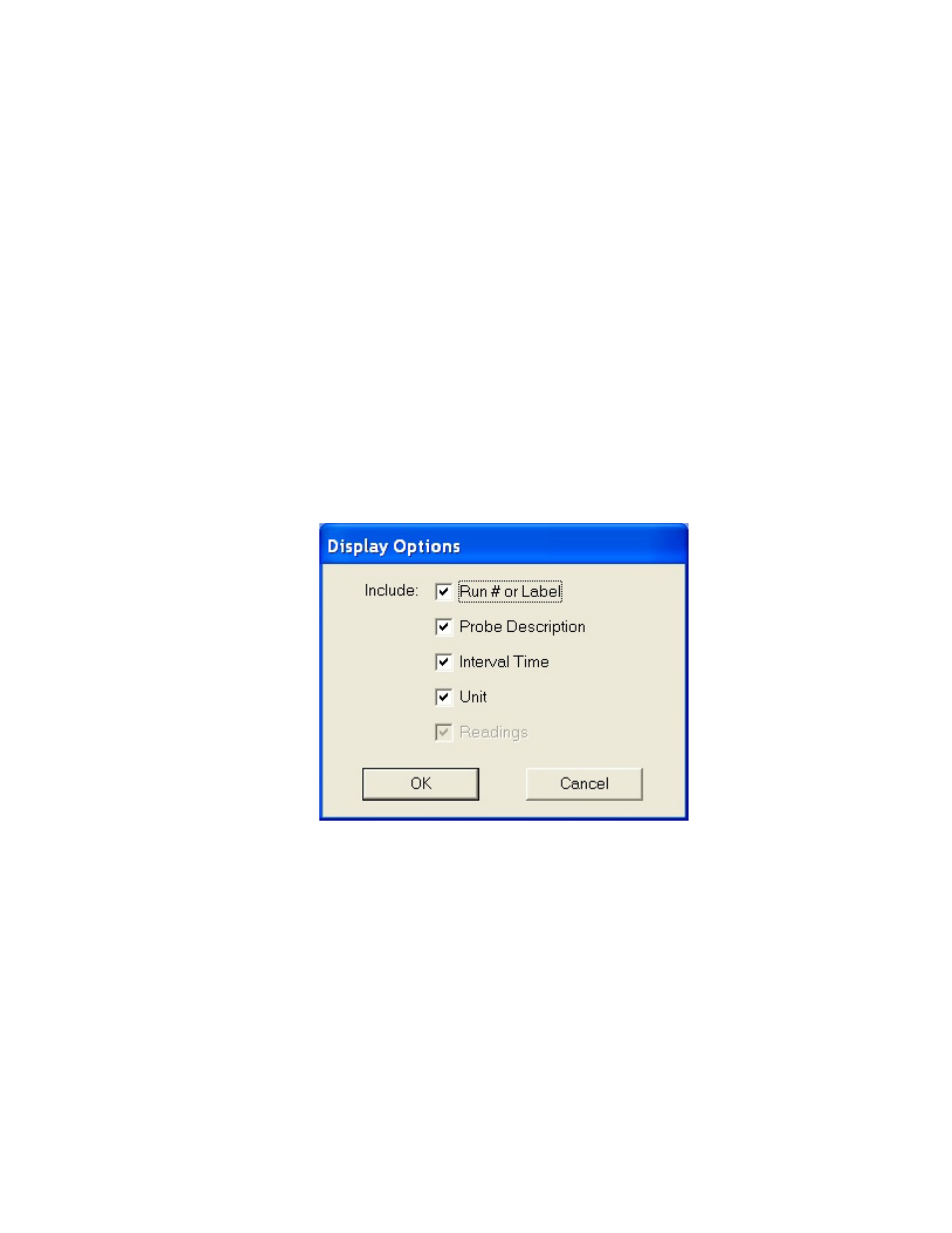

Display Options
This screen is used to modify the default selections for the run description
fields shown on the Log Upload Display when the display mode is set to
Selected Data. When data is initially uploaded the selections are set to
these default values. After the initial data display, the selections may be
temporarily changed for the duration of the data display. Place a
checkmark next to each field that is to be shown on the display when the
display mode is set to Selected Data. Logged temperature readings are
always displayed.
