32
9.3. Operating instructions for LOOP and PSC/PFC
9.3.1 Initial Checks: to be carried out before any testing
1. Preparation
Always inspect your test instrument and lead accessories for abnormality or damage:
If abnormal conditions exist DO NOT PROCEED WITH TESTING. Have the instrument
checked by your distributor.

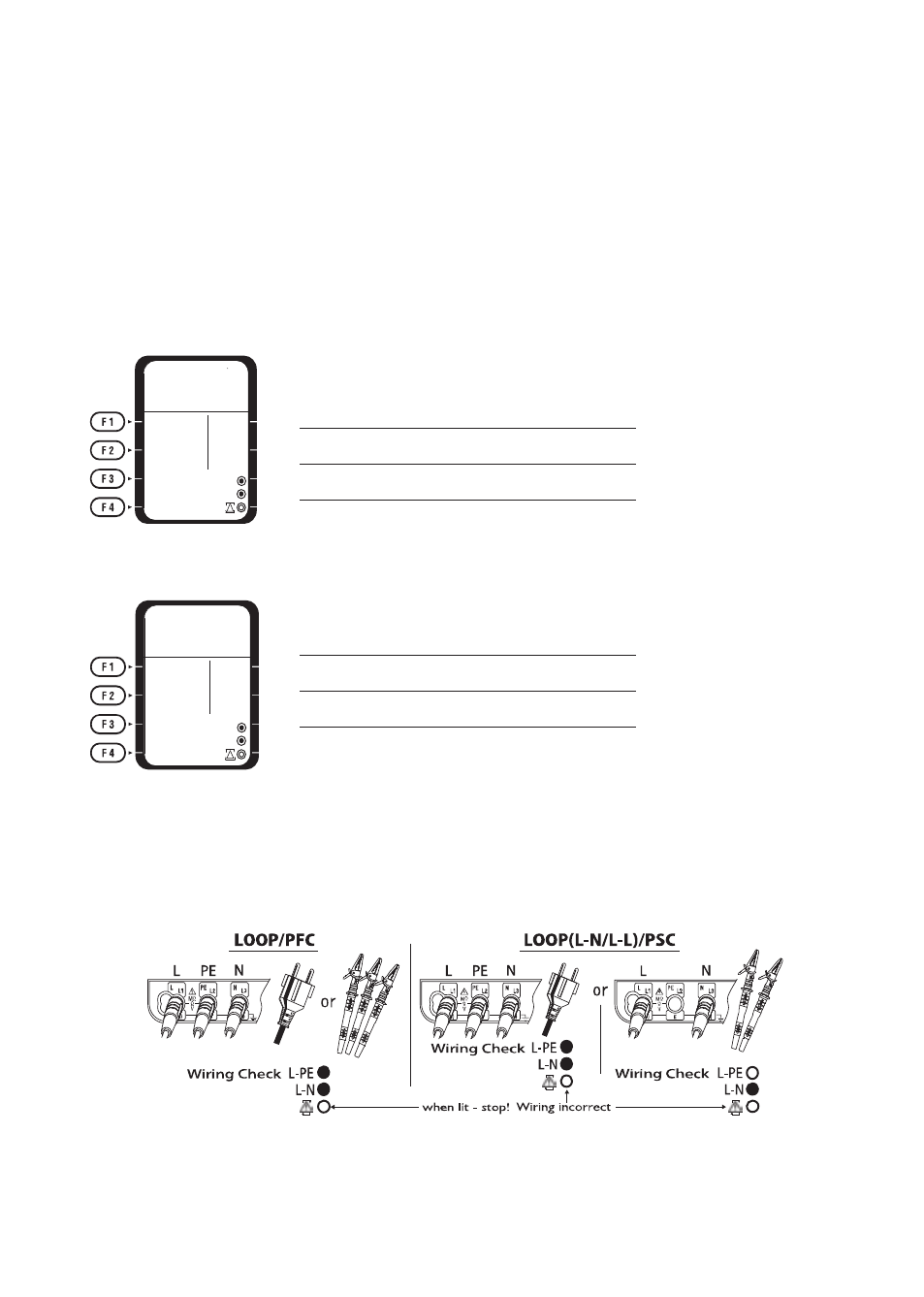

Operation of Function Switch
LOOP
F1
Switches measurement mode:
L-PE or L-N/L-L
F2 ATT setting (on or off)
F3 N/A
F4 N/A
PSC/PFC
F1
Switches measurement mode:
PFC or PSC
F2 ATT setting (on or off)
F3 N/A
F4 N/A
(1) Operate the Power button and turn on the instrument. Turn the Function switch and
set it to either the LOOP or PSC/PFC position.
(2) Insert the Test Lead into the instrument. (Fig.29)
L-PE
Ω
ATT : ON
230V
50.0Hz
L-PE
L-N
!
Fig.27
PFC
A
230V
50.0Hz
L-PE
ATT:ON
L-PE
L-N
!
Fig.28
Fig.29
