TECHNICAL DATA

7

47

OPTITEMP TT 10 C/R

www.krohne.com

02/2013 - 4000752703 - MA OPTITEMP TT 10 C/R R03 en

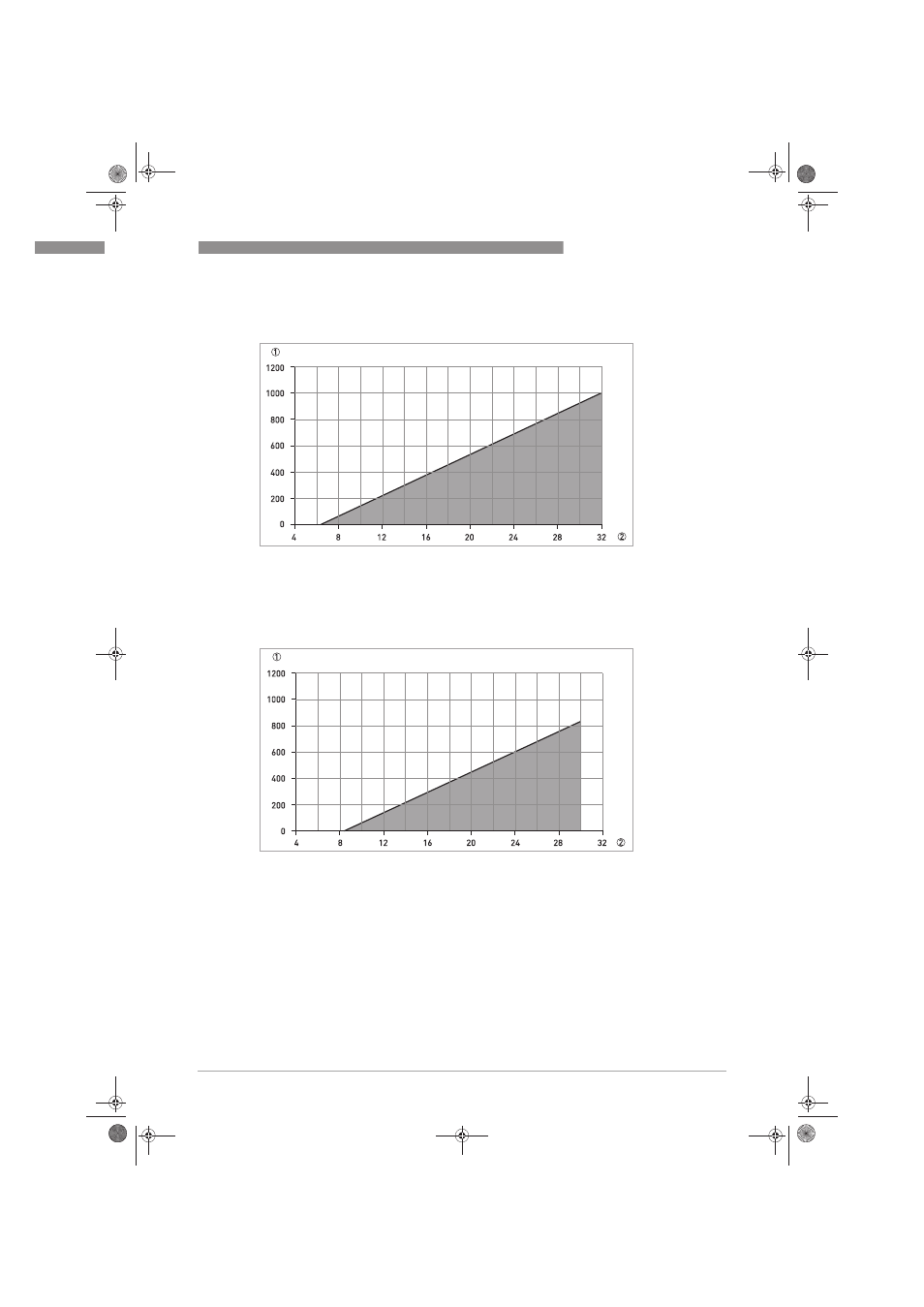

7.5 Output load diagrams

Formula for the maximum permissible output load of the in-head version (Non-Ex):
permissible R

Load

[Ω] = (U-6.5)/0.025

Formula for the maximum permissible output load of the in-head version (Ex):
permissible R

Load

[Ω] = (U-8.5)/0.025

In-head transmitter (Non-Ex)

1 Total output load R

Load

[Ω]

2 Supply voltage U [VDC]

In-head transmitter (Ex)

1 Total output load R

Load

[Ω]

2 Supply voltage U [VDC]
