RS 232 CONNECTIONS. Connect the BOP
1KW to a modem using a Null Modem patch cable at
the RS 232 port located on the rear panel (See Fig-
ure 3). A Null Modem cable is not required for older
MAC computers with D-sub serial port in which the
RXD and TXD line transposition is accomplished via
external hardware. The default baud rate is 38400;
refer to the Operator Manual to change it.

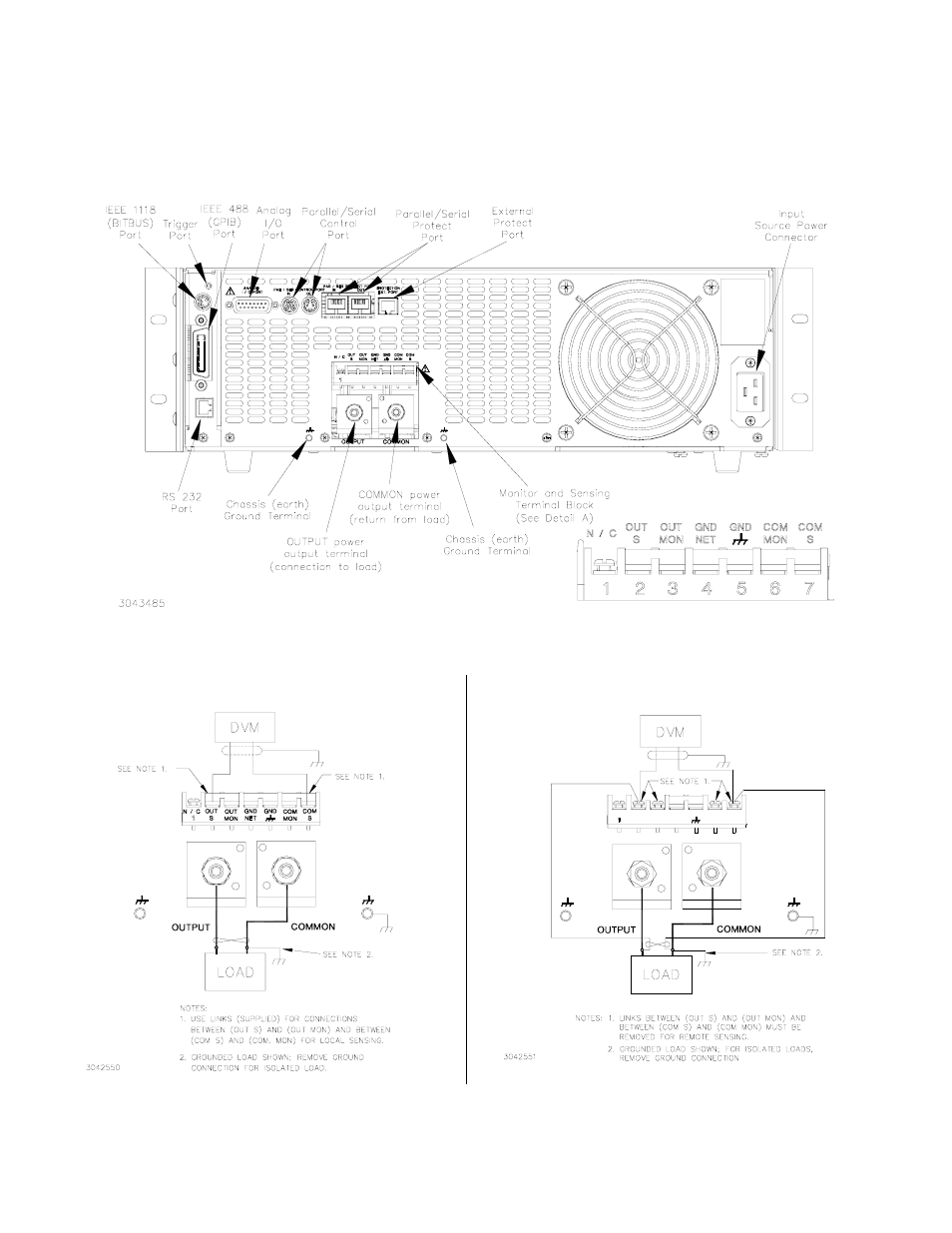

FIGURE 3. BOP 1KW SERIES, REAR PANEL VIEW, LINKS INSTALLED FOR LOCAL SENSING
FIGURE 4. LOAD CONNECTION
A. LOCAL SENSING B. REMOTE SENSING
GND
NET
OUT
MON
N / C OUT
S
COM
S
COM
MON GND
