GDM-834X Series Excel Add-In Manual
4
I
NTRODUCTION
This manual is suitable for both the GDM-8341 and GDM-8342. This manual
is to be used with all versions of Excel from 2003 and onwards with Windows
PCs (Windows XP, Vista and 7: 32 or 64 bit). Please note that Macros must be
enabled for the Add-In to function.
The GDM-834X Excel AddIns software is an Add-In for Microsoft Excel.
The Add-In allows you to log measurements from the DMM and to plot the
resulting data as a graph or a histogram using the built-in Excel graphing
functions.

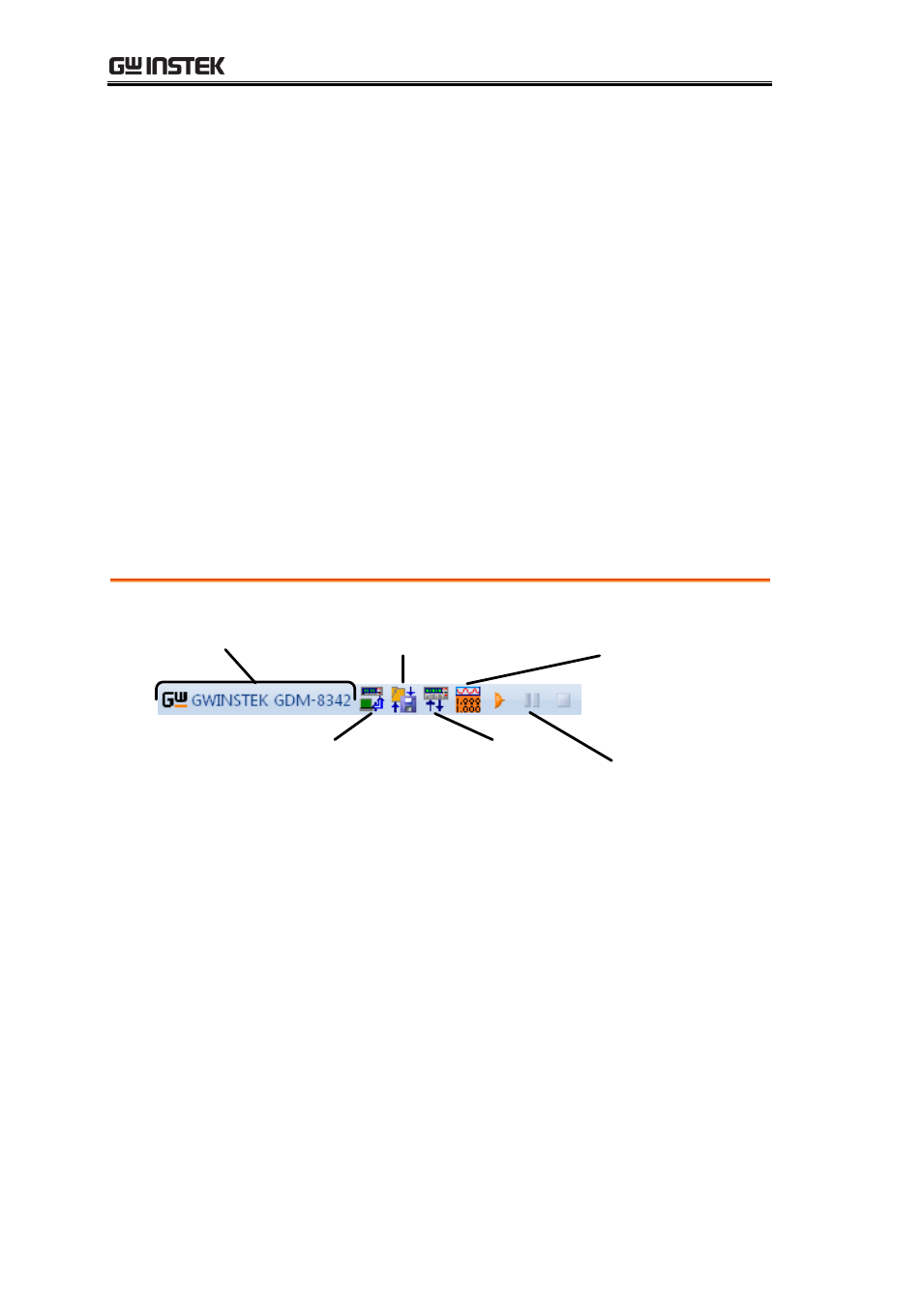

Overview
About Icon
Connect to
Multimeter
Save/Load
Multimeter Settings
Setup/Run Logging
Worksheet
Setup
Multimeter
Play/Pause/
Stop

Connect to Multimeter: Clicking this icon will allow you to establish a
connection to the DMM.

Save/Load Multimeter Settings: Clicking this icon will let you save or
load settings to/from the multimeter.

Setup Multimeter: Clicking this icon will allow you to choose the
measurement function, range and rate to use for the data logging.

Setup/Run Logging Worksheet: Clicking this icon will allow you to setup
the data logging and graphing functions for the software.

Play/Pause/Stop: These control keys will allow you to start, pause and
stop data logging.

About: The about icon will display the software version.
