PSS-3203/2005 PROGRAMMABLE POWER SUPPLY
USER MANUAL
⎯ 12 ⎯

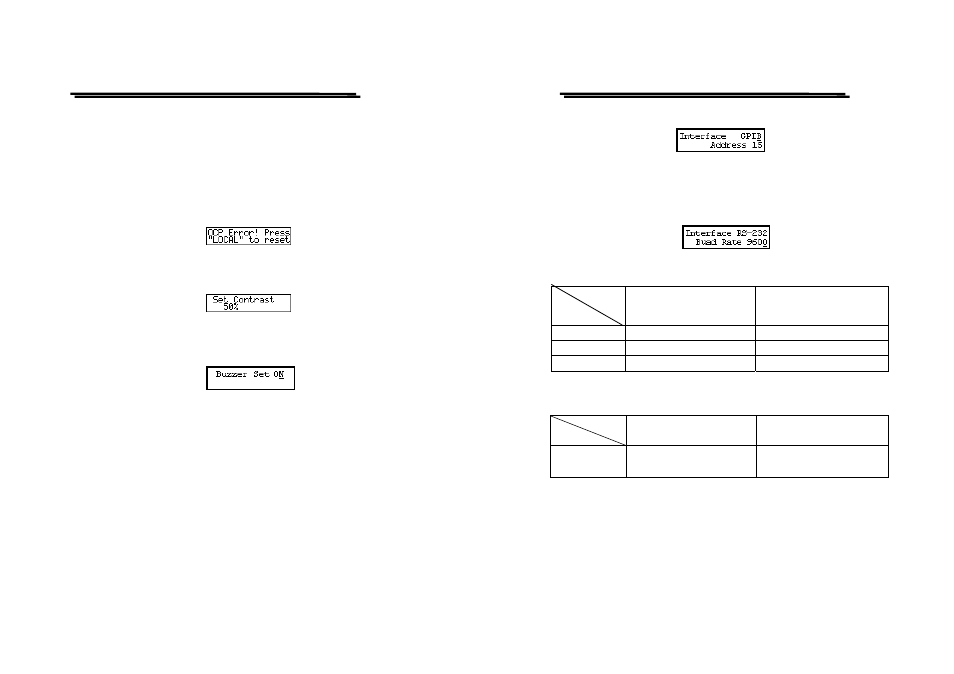

--Over Current Protection Setting:
Set to OCP SET window by pressing [MENU], Turn on/off the
OCP with the wheel knob and press [ENTER]. If OCP is on, when
the output current equals or exceeds the current value setting, the
output of the instrument will be off and get into over current
protection mode by displaying “OCP Error. Press “LOCAL” to
reset” on the display. Just press [LOCAL] to clear OCP status and
back to previous status.
5-3. The Display Contrast Setting
Set to Contrast Set window by pressing [MENU], modify its setting
value with the wheel knob and press [ENTER].
5-4. The Buzzer Setting
Set to Buzzer Set window by pressing [MENU], turn on or off the
buzzer with the wheel knob, then press [ENTER].
5-5.GPIB/RS232 Interface Setting
Set to Interface window by pressing [MENU]. If the GPIB is
displayed, the Address value window will be appeared, if the
RS-232 is displayed, the Baud Rate window will be appeared, then
using the wheel knob to modify the value and press [ENTER] to
complete the setting.
Note: The system will detect the interface used at present
automatically, and switch the detected interface over the
setting interface of GPIB or RS-232.
Example:
1) If want to set the GPIB address value to 15:
Set to interface window by pressing [MENU], and adjust the
address value to 15 with the wheel knob and press [ENTER] to
PSS-3203/2005 PROGRAMMABLE POWER SUPPLY
USER MANUAL
⎯ 13 ⎯
complete the setting.
2) If want to set the RS-232 Baud Rate to 9600:
Set to interface window by pressing [MENU], and adjust the
Baud Rate value to 9600 with the wheel knob and press [ENTER]
to complete the setting.
5-6. The Maximum Setting Value
MODEL
ITEM PSS-3203 PSS-2005
Output Voltage 33.00V 21.00V
Output Current 3.100A 5.200A
Over-voltage 34.00V 22.00V
5-7.Test Lead
MODEL
ITEM
PSS-3203 PSS-2005
Current 3A
Test Lead
Current 4A-10A
Test Lead
5-8. The setting for the GPIB and RS232 Interface
If you have PSS-series programmable power supply, use the GPIB
or RS-232 interface, please refer to the PSS-series Programmer
Manual for more details.
