PSS-3203/2005 PROGRAMMABLE POWER SUPPLY

USER MANUAL

⎯ 16 ⎯

[Step 2.1]

Now input the voltage value (Min) measured by DMM with the knob

and press [ENTER]. During the voltage value input, use the [F/C]

button to switch over the input of 1V step or 10mV step.

Note: The DMM selected for the measurement have the resolution of

three digits of the decimal point at least (1mV). Also the input value

is to take two digits of decimal point of effective value (10mV) and

run off the rest.

[Step 2.3]

Adjust VR311 and adjust the voltage value measured by DMM

according to the voltage displayed in the window, then press

[ENTER].

Note: The DMM selected for the measurement must have the

resolution of three digits of the decimal point at least (1mV).

During the adjustment, the maximum error of the measured

value is ±0.005V.

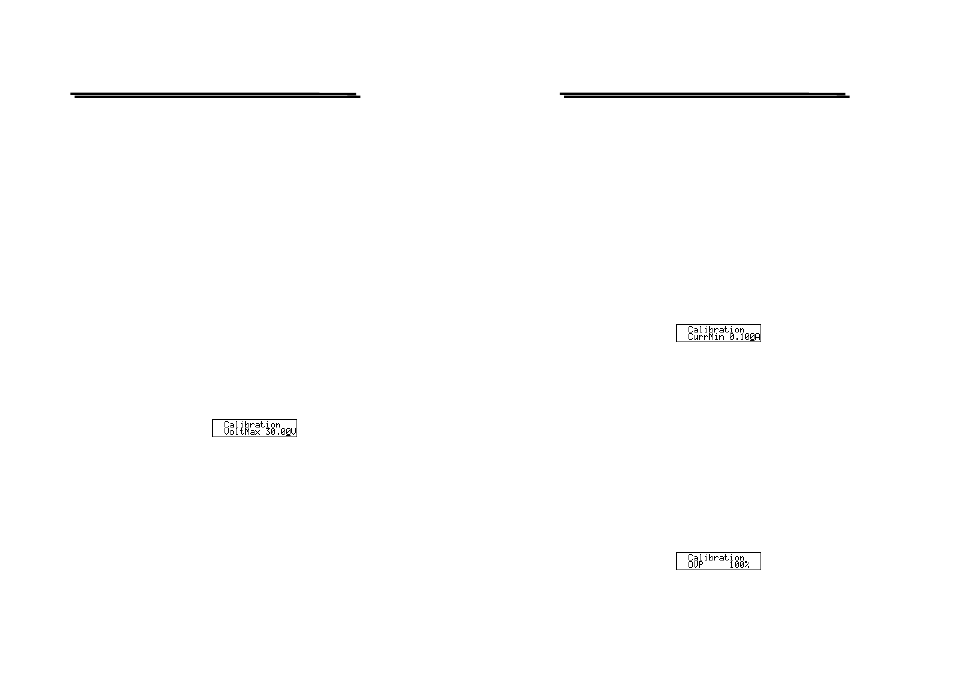

[Step 3] Current Calibration Steps

Switch the Calibration selection window to current calibration item

with the knob and press [ENTER] getting into current calibration

steps.

[Step 3.1]

Now input the current value (Max.) measured by the DMM with the

knob and press [ENTER]. During the current value input, use the

PSS-3203/2005 PROGRAMMABLE POWER SUPPLY

USER MANUAL

⎯ 17 ⎯

[F/C] button to switch over the input of 100mA range (100mA/step)

or 1mA range (1mA/step).

Note: The DMM selected for the measurement must have the

resolution of four digits of the decimal point at least (0.1mA).

Also the input value is to take three digits of decimal point of

effective value (1mA) and run off the rest.

[Step 3.2]

Now input the current value (Min.) measured by the DMM with the

knob and press [ENTER]. During the current value input, use the

[F/C] button to switch over the input of 100mA range (100mA/step)

or 1mA range (1mA/step).

Note:The DMM selected for the measurement must have the

resolution of four digits of the decimal point at least (0.1mA).

Also the input value is to take three digits of decimal point of

effective value (1mA) and run off the rest.

[Step 4]

Switch the Calibration selection window to O.V.P. calibration item

with the knob and press [ENTER] getting into O.V.P calibration

steps.

[Step 4.1]

At present, the window will indicate the progress of OVP calibration.

When the calibration is completed, it will jump out of the window.

[Step 5]
