No. Item name Details
Code The code registered in the layout data appears here.
Name The name of the displayed optional pattern appears here.
Editing screen The source codes of the optional patterns are created, changed and
displayed on this screen.
Compiling screen Messages appear here during the compiling process.
Simulation Window
Caution
If user option pattern data has different planes, such as 1-bit, 8-bit and Window plane, it takes
certain amount of time to display Simulation Window.

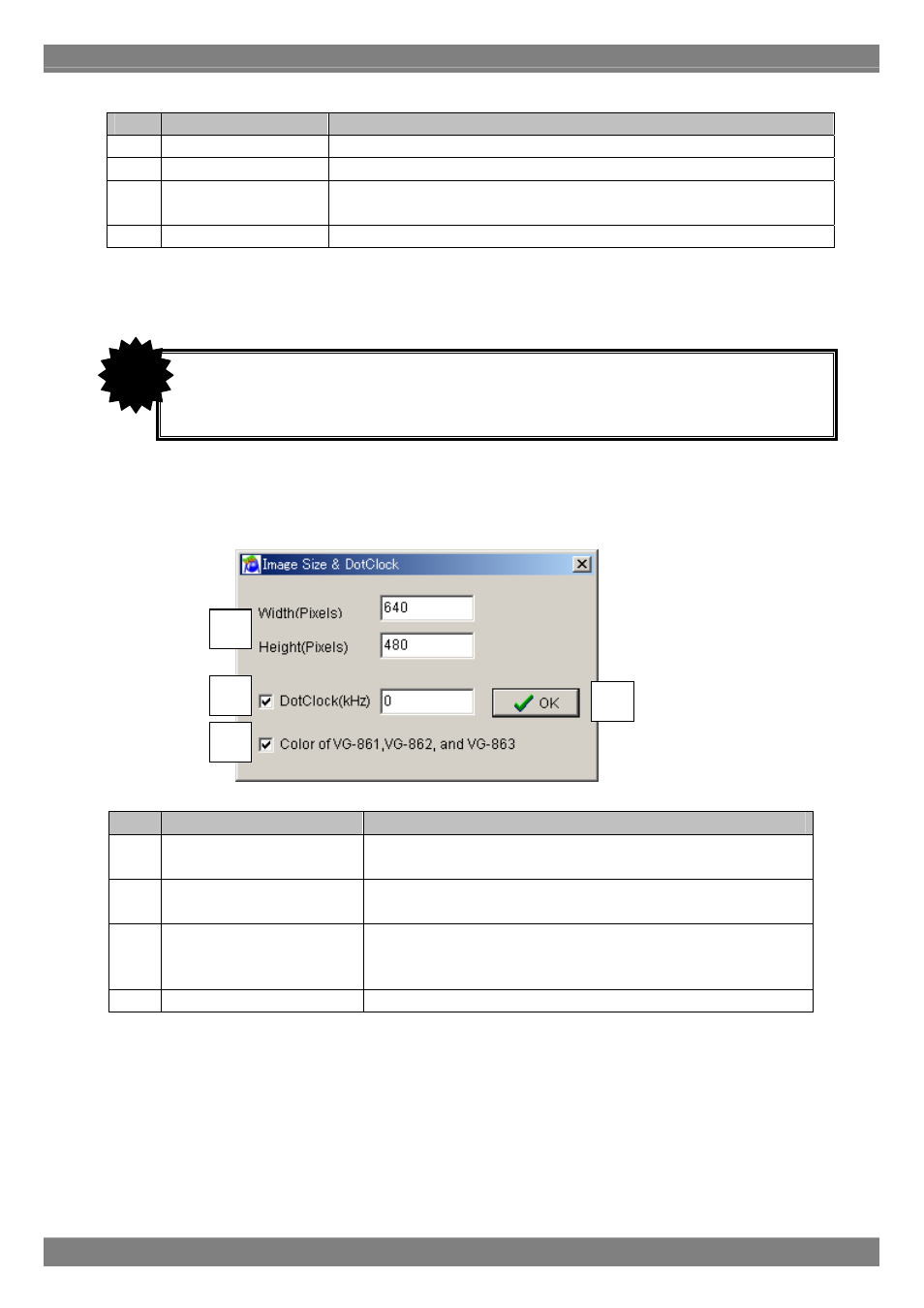

Resolution Input screen
By pressing “Exec” button, the Resolution Input screen is displayed.
No. Item Description
Resolution Input the resolution of the pattern that is simulated. Simulation
screen is displayed according to the input resolution.
Dot Clock value Set the Dot Clock value when using the function “vs_InqStat”.
Set by the unit of kHz.
LUT value for VG-861, 862
and 863
Set LUT value of opt_setcolor_default as the LUT value for VG-861,
862 and 863.
* Please do not use it usually.
OK button Simulation screen is displayed
