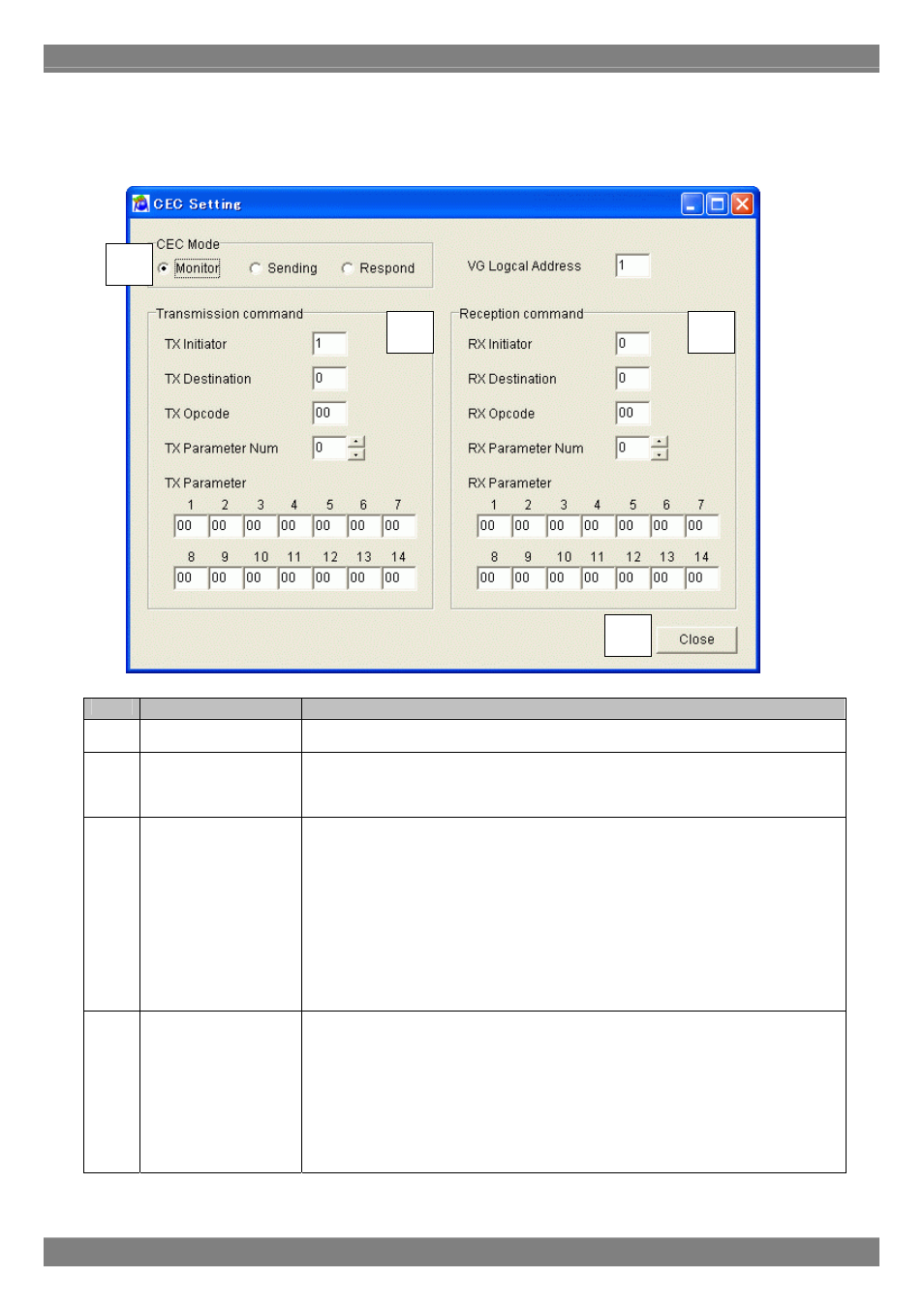

CEC data setting screen
No. Item name Details
CEC Mode setting
Set CEC Mode.
Select among “Monitor”, “Sending” and “Respond”.
VG Logical Address
VG Logical Address
From which device the command is transmitted is set. Set the value from 0 to F.
* VG Logical Address and TX Initiator are adjusted each other. When either
value is changed, the other set value is changed.
Transmission
command is set
TX Initiator
From which device the command is transmitted is set. Set the value from 0 to F.
* VG Logical Address and TX Initiator are adjusted each other. When either
value is changed, the other set value is changed.
TX Destination
To which device the command is transmitted is set. Set the value from 0 to F.
Op Code
Set Op Code of the command. Set the value from 00 to FF.
ParameterNum
Set the number of Parameter. Set the value from 0 to 14.
Parameter
Set the number of Parameter. Set the value from 00 to FF in each Parameter.
Receiving command
is set.
RX Initiator
From which device the command is transmitted is set. Set the value from 0 to F.
RX Destination
To which device the command is transmitted is set. Set the value from 0 to F.
Op Code
Set Op Code of the command. Set the value from 00 to FF.
ParameterNum
Set the number of Parameter. Set the value from 0 to 14.
Parameter
Set the number of Parameter. Set the value from 00 to FF in each Parameter.
