AW Gear Meters LLC-BA - Manual (Page 13)

LLC-BA Batch Unit
Operation and Programming Manual
12
Optional Hard Ground
12-16VAC
300mA.
Hot Center
20
10
14 15 16 17 19 12
BATCH EXTERNAL FUNCTIONS
ACTIVE IN RUN MODE ONLY
BATCH
PROGRESS
OUTPUT
START/
STOP
BATCH
RESET
(mom.)
MODE
CHANGE
TO
DISPENSE
HEAD FLOW TRANSMITTER
7
FLUID FLOW
PROGRAM
MODE
LOW
FLOW
VALVE
110VAC
110VAC
OPTIONAL
HIGH FLOW
VALVE
SIGNAL
3 8 5 4 2 1
BATCH
SELECT
(mom.)
(mom.)
(mom.)
RUN MODE
GROUND
To signal
processing
2
Gnd(-)
3
+15Vdc
From
Pickup
1
Pull-up resistor required for
pickups with sinking outputs LLC Input
Circuit
Freq. Input

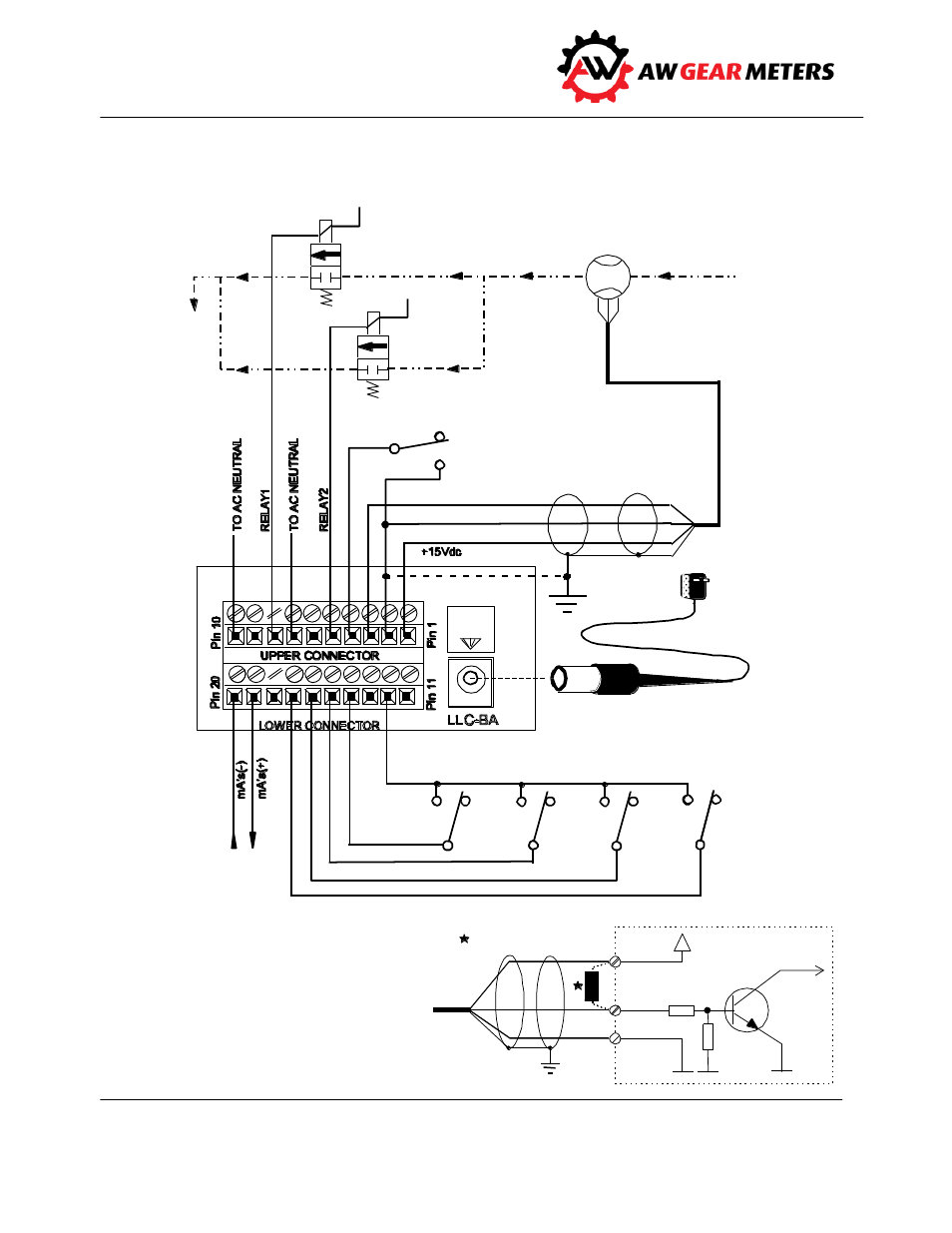

Typical Connections
Input Circuit (detail)
