AST AST47SM Datasheet - Manual (Page 2)

Ordering Information

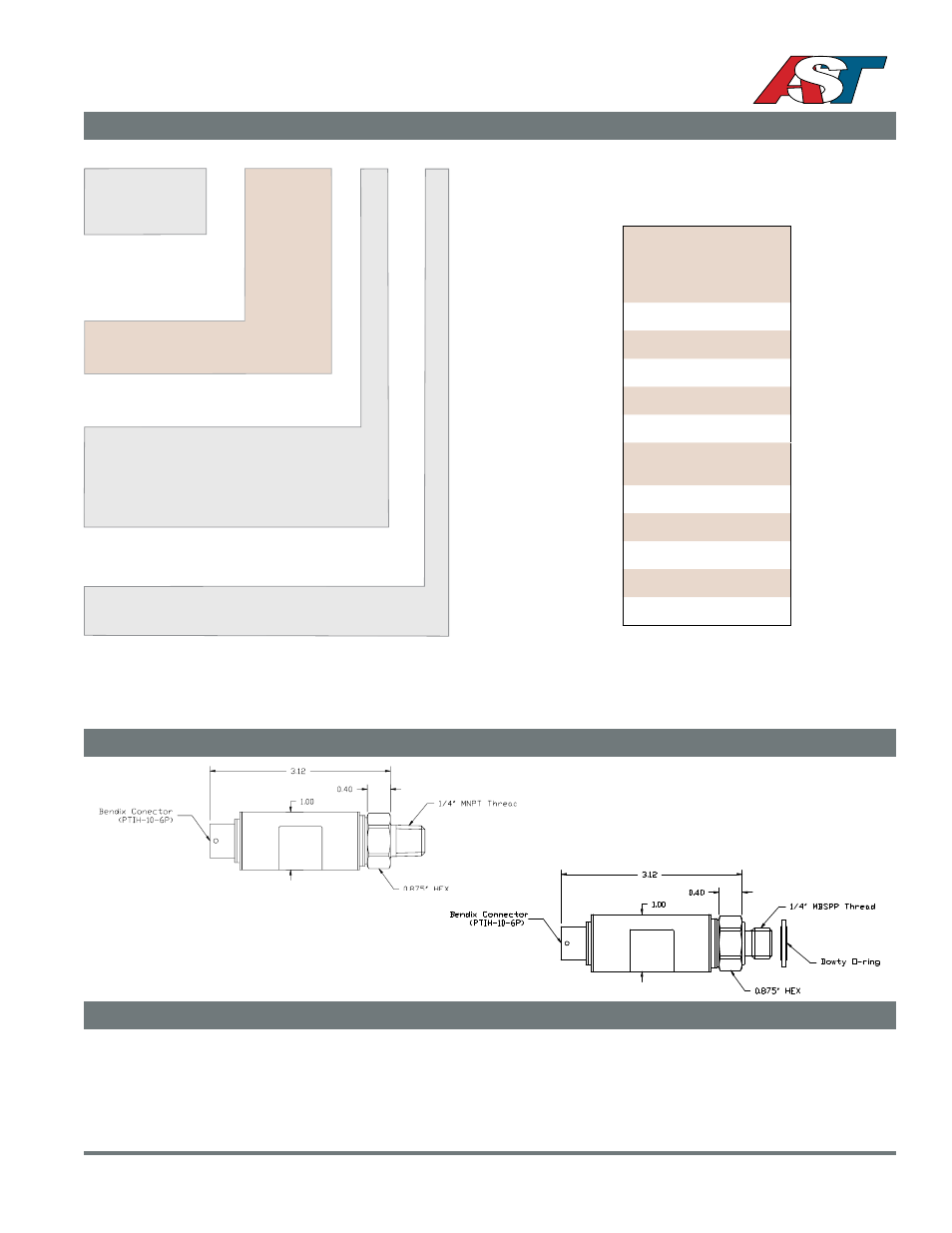

Dimensional Data
Warranty
Workmanship - AST, Inc. pressure transmitters have a limited one-year warranty to the original purchaser. AST, Inc. will replace or repair,
free of charge, any defective transmitter. This warranty does not apply to any units that have been modified; misused, neglected or installed
where the application exceeds published ratings. AST’s sensors are made with pride in New Jersey, USA. If in the area please feel free to
stop by for a visit!
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the transmitter.
TM
www.astsensors.com © 2013 American Sensor Technologies Inc. AST47SM 04/24/13.
All specifications subject to change without notice.
Max
Max
+
Wiring information available at: http://www.astsensors.com/wiring.php
Pressure Ranges*
PSI
Measurment
Pressure
Code
0-1,000 01000
0-2,500 02500
0-5,000 05000
0-7,500 07500
0-10,000 10000
BARG
Measurement
Pressure
Code
0-100 00100
0-210 00210
0-350 00350
0-500 00500
0-700 00700
AST47SM C 00350 B 4 R 0 000
Series Type
Process Connection
A=1/4” NPT Male
C=1/4” BSP Male
D= G1/4 Male
Pressure Range
Insert 5-digit pressure code
Pressure Unit
B=BAR K=kg/cm2 P=PSI
Outputs
2=0-5V (3-Wire)
4=4-20mA (Loop Powered)
5=0-10V (3-Wire)
K= 0-5V (4 Wire)
Electrical +
D=10 ft. R=Bendix 6 Pin
Wetted Material
0=17-4PH
Options
000= No Special Options
* For other ranges, please consult factory.
