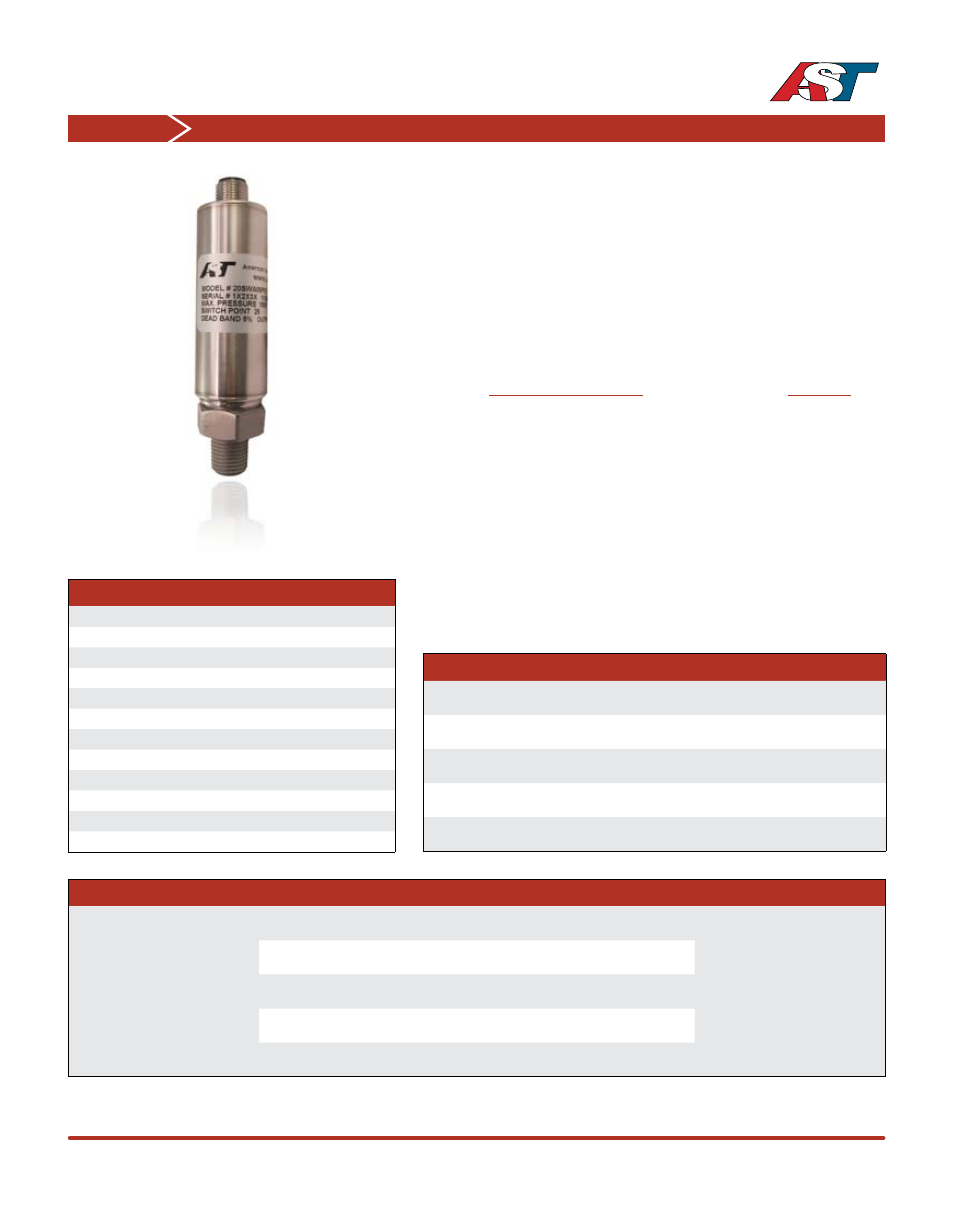

AST AST20SW Datasheet - Manual

TM
American Sensor Technologies
•
450 Clark Dr., Mt. Olive, NJ 07828
•
phone (973) 448-1901
•
fax (973) 448-1905
•
email: [email protected]
Electrical Data
Excitation 10-28VDC
Current Consumption < 10mA
Set Point See Chart
Output Load 1 Amp., Resistive
Reverse Polarity Protection Yes
Performance @ 25°C (77°F)
Error Tolerance <±1.0% BFSL of line pressure
Over range Protection 2X rated line pressure, standard*
Burst Pressure 5X or 60,000PSI of line pressure, whichever is less
Pressure Cycles > 100 million full pressure cycle
*For higher proof pressures, contact factory
Environmental Data
Temperature
Operating
-40 to 85°C (-40 to 185°F)
Storage -50 to 105°C (-58 to 221°F)
Thermal Limits
Compensated Range -20 to 70°C ( -4 to 158°F)
Other
Shock
100G, 11 msec, 1/2 sine
Vibration 10G peak, 20 to 2000Hz
EMI/RFI Protection: Yes
Rating: IP-66
Applications
Hydraulics Controls ƒ
Boilers ƒ
Marine ƒ
Railways ƒ
Benefits
ASIC Compensation ƒ
Superb Temperature Performance ƒ
Wide Operating Temperature Range ƒ
Excellent Accuracy ƒ
High Proof and Burst Pressure ƒ
Factory Sealed ƒ
The Model 20SW is a high accuracy Industrial ASIC Pressure Switch,
designed for use in a variety of applications. Applying digital compensation,
this product offers top performance over a wide temperature range. Utilizing
Krystal Bond Technology™, the sensing element will measure pressure in the
most extreme temperature conditions. Where other sensor technologies will
freeze or boil, the
AST20SW uses a one piece stainless steel sensor to offer continuous
operation. If linearity and repeatability are critical for your application, this
product will exceed your expectations at an affordable price.
AST20SW
Stainless Steel SPDT Pressure Switch
