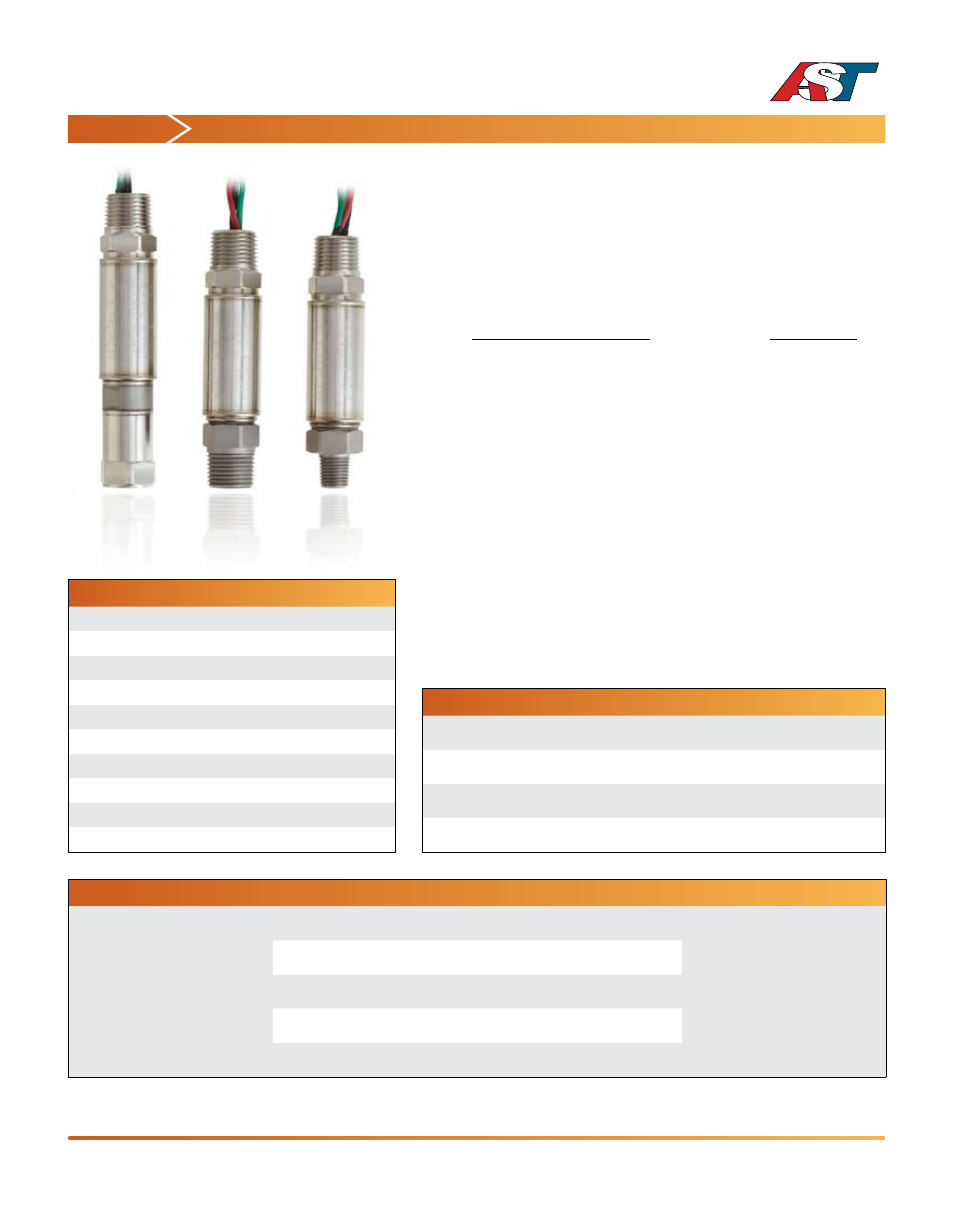

AST AST46SW Datasheet - Manual

TM
American Sensor Technologies
•
450 Clark Dr., Mt. Olive, NJ 07828
•
phone (973) 448-1901
•
fax (973) 448-1905
•
email: [email protected]
Applications
Well Optimization ƒ
Oil and Gas Pipelines ƒ
Drilling Platforms ƒ
CNG / Hydrogen Fill Stations ƒ
Paint Booths ƒ
RTU ƒ
Combustion Controls ƒ
Benefits
CSA30 (UL1203 / FM3615) Class I Div ƒ
1 and Zone 1 Group IIC Explosionproof -
Groups A, B, C, D
ANSI 12.27.08-1 Single Seal Approved ƒ
ASIC Compensation ƒ
Superb Temperature Performance ƒ
Wide Operating Temperature ƒ
Excellent Accuracy ƒ
High Proof and Burst Pressure ƒ
Factory Sealed ƒ
The Model 46SW is a high accuracy Explosion-proof Pressure Switch, designed for use in
a variety of applications. Applying digital compensation, this product offers top performance
over a wide temperature range. Utilizing Krystal Bond Technology™, the sensing element
will measure pressure in the most extreme temperature conditions. Where other sensor
technologies will freeze or boil, the AST46SW uses a one piece stainless steel sensor to
offer continuous operation. If linearity and repeatability are critical for your application, this
product will exceed your expectations at an affordable price.
Explosion-Proof
AST46SW SPDT Solid State Pressure Switch
*For higher proof pressures, contact factory
Electrical Data
Excitation 10-28VDC
Current Consumption <10mA
Set Point See Chart on page 2
Output Load 1 Amp., Resistive
Reverse Polarity Protection Yes
Environmental Data
Temperature
Operating
-40 to 85°C (-40 to 185°F)
Storage -50 to 105°C (-58 to 221°F)
Thermal Limits
Compensated Range
-20 to 70°C ( -4 to 158°F)
Other
Shock
100G, 11 msec, 1/2 sine
Vibration 10G peak, 20 to 2000 Hz.
EMI/RFI Protection: Yes
Rating: IP-66
Performance @ 25°C (77°F)
Error Tolerance <±1.0% BFSL of line pressure
Over range Protection 2X rated line pressure, standard*
Burst Pressure 5X or 60,000PSI of line pressure, whichever is less
Pressure Cycles > 100 million full pressure cycle
