Specifications and Dimensions
39 F232084
Designs 1-4

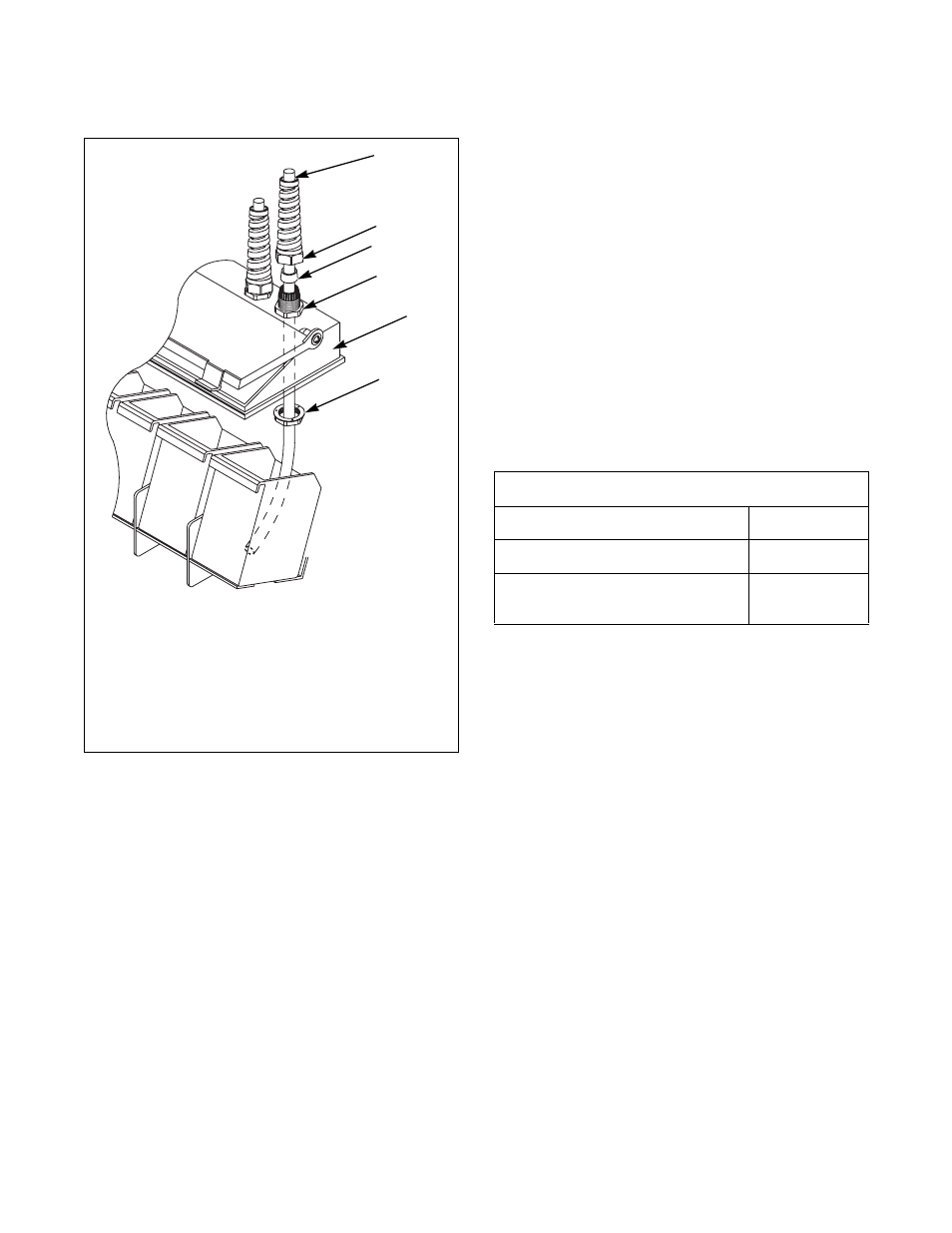

Figure 21
Connecting External Liquid Supplies
to the Washer-Extractor
1. Remove plugs from base. Refer to Figure 21.
Plugs are assembled inside the tubing ring.
2. Install strain reliefs, included in the seal nut.
3. Insert tubes through base. Do not remove cups.
Tube should extend into the plastic cup, with the
exception of the softener tube, which should be
routed to the outside of the cup.
4. Tighten the seal nut to prevent tubing from
escaping the assembly.
5. Before operating machine, confirm lid is
completely closed.
Do not attempt to make chemical injection electrical
connections to points other than those provided
specifically for that purpose by the factory.
P041I
1 Tubing from Pump
2 Seal Nut
3 Tubing Ring
4 Base
5 Lid
6 Nut
P041I
1
2
3
4
5
6
Chemical Injection Supply System
Number of dry supply compartments 5
Number of liquid supply connections 5
Liquid supply connection size,
in (mm) 0.63 (15.9)
