Alliance Laundry Systems UW35PV - Manual (Page 24)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

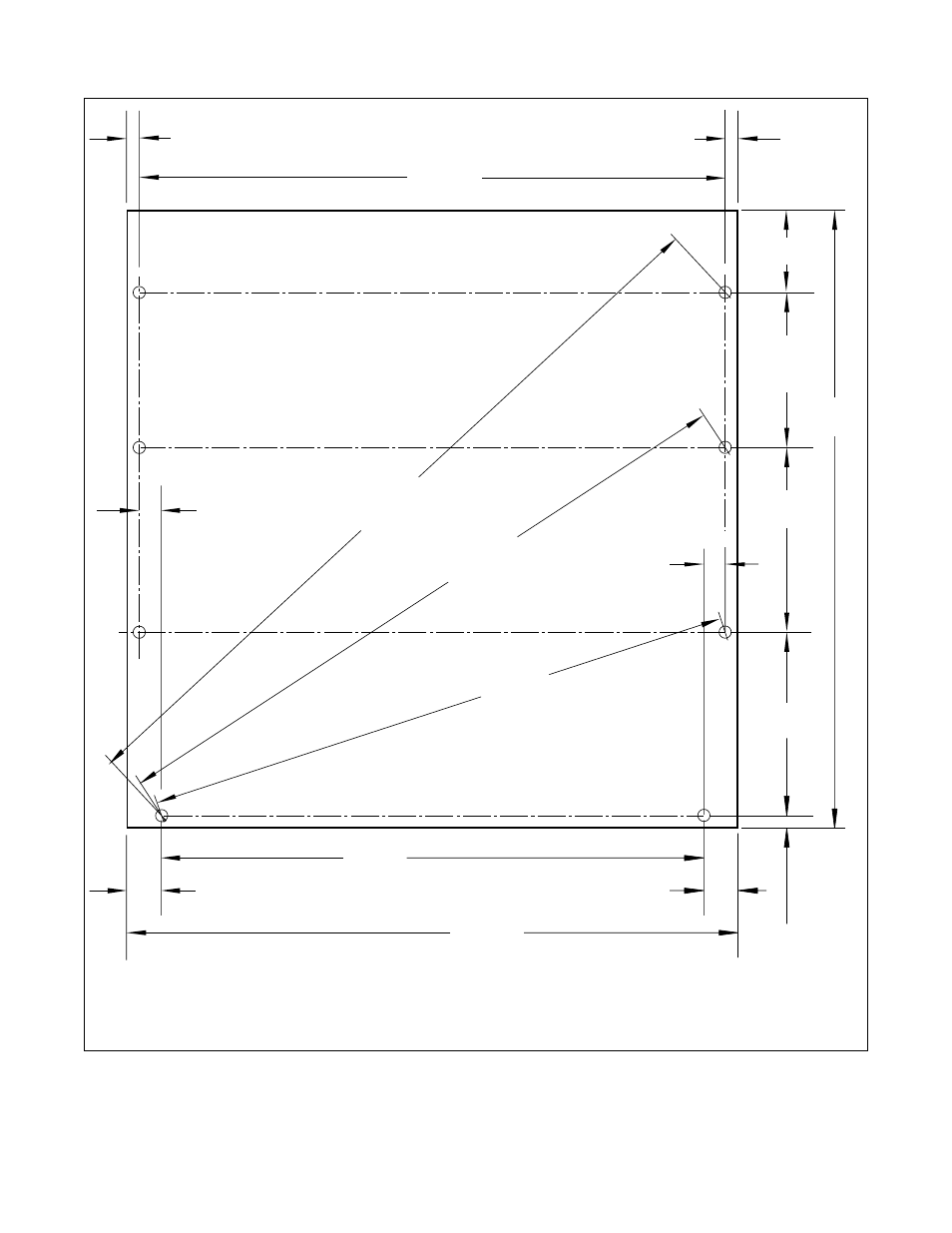

Specifications and Dimensions
F232084 22
PHM632N
Figure 10
0.75 in.
(19 mm)
39.63 in.
(1008 mm)
0.75 in.
(19 mm)
6.75 in.
(171 mm)
9 in.
(229 mm)
13.63 in.
(346 mm)
13.63 in.
(346 mm)
43.75 in.
(1111 mm)
0.75 in.
(19 mm)
3 in.
(76 mm)
3 in.
(76 mm)
41.12 in.
(1045 mm)
35.12 in.
(892 mm)
52.19 in.
(1326 mm)
46.31 in.
(1176 mm)
39.75 in.
(1010 mm)
2.25 in.
(57 mm)
2.25 in.
(57 mm)
UW80PV / UW100PV
FRONT OF MACHINE
