Specifications and Dimensions
35 F232084
Chemical Injection Supply System Undiluted chemical dripping can damage the washer-
extractor. Therefore, all chemical supply dispenser
pumps should be mounted below the washer’s
injection point. All dispenser tubing should also run
below the injection point. Loops do not prevent drips if
these instructions are not followed. Failure to follow
these instructions could damage the machine and void

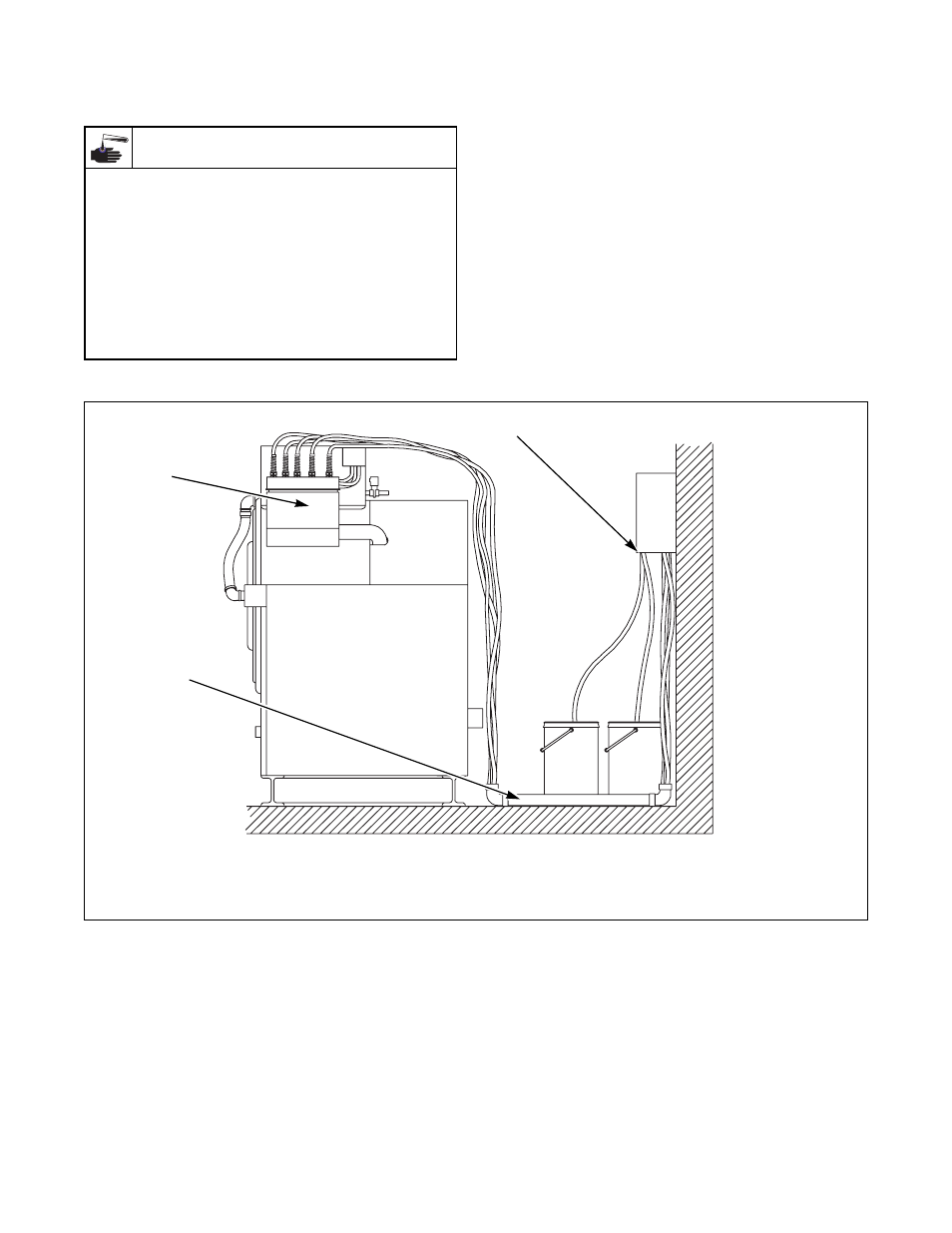

the warranty. Figure 18 shows a typical Chemical
Injection Supply System.
Wear eye and hand protection when
handling chemicals; always avoid direct
contact with raw chemicals. Read the
manufacturer’s directions for accidental
contact before handling chemicals.
Ensure an eye-rinse facility and an
emergency shower are within easy reach.
Check at regular intervals for chemical
leaks.
SW016
WARNING
PHM585N
1 Injection Point 3 PVC Pipe
2 Chemical Dispenser Pump Outlet
Figure 18
1
2
3
