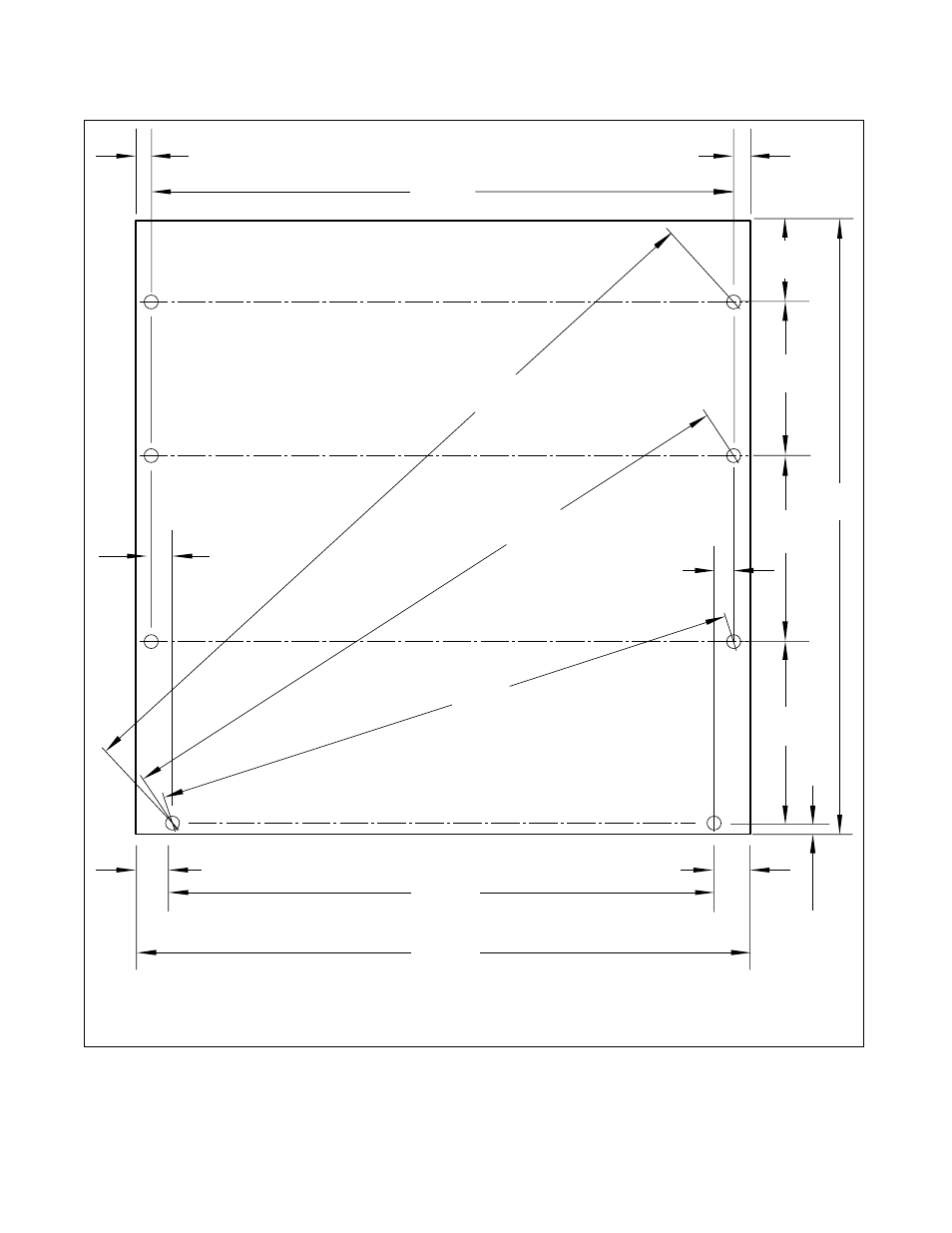

Specifications and Dimensions
21 F232084
PHM631N
Figure 9
1.25 in.
(32 mm)
2 in.
(51 mm)
44.81 in.
(1138 mm)
39.25 in.
(997 mm)
34.56 in.
(878 mm)
34.12 in.
(867 mm)
31.63 in.
(803 mm)
35.63 in.
(905 mm)
2 in.
(51 mm)
9 in.
(229 mm)
36 in.
(914 mm)
4.81 in.
(122 mm)
1.25 in.
(32 mm)
0.75 in.
(19 mm)
10.75 in.
(273 mm)
10.69 in.
(271 mm)
0.75 in.
(19 mm)
0.75 in.
(19 mm)
UW60PV
FRONT OF MACHINE
