63
M
ANAGEMENT
F
UNCTIONS
T
EST
D
ISPENSE
A
CCESS
I
NSTRUCTIONS
:
1. From the D
IAGNOSTICS
screen, select the C
ASH
D
ISPENSER
option by pressing number <1> on the keypad.
2. From the C
ASH
D
ISPENSER
screen, select the T
EST
D
ISPENSE
option by pressing number <3> on the
keypad.
D
ESCRIPTION
:
The T
EST
D
ISPENSE
command allows the user to dispense note(s) from each installed and operational cassette
into the reject cassette. This test exercises the dispenser mechanism without sending notes to the exit.
The L
OCK
A
LL
C
ASSETTES
function will automatically be performed first to ensure that all cassettes are locked.
Next, the cassettes’ information will be retrieved. The Test Dispense can only be exercised on the cassettes
installed.

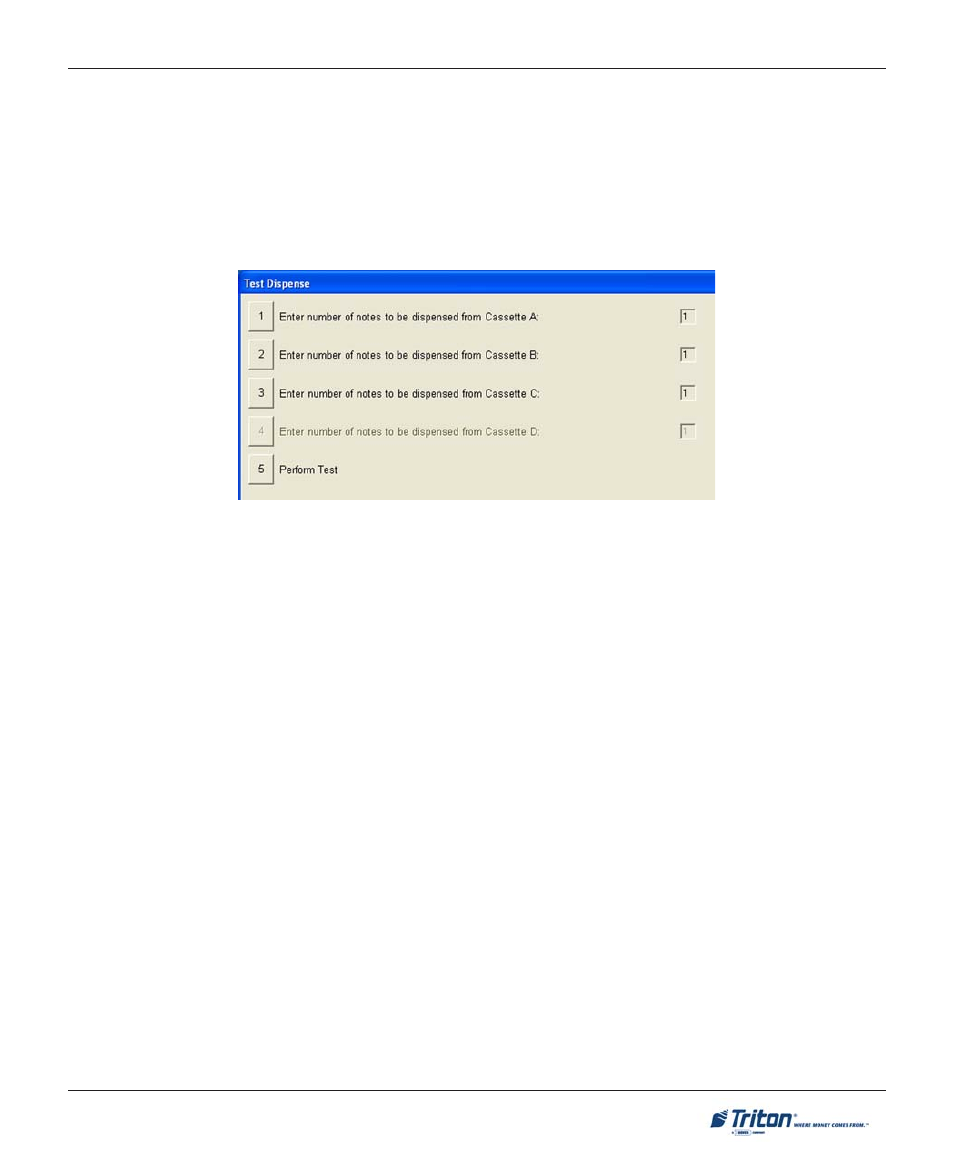

Once the cassette information is retrieved, the user will be prompted to enter the number of note(s) to be
dispensed from cassette A through D, if applicable. The values for the number of notes are 1 to 5. If the user
enters a number greater than 5, it will automatically default to 5.
Press the number <1> on the keypad and enter the desired value. Press . Repeat for the remaining
cassettes that are available.
Next, press the number <5> on the keypad to P
ERFORM
T
EST
. The dispenser will dispense the note(s) from the
cassette(s) into the reject cassette. The progress bar will be displayed while the operation is being performed.
When the test is completed, the user will be prompted to either perform another test or exit and go back to the
Cash Dispenser menu.
