2. To remove the selected note cassette, grasp the cassette handle and push the green release button .
Pull the cassette out slightly. Place one hand underneath to support the cassette as you slide it
completely out of the unit.
Figure 3-3. Release button.
O
PENING
N
OTE
C
ASSETTE
:
1. Place the cassette on a table or other flat surface. Open the cassette by sliding the green latch lever to
the right and lifting the lid.
To perform a cash replenishment, enter Management Functions > Terminal Settlement Functions > Re-
plenish Cassette(s). Follow the prompts to replenish cassette(s).
R
EMOVING
N
OTE
C
ASSETTE
:
1. Open the electronic lock on the security container door to gain access to the dispensing mechanism.

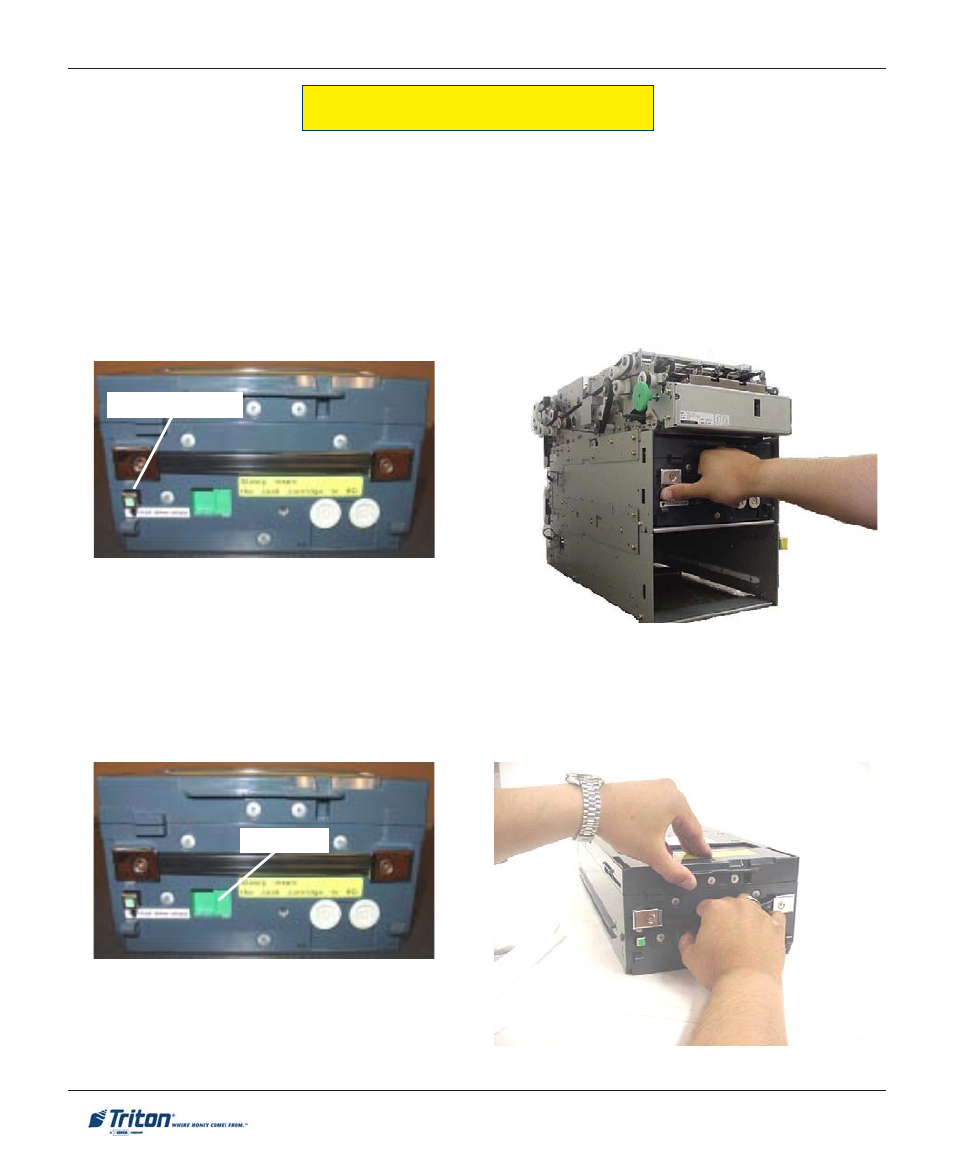

Figure 3-4. Pull note cassette.
Release button
Lid latch
Figure 3-5. Latch lever.
Figure 3-6. Open cassette.
R
EPLENISHING
C
ASSETTE
(
