153
M
ANAGEMENT
F
UNCTIONS
H
OST
C
OMMUNICATION
P
ROTOCOL
S
ETTINGS
(SNA)
A
CCESS
I
NSTRUCTIONS
:
1. From the M
AIN
M
ENU
screen, select the T
ERMINAL
C
ONFIGURATION
option by pressing number <6> on
the keypad.
2. From the T
ERMINAL
C
ONFIGURATION
screen, select the C
OMMUNICATIONS
option by pressing number <8>
on the keypad.
3. From the C
OMMUNICATIONS
screen, select the H
OST
C
OMMUNICATION
P
ROTOCOL
S
ETTINGS
option by
pressing number <3> on the keypad.
4. Press number <0> to toggle between TCP/IP and SNA.
D
ESCRIPTION
:
The H
OST
C
OMMUNICATION
P
ROTOCOL
S
ETTINGS
function allows user to select (toggle) TCP/IP or SNA commu-
nications protocol.

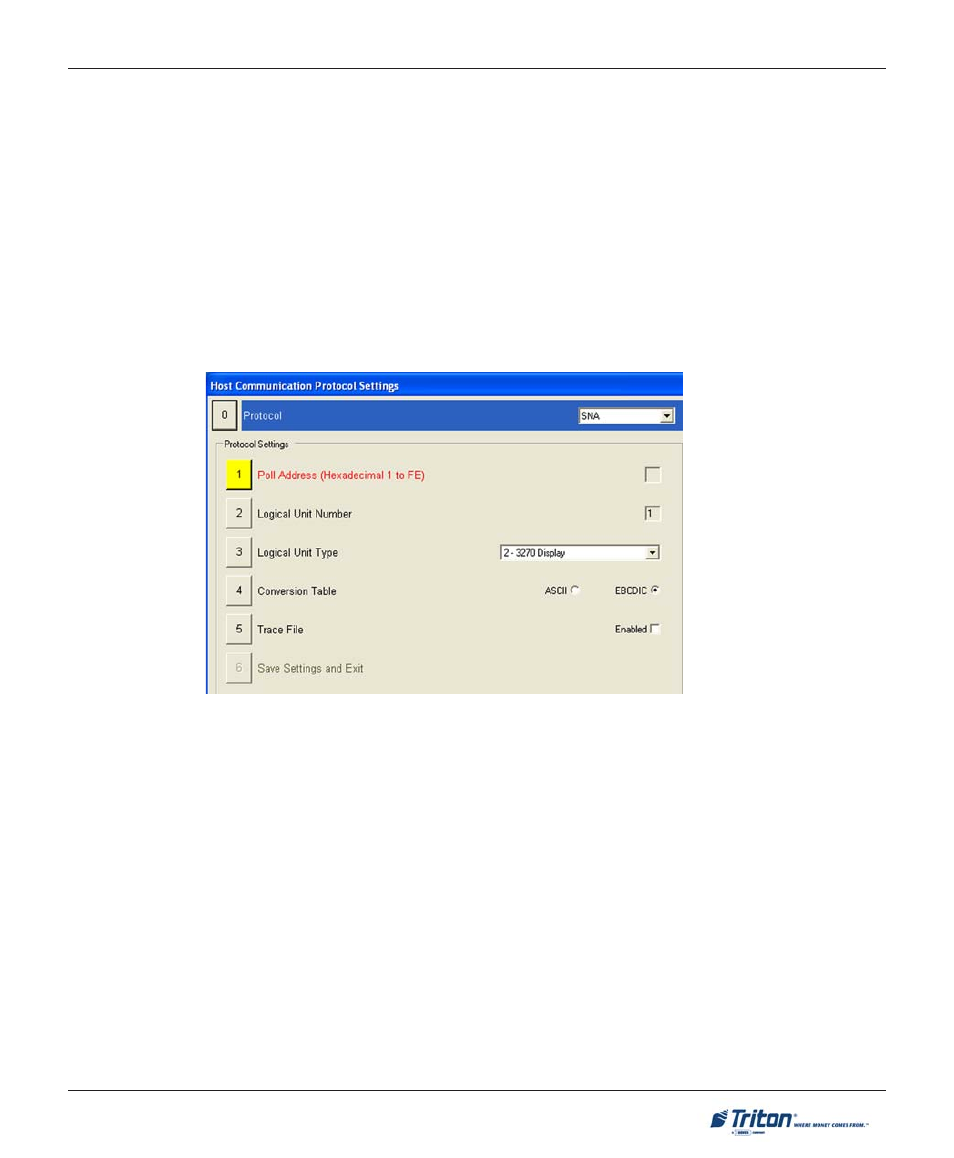

When the SNA protocol is selected, the following parameters can be specified:
1. P
OLL
A
DDRESS
(H
EXIDECIMAL
1
TO
FE). This function used to specify the poll address defined by the
host.
2. L
OGICAL
U
NIT
N
UMBER
. Used to specify the logical control and unit number defined by the host.
3. L
OGICAL
U
NIT
T
YPE
. Used to specify the logical unit type. The options are:
!
0 - LUO Protocol
! 1 - 3270 Printer
! ! ! ! ! 2 - 3270 Display (default)
! ! ! ! ! 3 - 3270 Printer
! ! ! ! ! 4 - 5250 Printer
! ! ! ! ! 7 - 5250 Display
